Mopar K6862677 - COVER TIE DOWN BUCKLE INSTALLATION; Install Tie-Down Buckle Post; Attach Tie-Down Buckle; COVER INSTALLATION

7
www.mopar.com

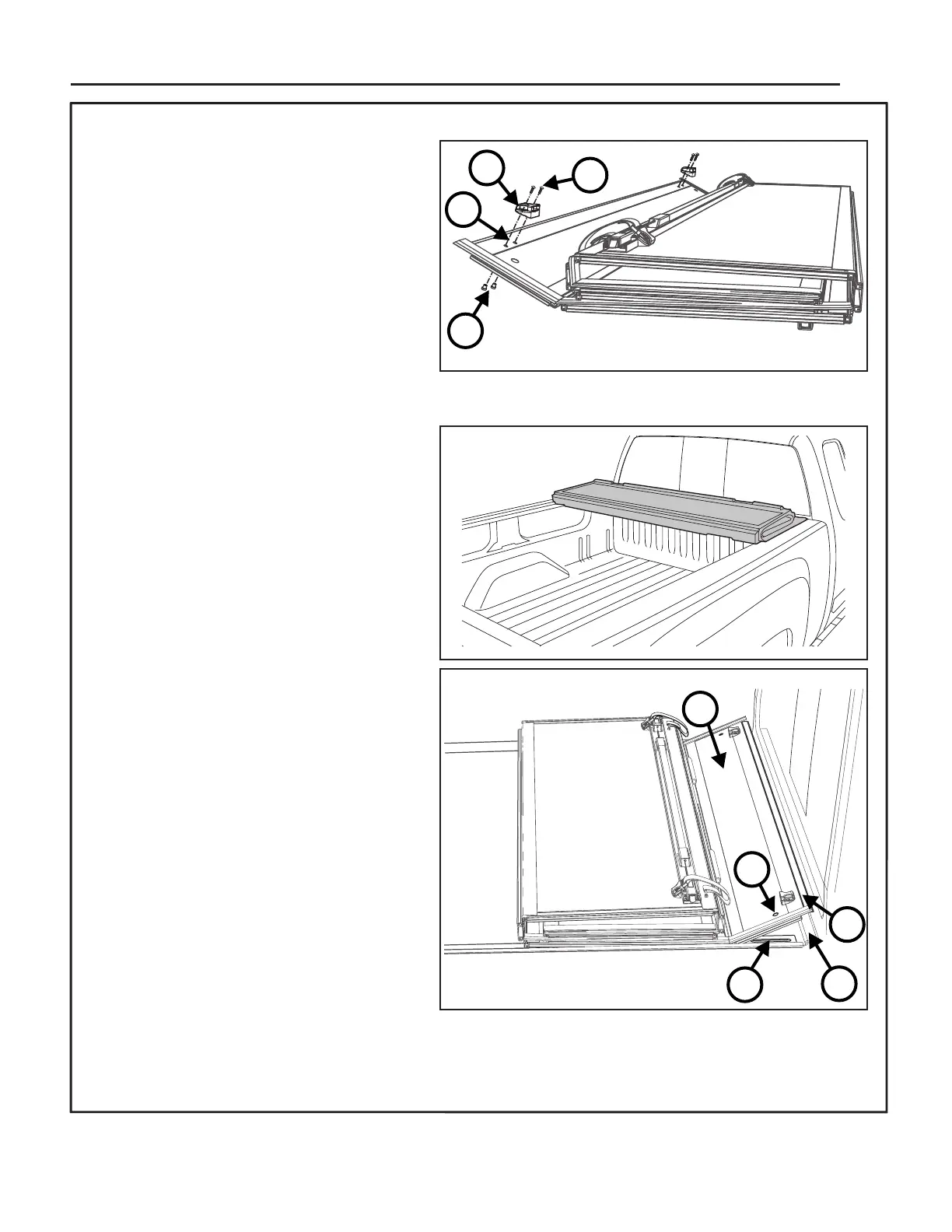

Push a threaded post (1) up from
the bottom into the pre-drilled hole (2)
in the cab panel. Place the
buckle (3) over the holes and with a
screw driver thread the screw (4)
through the buckle and into the post.
Securely hand tighten only, DO NOT use
a screw gun.
Repeat on both sides.
5. COVER TIE DOWN BUCKLE INSTALLATION- Standard and RamBox bed installations
1
2
3
4
Place the folded cover on the mounted
rails at the front/cab end of the bed.
6. COVER INSTALLATION- Standard and RamBox bed installations
3
2
4
1
5
The smaller front/cab panel (1) faces
forward. Align the cab panel seal (2)
to sit on top of the bed bulkhead (3)
and that it is setting squarely on
the bed rails. Align the cab panel holes (4)
with the slotted rail brackets (5).
5.1
6.1
6.2
K6862677
June 20, 2019
