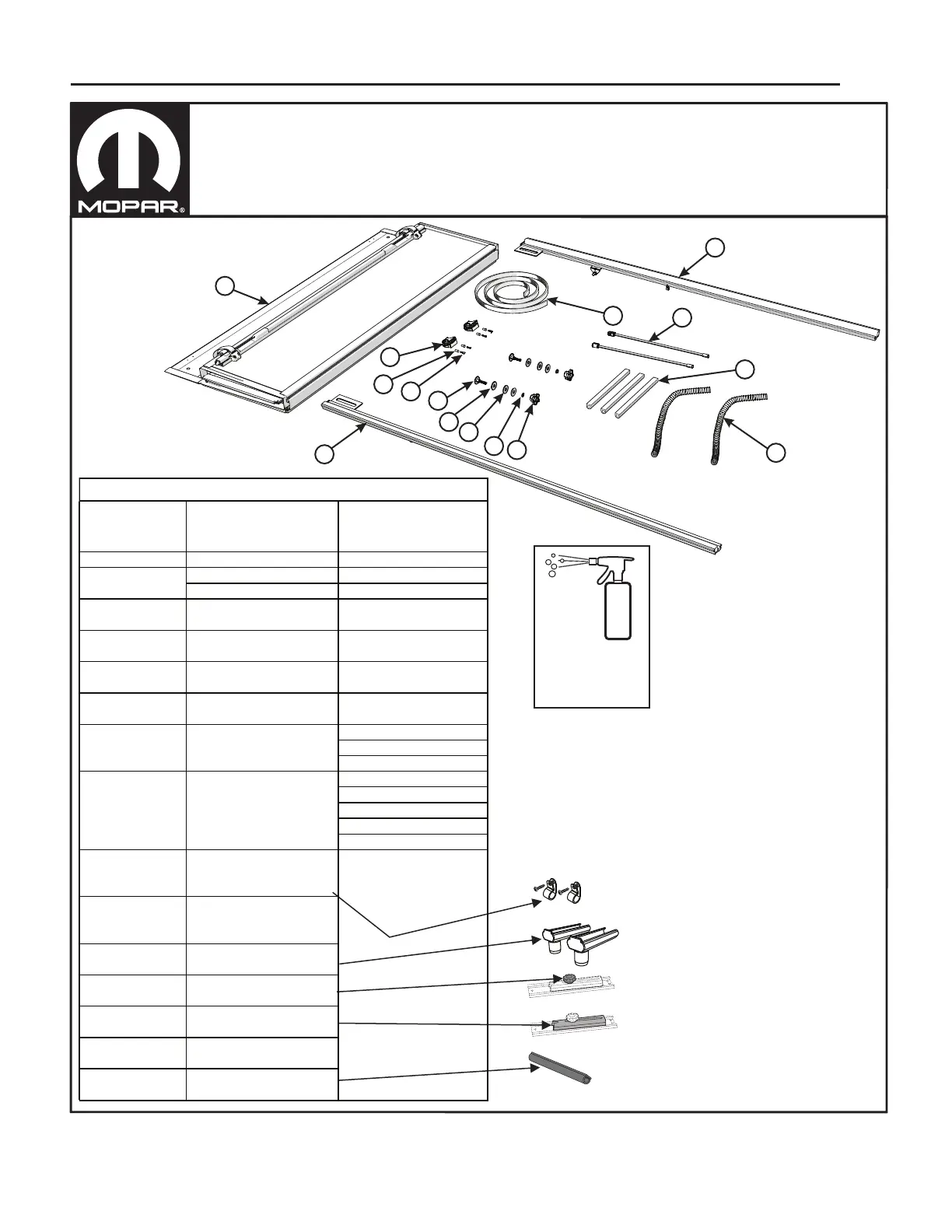

Hard Folding Truck Bed Cover
Kit Contents- Ram Box bed install
10
11
13
14
15
16
6
8
K6862677
NOTE:
A soapy water
solution will help
with assembly in
Steps 4.2 & 7.3.
Part Number Description
Callout
(REF)
68400702AA Hard Folding Cover Assembly 1
RH (passenger side) Rail 2
LH (driver side) Rail 3
326A0004
Bulkhead Seal
(1) 65" Seal
5
326A0008
Cab Bumper (3)
Replacement Bumpers (4)
6
311A0004
Drain Hose
(2) Hoses
7
281B0001
Prop Rod (2)
Replacement part (1)
8
9
10
11
12
13
14
15
16
356B0006
Prop Rod Replacement Kit
(2) Clip Assemblies
Clips and Screws
326A0010
Rail Seal - Truck Bed Kit
(2) 8.5' Seals
Alcohol Prep
356A0011
Rail Drain Caps
(2) Caps
356B0005
Slide Lock Knob
(2) Knobs
356A0013
Slide Lock - Prop Rod
(2) Slider Locks
326A0011
Side Seal - Cover
(2) 8.5' Seals
326A0013
Panel Bumper - Cover
(2) Bumpers
82215225 Ram w/RamBox 5'7" Bed
Not ca l l ed out a bove
Individual compone nts tha t ca n
be repl a ced on cover or si de ra il s
wi thout needing to repla ce ful l
as s embly
68400705AA
234B0027
Top Side Buckle Kit
(2) Assemblies
254B0001
Elevator Bolt Kit
(2) Assemblies
