Operation 2017-02-24
The settable numbers are any of the table numbers (00 to 14).
To not save the settings, press the Occlusion key for a short time or turn off the unit.

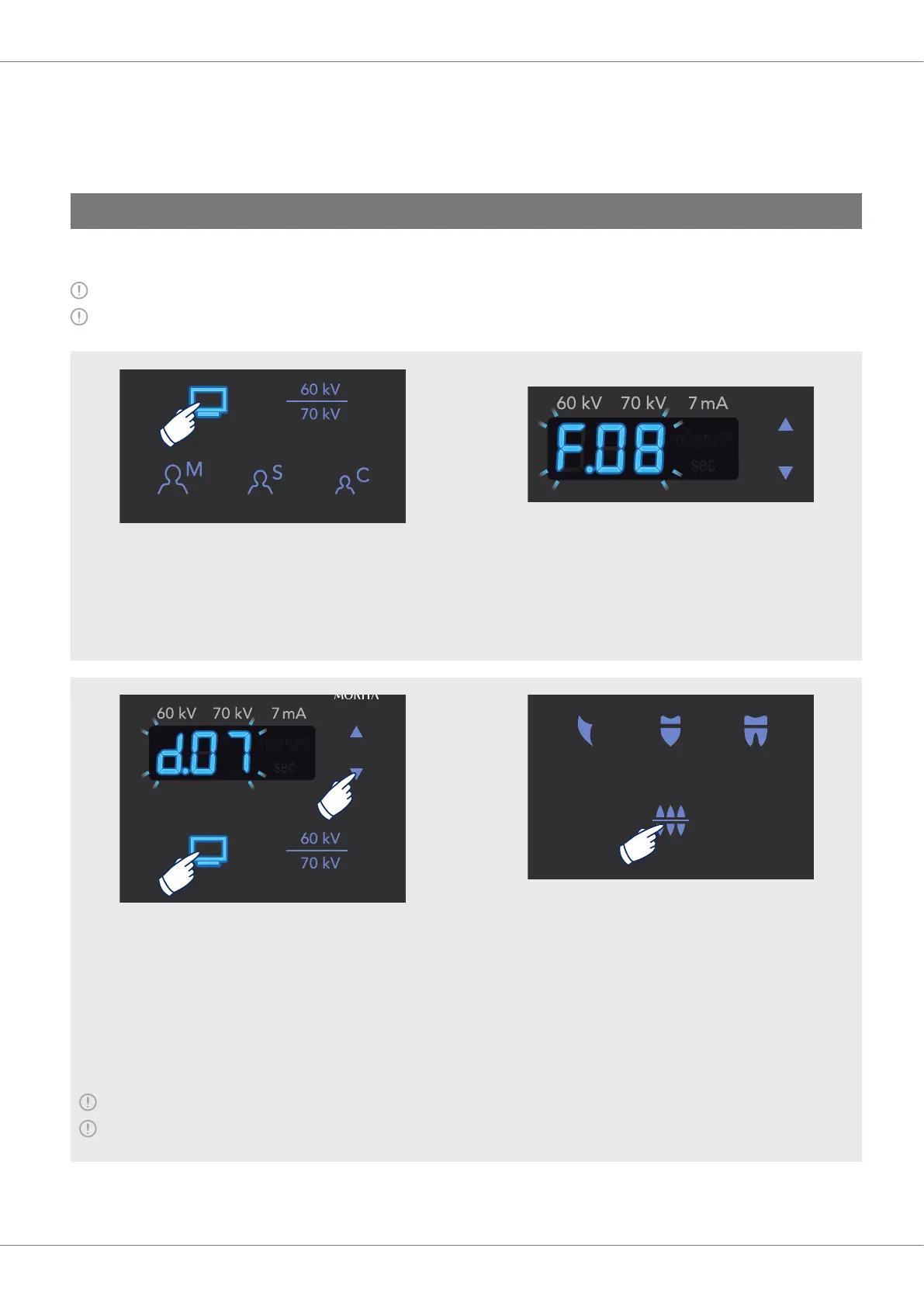

Setting the timer table
To switch to the timer table setting mode, press and hold the Film/Digital key (approximately ve seconds) until you hear
beeps.
The timer display will show “F. 08” * blinking (*Default for the standard cone. For the long cone, “F. 11” is shown.)
*For the timer table data, refer to the next page.
To switch to “F” (lm) or “d” (digital), press the Film/Digital key.
To switch the table number (00 to 14) to set a timer table, press the up or down key.
* For recommended values, refer to page 21.
* “F. 08” is set as the default timer table for lm radiography (sensitivity E), and “d. 07” is set as the default timer table for
digital radiography.
To save all settings and exit the timer table setting mode, press and hold the Occlusion key (approximately 5 seconds).
* Hold the key until you hear beeps.
Hold (approx. 5 seconds)
Hold (approx. 5 seconds)
Before making settings, check that the Ready indicator is lit.
No X-rays can be emitted when the unit is in the setting mode.
