Chapter 1 Introduction

This manual covers the installation procedures for ASTRO XTL 2500 mobile radios with M5 control

heads and accessories required to complete the radio system. The radio system consists of a control

head, radio, antenna, microphone, speaker, cabling, and accessories.

1.1 Mobile Radio Description

1.1.1 Dimensions

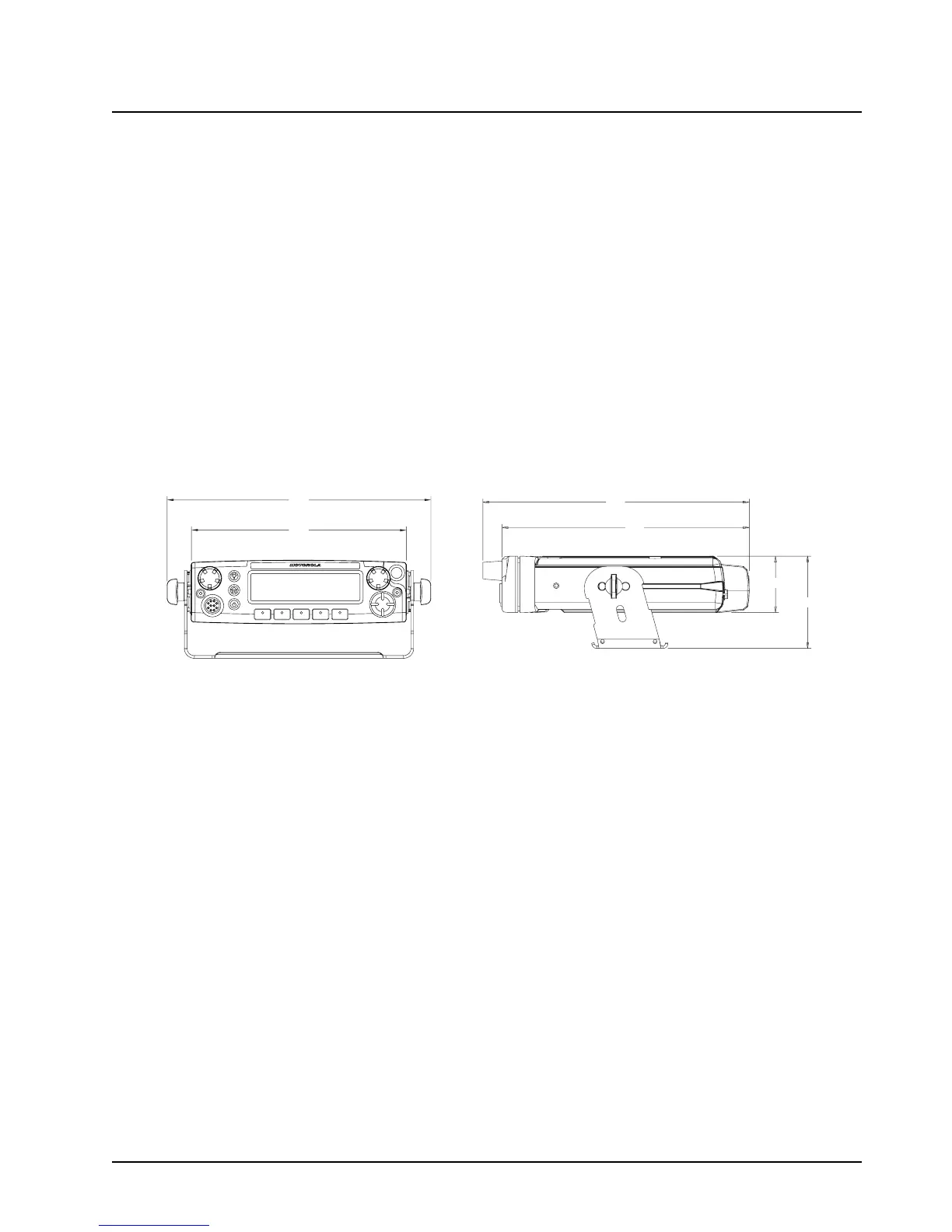

Figure 1-1 and Figure 1-2 show the basic dimensions of the dash mount transceiver trunnion XTL

2500 radio. The transceiver portion of a remote mount XTL 2500 is sized similarly.

When installing the radio, make sure to plan the installation carefully and leave additional room in the

rear of the radio for cabling and accessory connections; in the front of the radio for access, controls,

and cabling (if remote mount); and to the sides of the radio so that you may access and install the

trunnion wing screws.

NOTE: The rear accessory connector adds 0.75 in. to the overall length.

Figure 1-1. Front View of Dash Mount

Transceiver Trunnion

Figure 1-2. Side View of Dash Mount Transceiver

Trunnion

8.5"

7.1"

XTL 2500

9.6"

9.1"

3.5"
