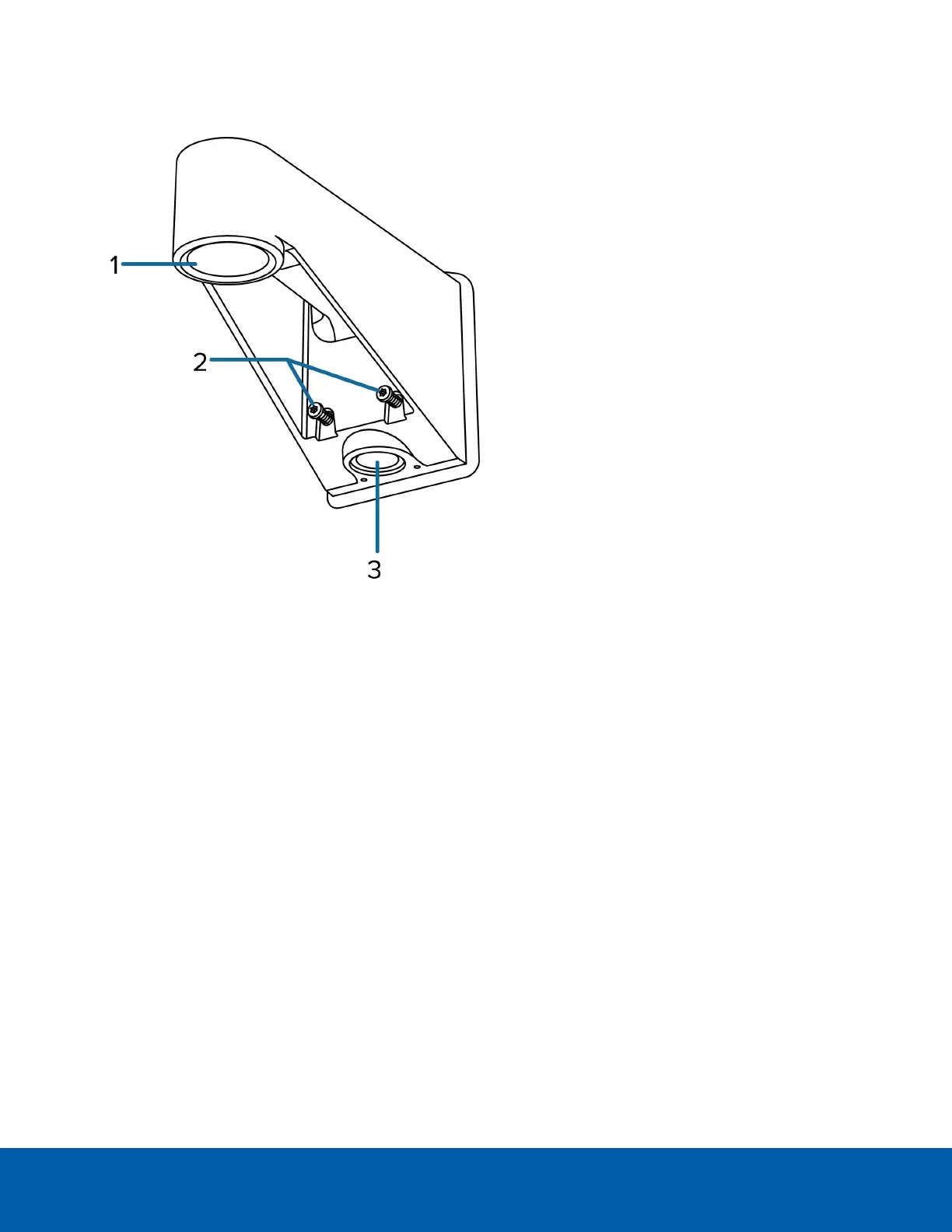

Pendant Wall Mount View
1.
1-1/2” NPS thread mount
Female NPS thread mount for pendant camera installations.
2.
Pendant wall mount screws
Screws for securing the pendant wall mount to the mounting bracket.
3.
NPT pipe entry hole
A 3/4 NPT threaded hole for NPT pipe conduits.
Pendant Wall Mount View 11
