a. If the Ethernet cable is uncrimped, push the cable through the grommet.
b. If the Ethernet cable is already crimped, place the grommet piercing cap on the Ethernet
connector then push the cable through the grommet.

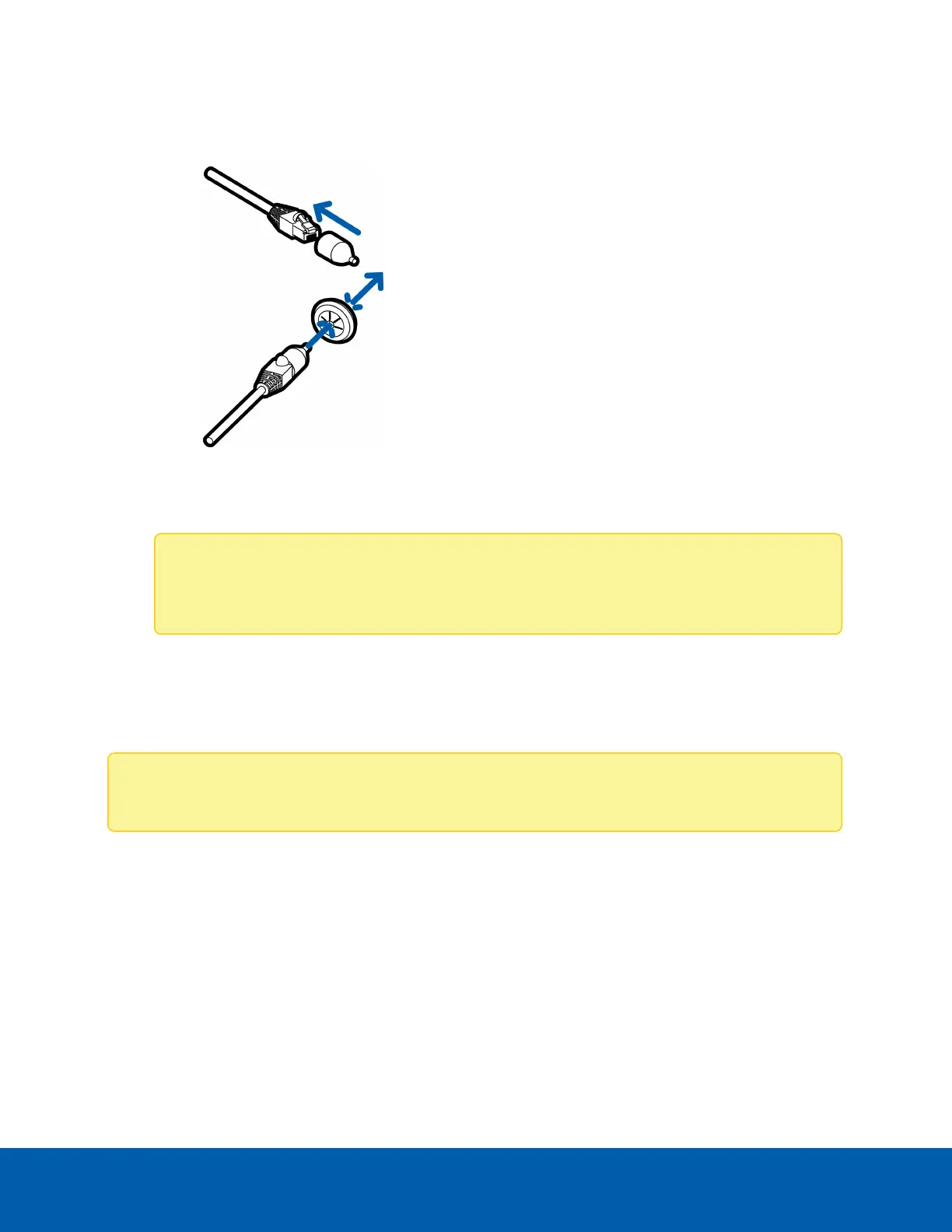

Ensure that the orientation of the cable and grommet matches the one shown in the image.
3. Push any other required cables through the grommet.
Note: If you pull multiple cables through the sealing grommet, apply silicone sealant to seal
any gaps in the grommet.
Using the In-Ceiling Mounting Adapter
If the dome camera needs to be installed into a ceiling, you can discard the surface mount adapter that is
provided with the dome camera and use the in-ceiling mounting adapter instead (H4SL-MT-DCIL).
Note: The maximum supported ceiling thickness is 32 mm (1.25").
Using the In-Ceiling Mounting Adapter 23
