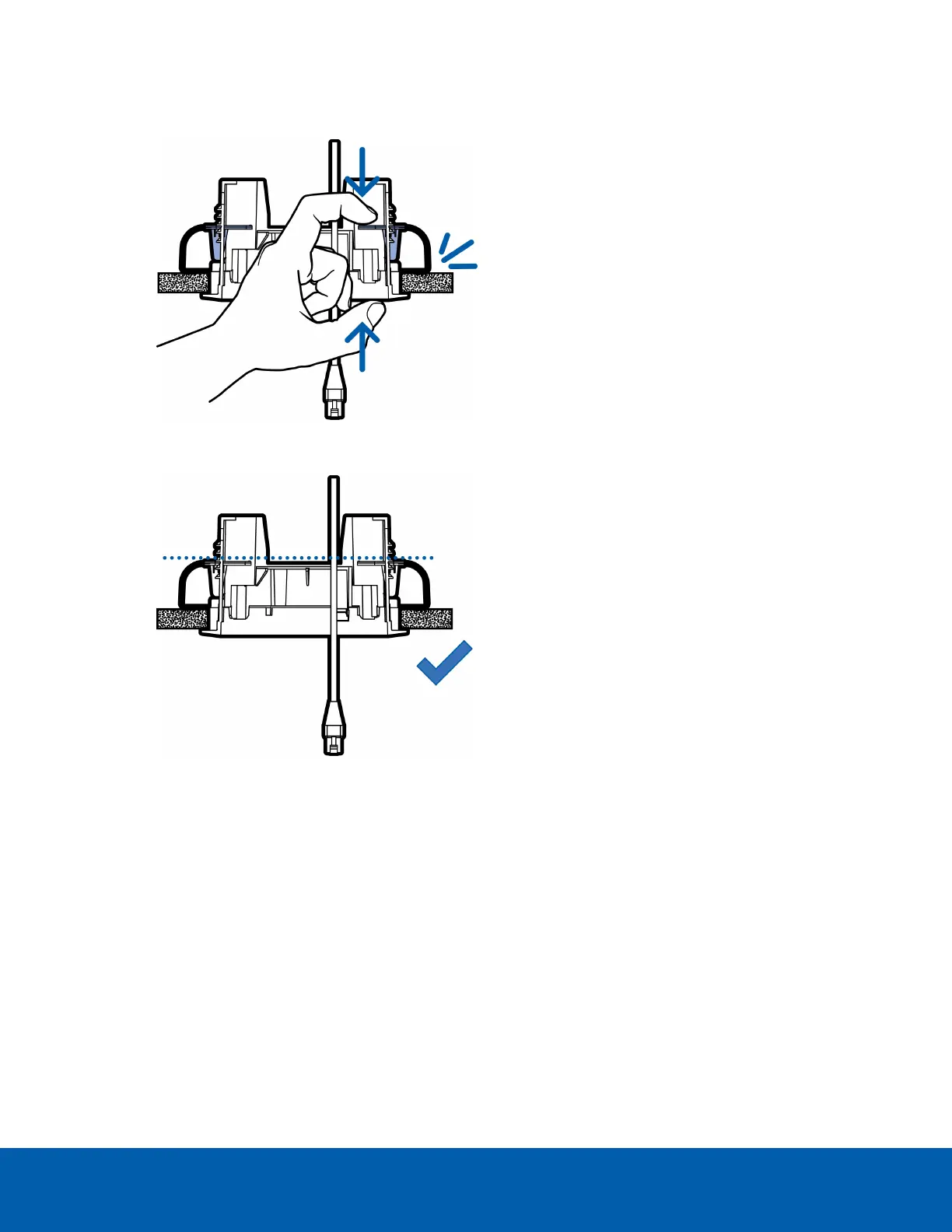

5. With your thumb on the outside edge of the mounting adapter and your forefinger on one of the
orange clamp handles, pinch the clamp down until the clamp is secured.
6. Repeat the previous step on the other side. Make sure both clamps are level and horizontal.
Installing the Camera Base to the Mounting Adapter
After you install the mounting adapter, mount the camera base to the adapter.
Installing the Camera Base to the Mounting Adapter 26
