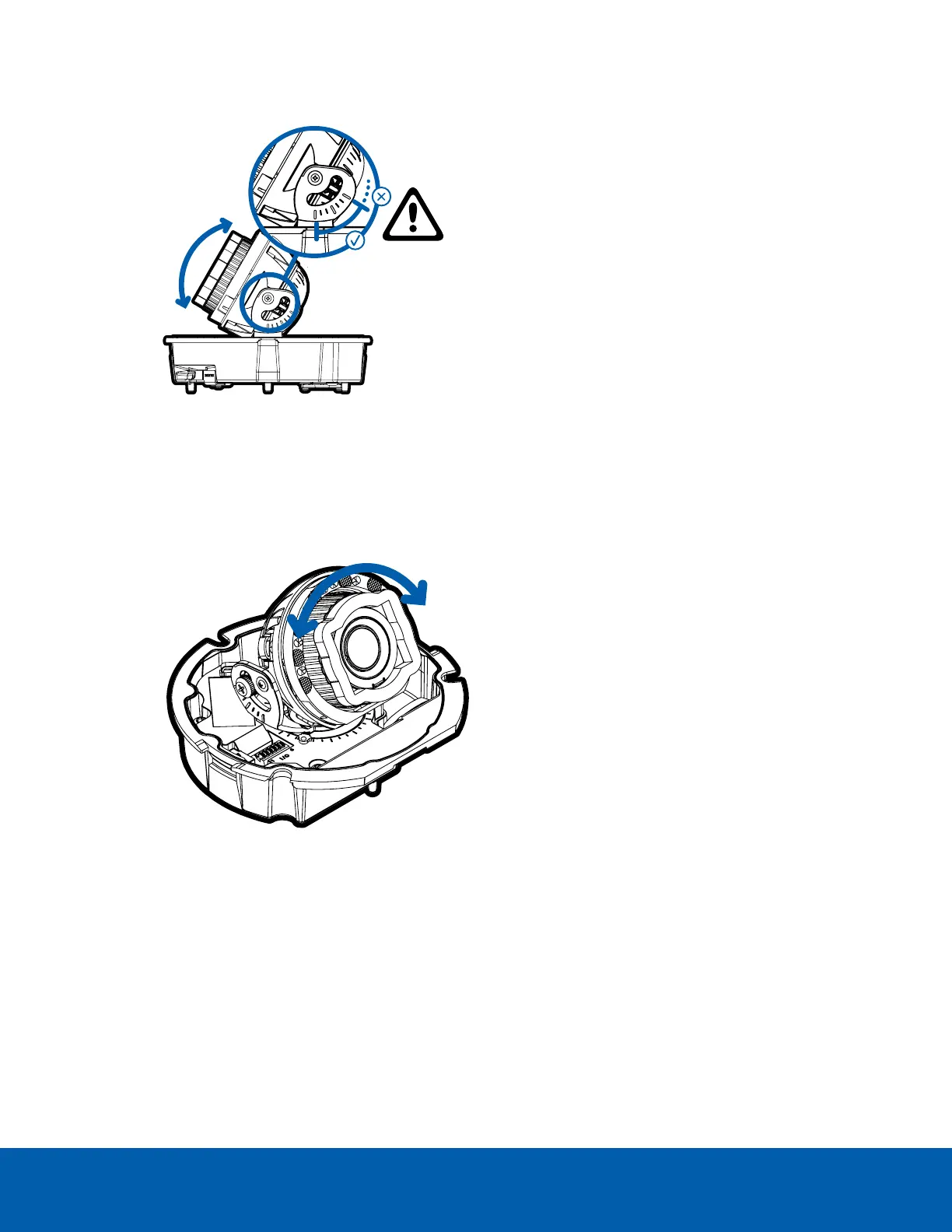

3. Adjust the tilt angle of the camera as needed.
Avigilon recommends that you adjust the tilt angle within the range indicated by the markings for best
results. Tilting the camera past these markings is possible, but may result in infrared reflections
beyond an acceptable level.
4. Tighten the tilt lock screw to secure the dome camera’s position.
5. Rotate the azimuth control ring to set the image to the correct angle.
6. In the camera web browser interface or the Avigilon Control Center software, adjust the camera’s
Image and Display settings.
(Optional) Configuring microSD Card Storage
To use the camera's SD card storage feature, you must insert a microSD card into the card slot.
It is recommended that the microSD card have a write speed of class 10 or better. If the microSD card does
not meet the recommended write speed, the recording performance may suffer and result in the loss of
frames or footage.
(Optional) Configuring microSD Card Storage 41
