Installing the Camera Base to the Mounting Adapter
After you install the mounting adapter, mount the camera base to the adapter.

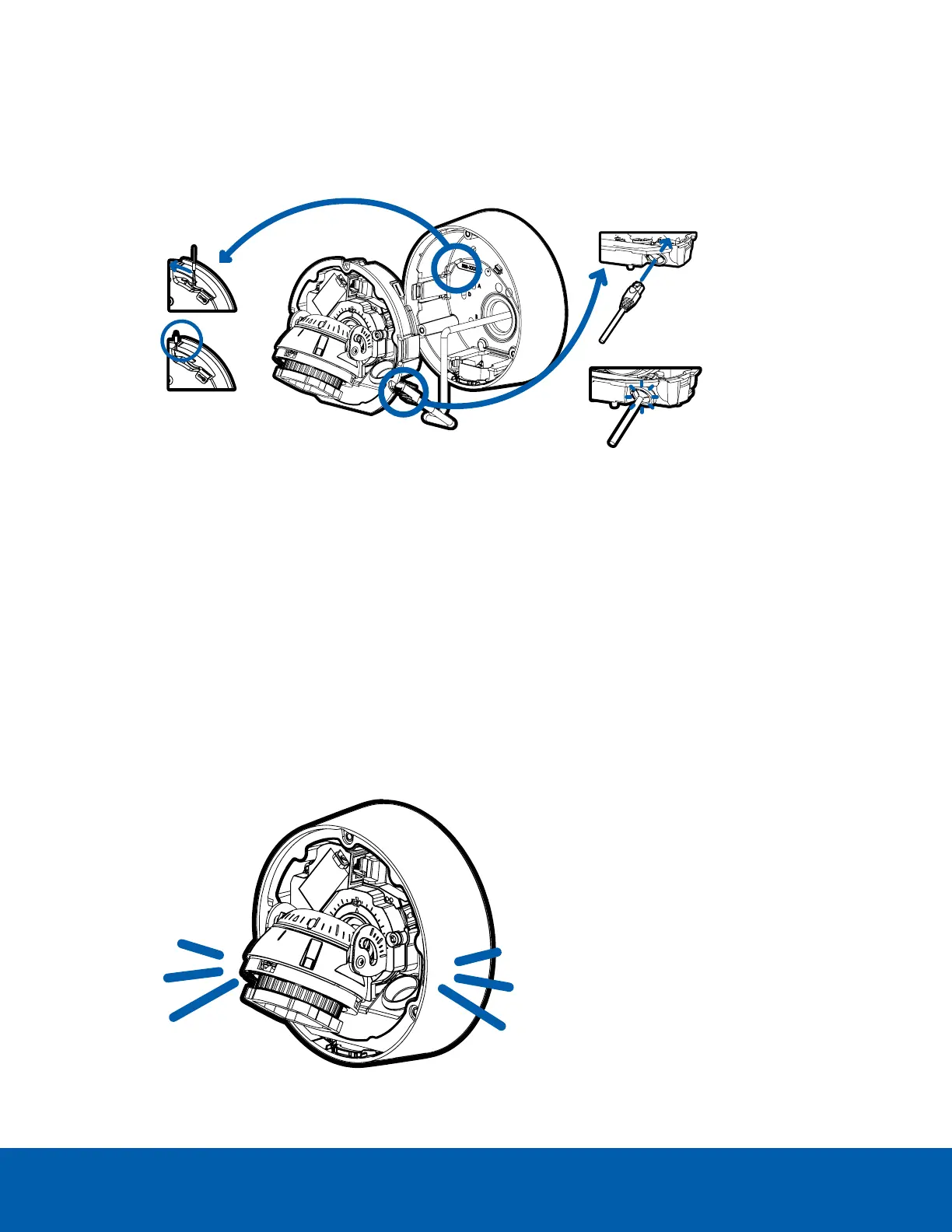

1. Attach the lanyard on the mounting adapter to the anchor on the camera base.
2. Pull the required cables through the cable entry hole on the camera base.
3. Install the grommet into the cable entry hole on the camera base.
Make sure the grommet flange is securely seated on the inside and outside of the cable entry hole.
4. Connect the network cable to the Ethernet port.
The Link LED will turn on once a network link has been established.
5. If external input or output devices, or audio devices are part of the installation (for example: door
contacts, relays, microphone, etc.), connect the devices to the I/O connector block.
For more information, see Connecting to External Audio and I/O Devices on pageî44.
6. Align the large orange arrow on the camera base to the side cable entry hole on the mounting
adapter then press the camera base into the mounting adapter. The camera base clicks into place
and is held securely.
Installing the Camera Base to the Mounting Adapter 19
