1. Remove the sealing grommet from the camera base.
2. Push the Ethernet cable through the grommet.
If you are installing the indoor model (H5SL-D), you should be able to simply push the cable, crimped
or uncrimped, through the grommet by hand.
If you are installing the outdoor model (H5SL-DO), use one of the following methods:
a. If the Ethernet cable is uncrimped, push the cable through the grommet.

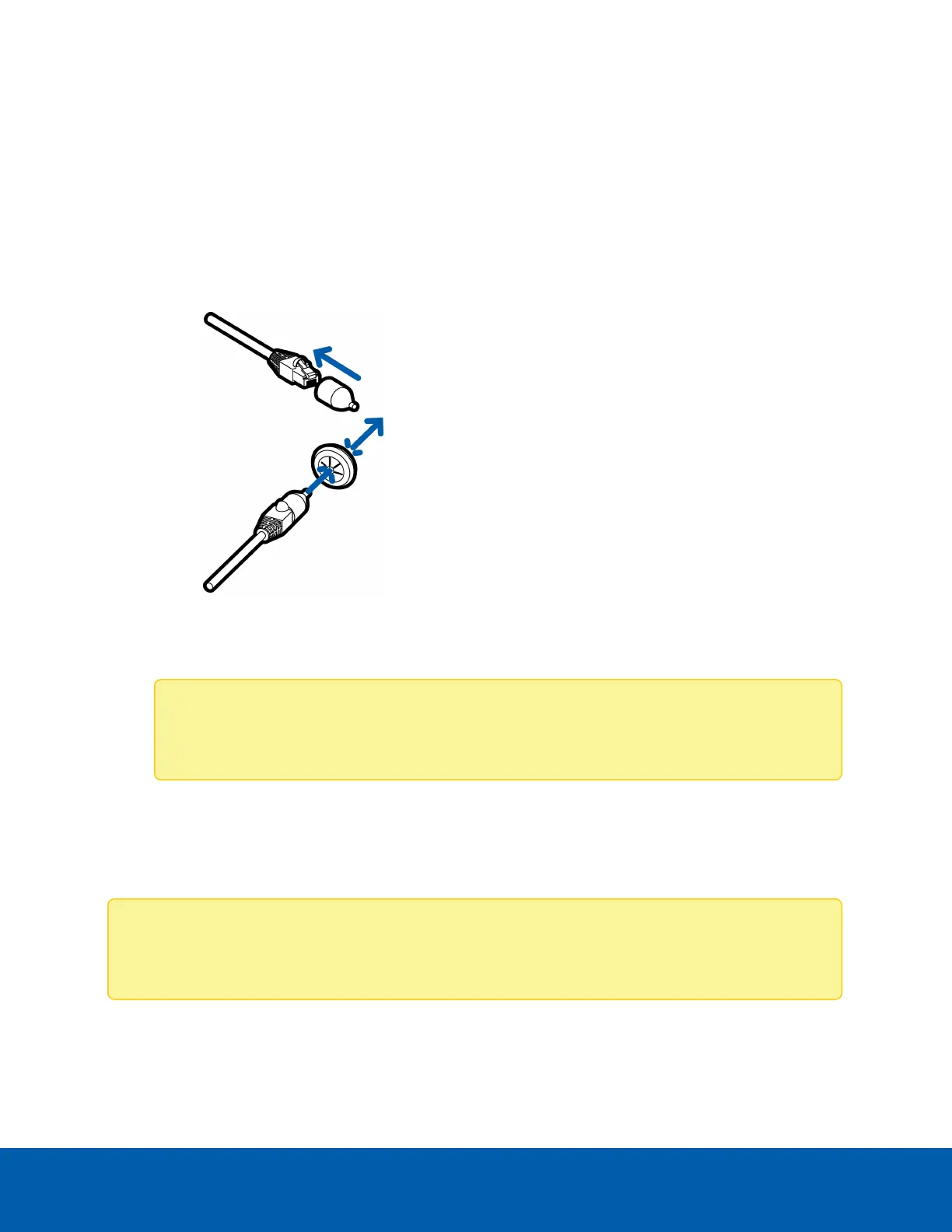

b. If the Ethernet cable is already crimped, place the grommet piercing cap on the Ethernet
connector then push the cable through the grommet.
Ensure that the orientation of the cable and grommet matches the one shown in the image.
3. Push any other required cables through the grommet.
Note: If you pull multiple cables through the sealing grommet, apply silicone sealant to seal
any gaps in the grommet.
Mounting the Dome Camera to a Pipe
If the dome camera needs to be installed to a pipe for a pendant installation, you can discard the surface
mount adapter that is provided with the dome camera and use the NPT adapter.
Note: This procedure requires a 1-1/2” NPT-female to NPT-female pipe adapter. It is recommended
that the NPT adapter be mounted to a 1-1/2” conduit pipe.
Mounting the Dome Camera to a Pipe 31
