2. Use the provided mounting template to drill four mounting holes into the mounting surface.
l If you are using the rear cable entry hole, also drill the cable entry hole into the mounting
surface.

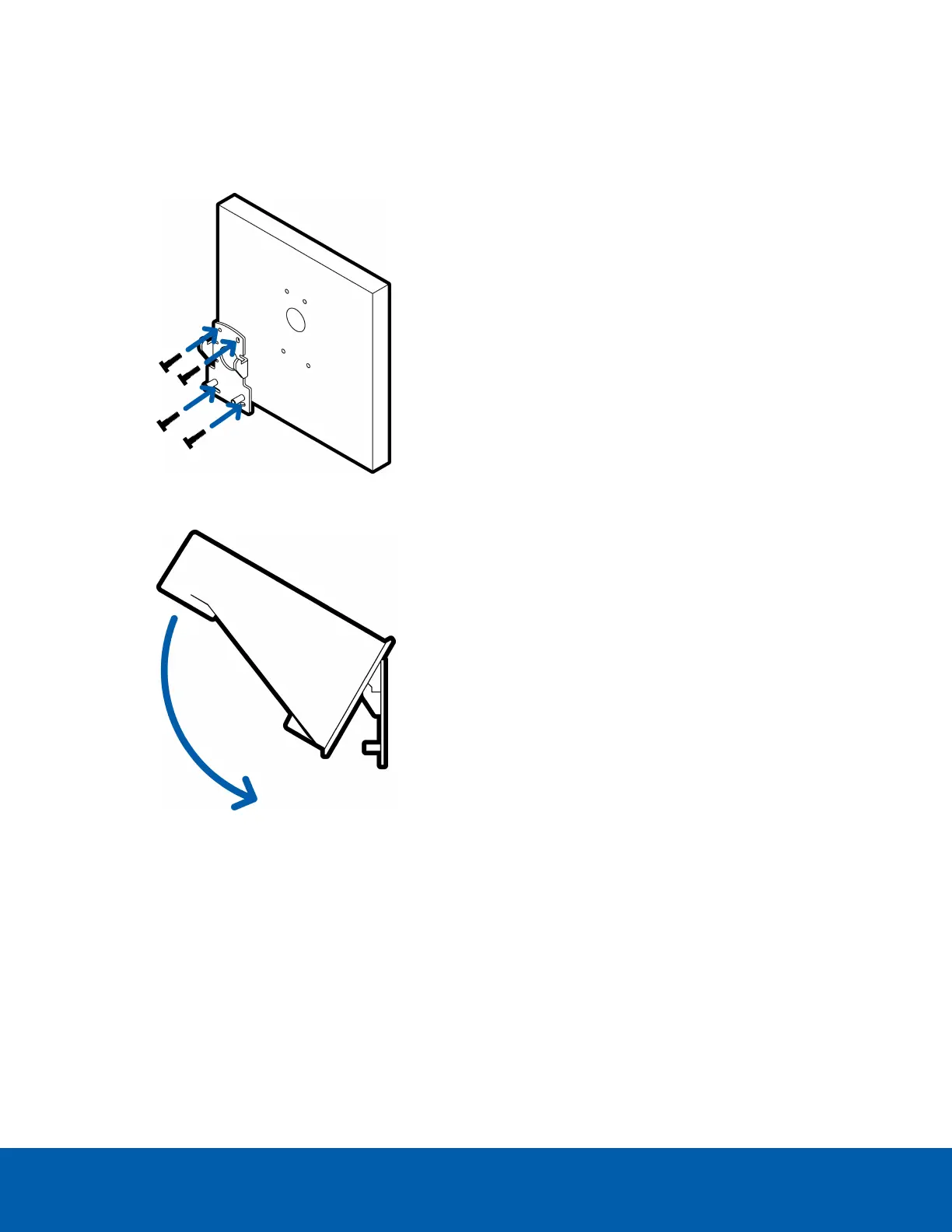

3. Fasten the pendant wall mount bracket to the mounting surface.
4. Insert the pendant wall mount over the bracket mounting tabs.
5. Pull the required cables through the preferred cable entry hole on the pendant wall mount.
l If you are using the pipe entry hole, pull the cables through the pipe conduit then the wall
mount. Next, apply thread seal tape to the pipe conduit and screw it into the pipe entry hole.
(Optional) Mounting the Dome Camera to the Pendant Wall Mount 33
