Motorola EVX S24 User Manual

5.4.1.1
Action of the Switches

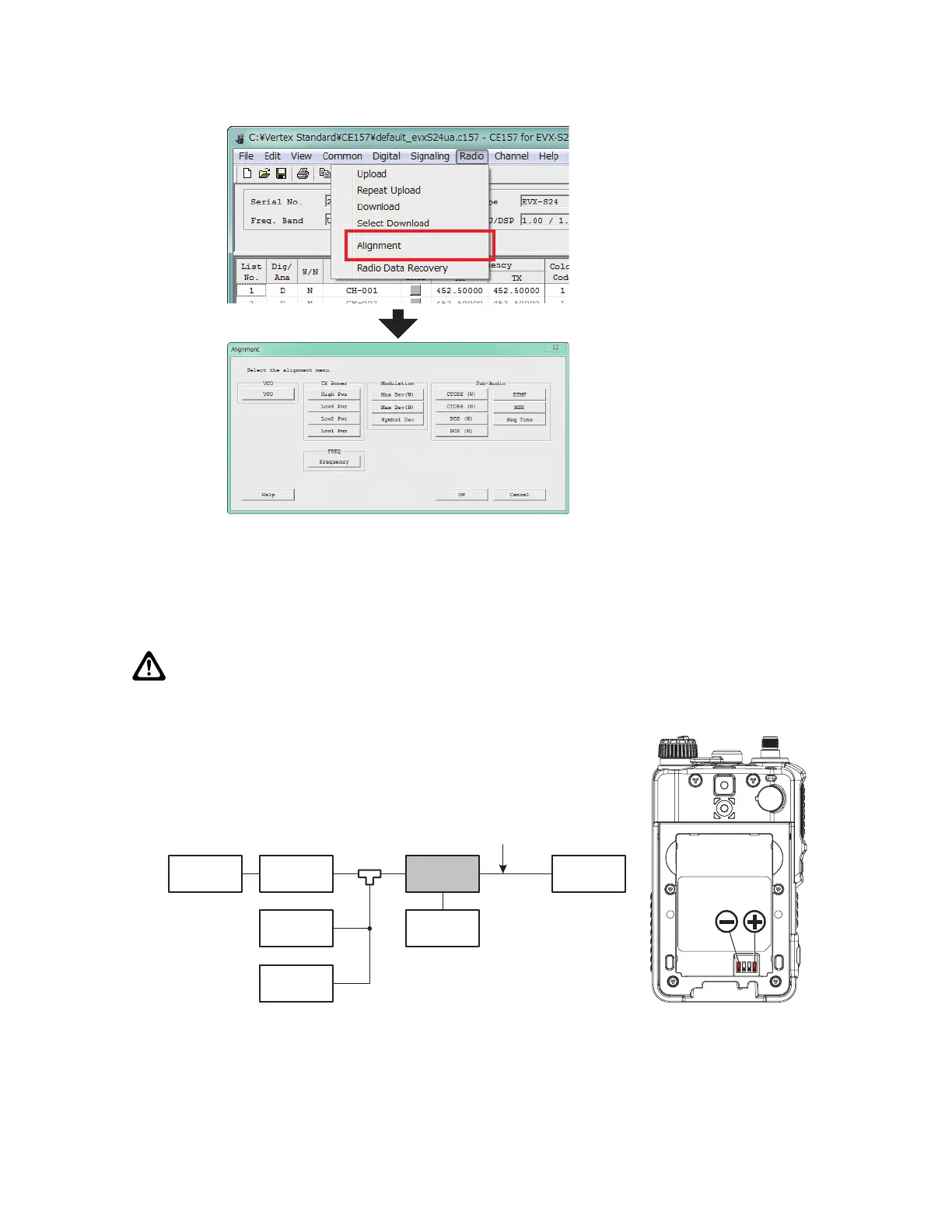

When the transceiver is in the “Alignment mode,“ the action of the PTT and all Programmable keys are
ignored. All of the action is controlled by the PC.
CAUTION: Please never turn off the power supply during alignment. If the power supply is
turned off during alignment, the alignment data will be corrupted.
Inline
Wattmeter
50-ohm
Dummy Load
Power Supply
3.7 VDC
Computer
(
CE157
)
Deviation
Meter
Frequency
Counter
Transceiver
USB Port
Micro USB Jack
CB000262A01
Micro USB Programming Cable
Battery Terminal
ANT
Sampling
Coupler
MN006437A01-AB
Chapter 5: Alignment
17

Motorola EVX S24 Specifications

General

Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
IP Rating	IP67
Operating Temperature	-30°C to +60°C
Digital Protocol	DMR
Programmable Buttons	2
Channels	256
Display	Yes
