Motorola EVX S24

• Pressing the up-down key of the computer’s keyboard
• Entering the value (“0000” - “FFFF”) in the entry box from the computer’s keyboard.
4 After getting the desired deviation, click the “PTT” button or press the “SPACE” bar to stop
transmitting.
5 Click the “OK” button to finish the Symbol Deviation alignment and save the data.
You may select the alignment type from the “Radio” button (ADJ Type) located at the bottom of
the screen, as needed.
Basic
“Low-edge / band center / high-edge” and select the channel for alignment (Default).
Single
Alignment value changes only on the selected channel.
All Freq:
Alignment value changes on all channels.
5.4.7
CTCSS Deviation (Wide/Narrow)
This parameter is to align CTCSS Deviation of the selected channel.
Procedure:

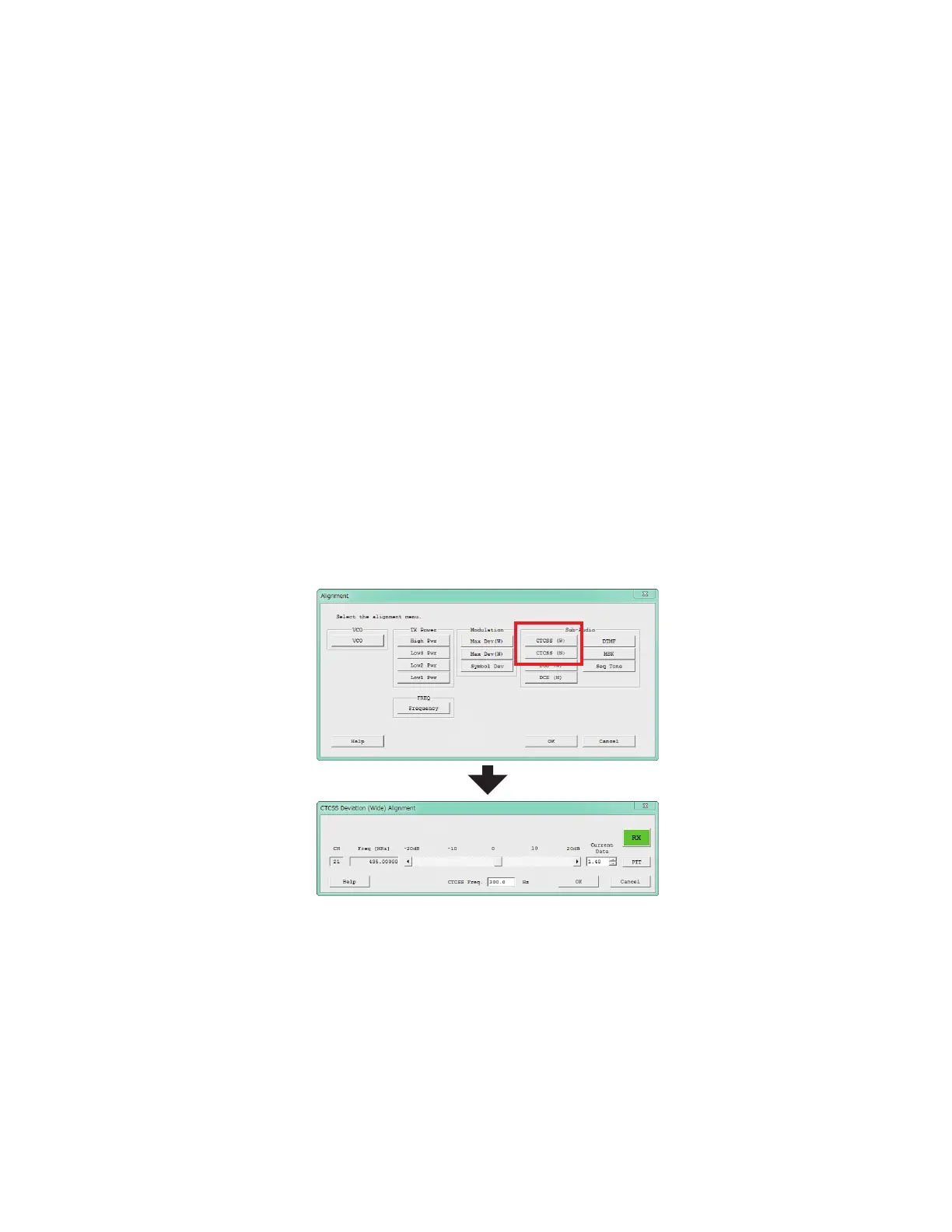

1 Press the “CTCSS (W/N)” button to open the “CTCSS Deviation Alignment” window.
2 Click the “PTT” button or press the “SPACE” bar of the computer’s keyboard to transmit the
radio.
3 Set the value to get desired deviation (Nominal: Wide: 0.55 kHz, Narrow: 0.35 kHz) on the
deviation meter according to the following ways:
• Dragging the slide bar
• Clicking the arrow (˂ / ˂) buttons
• Pressing the left/right arrow key of the computer’s keyboard
• Entering the value (“–20.00” - “20.00”) in the “Current Data” box from the computer’s
keyboard
MN006437A01-AB
Chapter 5: Alignment
24
