2 You may select the alignment type from the “Radio” button (ADJ Type) located at the bottom
of the screen, as needed.
Basic
“Low-edge / band center / high-edge” and select the channel for alignment (Default).
Single
Alignment value changes only on the selected channel.
All Freq:
Alignment value changes on all channels.
5.4.6
Symbol Deviation
This parameter is to align the deviation of the digital mode artificially.
Procedure:

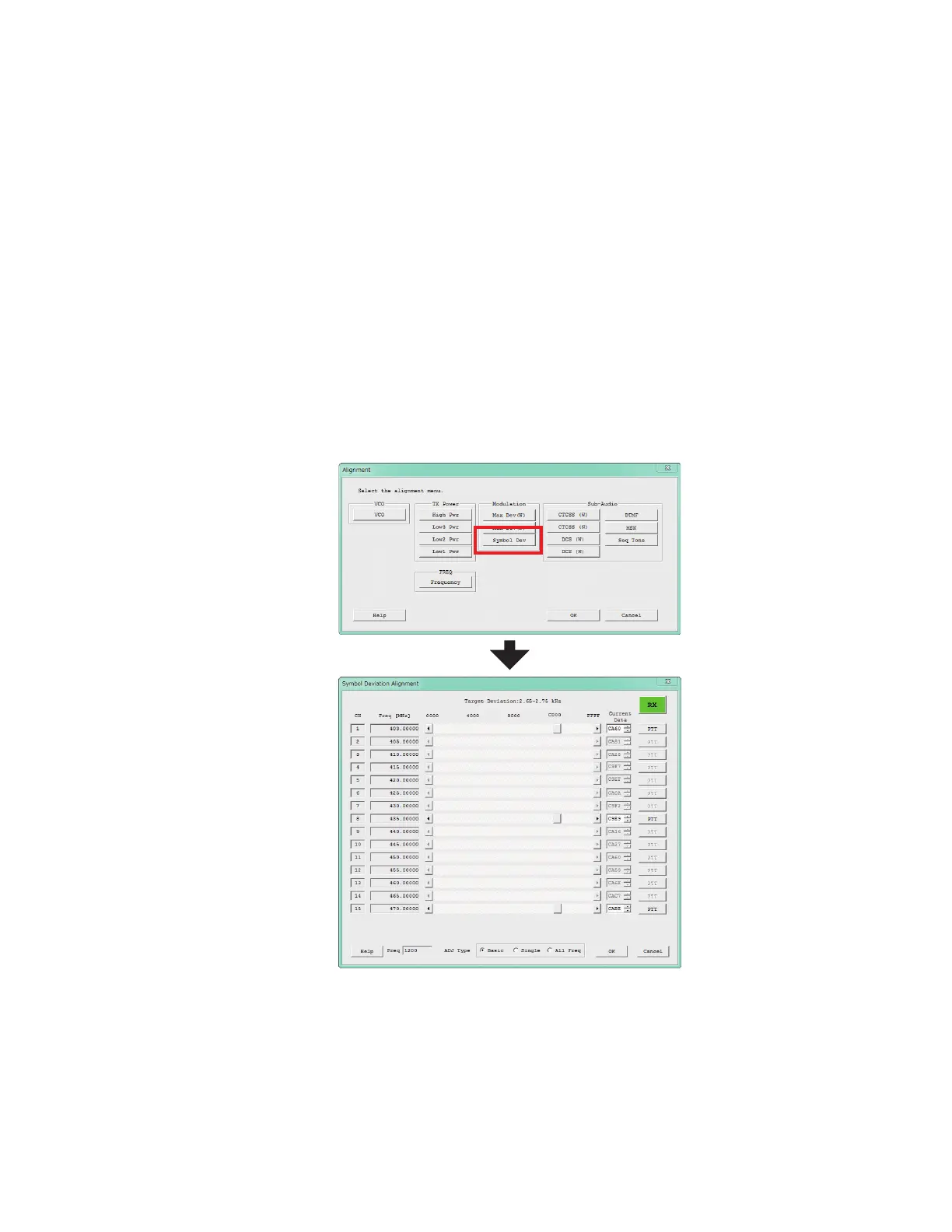

1 Press the “Symbol Dev” button to open the “Symbol Deviation Alignment” window.
2 Click the “PTT” button on the desired channel. The radio starts to transmit on the selected
channel.
3 Set the value to get Target Deviation (which is indicated on the screen) on the deviation meter
according to the following ways:
• Dragging the slide bar
• Clicking the arrow (˂ / ˂) buttons
