2 Click the “PTT” button or press the “SPACE” bar of the computer’s keyboard to transmit the
radio.
3 Set the value to get desired deviation (Nominal: 3.0 kHz) on the deviation meter according to the
following ways:
• Dragging the slide bar
• Clicking the arrow (˂ / ˂) buttons
• Pressing the left/right arrow key of the computer’s keyboard
• Entering the value (“–20.00” - “20.00”) in the “Current Data” box from the computer’s
keyboard
4 After getting the desired deviation, click the “PTT” button or press the “SPACE” bar to stop
transmitting.
5 Click the “OK” button to finish the MSK Deviation alignment and save the data.
5.4.11
Sequential Tone Deviation
This parameter is to fine-tune of the “Sequential Tone Deviation” for the 2-Tone and 5-Tone Encoder.
Procedure:

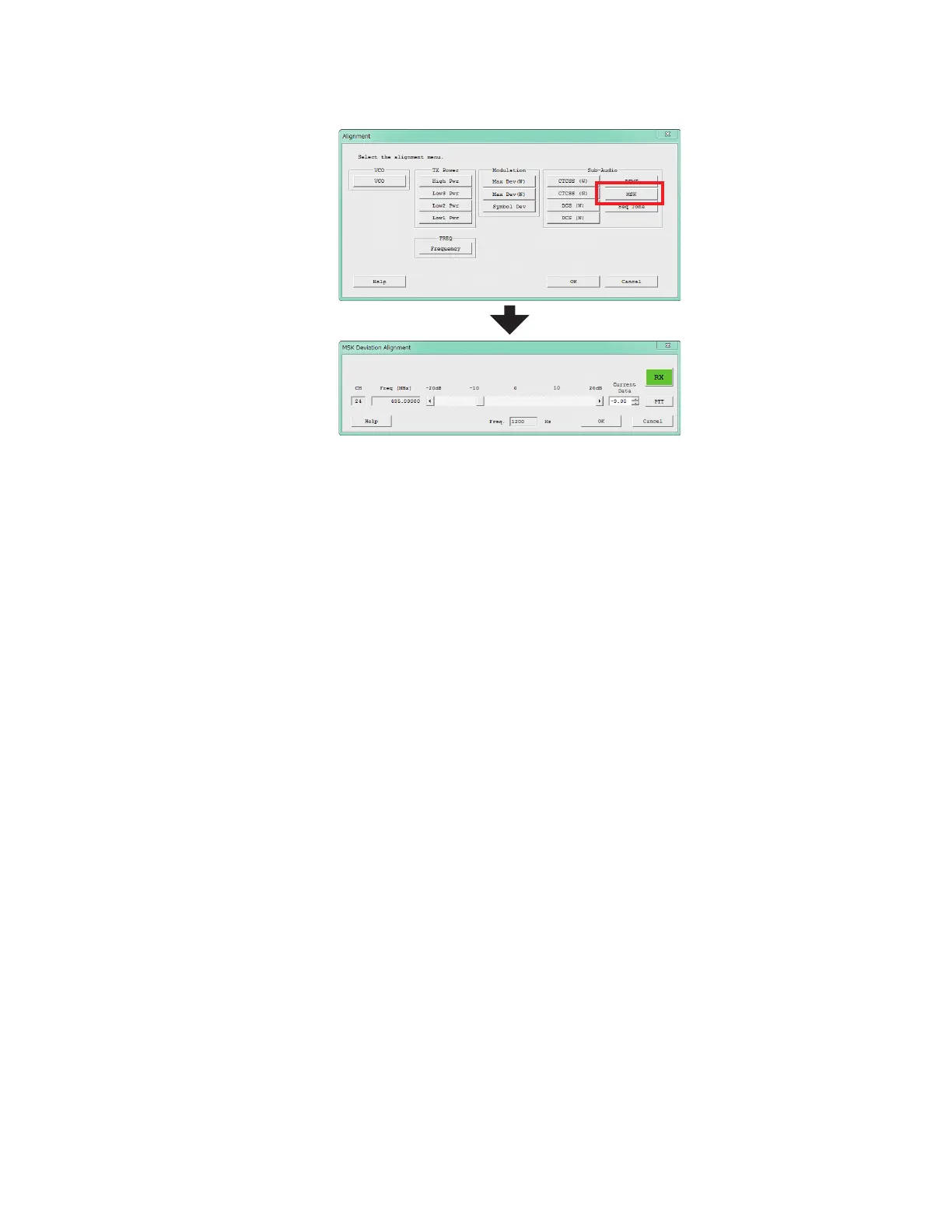

1 Press the “Seq Tone” button to open the “Sequential Tone Deviation Alignment” window.
