4 After getting the desired deviation, click the “PTT” button or press the “SPACE” bar to stop
transmitting.
5 Click the “OK” button to finish the CTCSS Deviation alignment and save the data.
You may align the deviation level by any CTCSS tone frequency (default: 300.0 Hz) by changing
the value of the “CTCSS Freq” box located at the bottom of the screen, if needed.
5.4.8
DCS Deviation (Wide/Narrow)
This parameter is to align “DCS Deviation” of the selected channel.
Procedure:

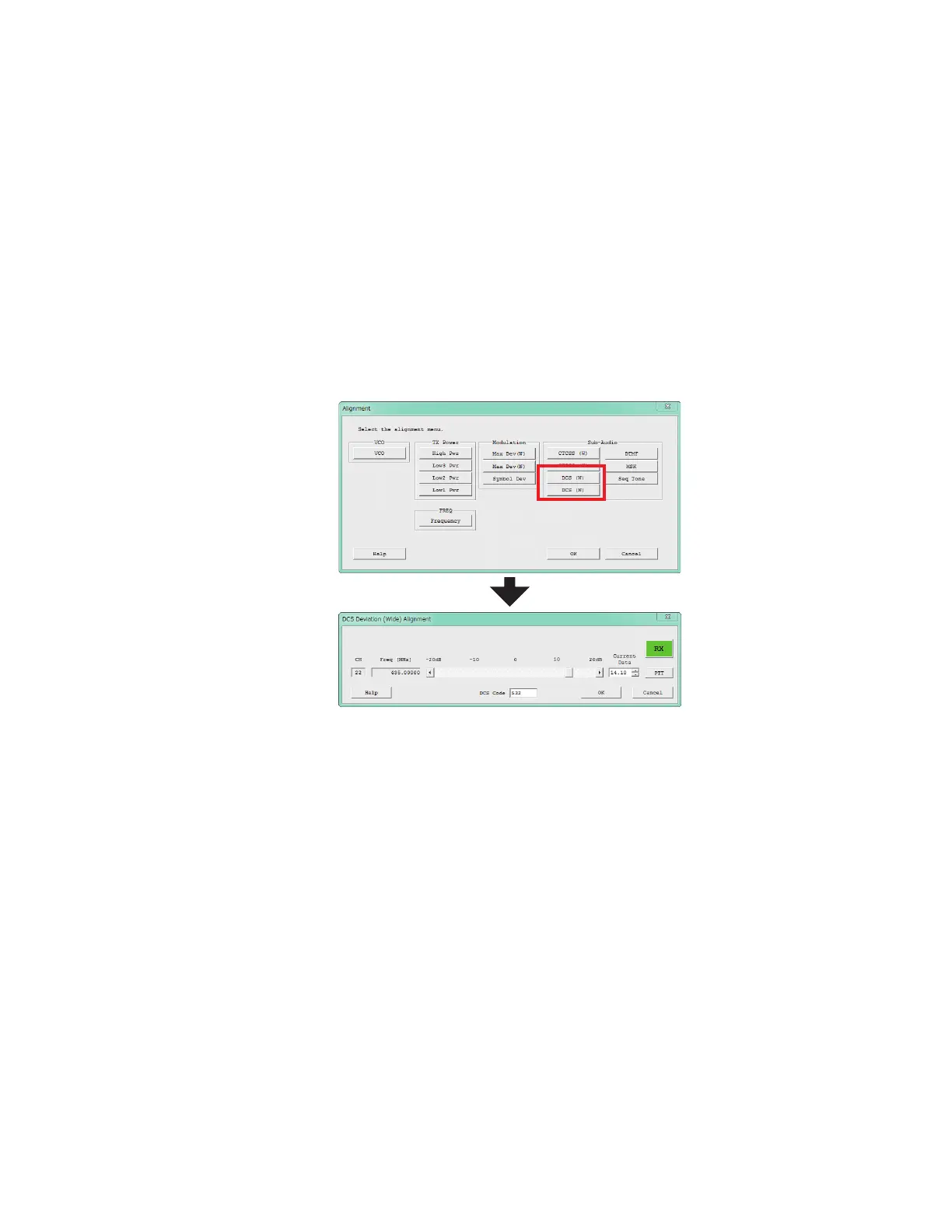

1 Press the “DCS (W/N)” button to open the “DCS Deviation Alignment” window.
2 Click the “PTT” button or press the “SPACE” bar of the computer’s keyboard to transmit the
radio.
3 Set the value to get desired deviation (Nominal: Wide: 0.6 kHz, Narrow: 0.4 kHz) on the
deviation meter according to the following ways:
• Dragging the slide bar
• Clicking the arrow (˂ / ˂) buttons
• Pressing the left/right arrow key of the computer’s keyboard
• Entering the value (“–20.00” - “20.00”) in the “CurrentData” box from the computer’s
keyboard
4 After getting the desired deviation, click the “PTT” button or press the “SPACE” bar to stop
transmitting.
5 Click the “OK” button to finish the DCS Deviation alignment and save the data.
You may align the deviation level by any DCS code (default: 532) by changing the value of the
“DCS Code” box located at the bottom of the screen, if needed.
