5.4.5
Maximum Deviation (Wide/Narrow)
This parameter is to align the “Maximum Deviation” (Wide/Narrow).
Procedure:

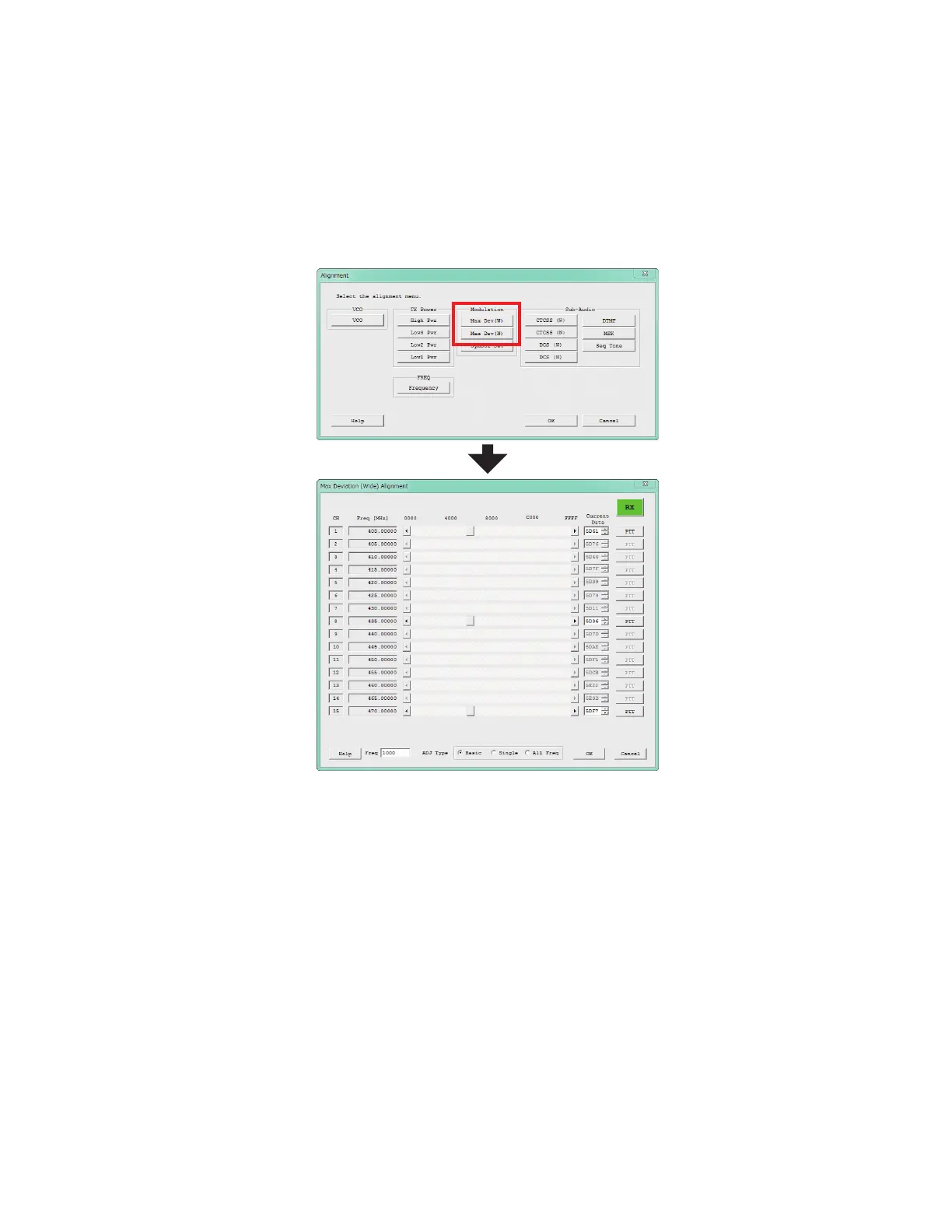

1 Press the “Max Dev (W/N)” button to open the “Max Deviation Alignment” window.
2 Click the “PTT” button on the desired channel. The radio starts to transmit on the selected
channel.
3 Set the value to get desired deviation (Wide: 4.2 kHz,Narrow: 2.1 kHz) on the deviation meter
according to the following ways:
• Dragging the slide bar
• Clicking the arrow (˂ / ˂) buttons
• Pressing the up-down key of the computer’s keyboard
• Entering the value (“0000” - “FFFF”) in the entry box from the computer’s keyboard
4 After getting the desired deviation, click the “PTT” button or press the “SPACE” bar to stop
transmitting.
5 Click the “OK” button to finish the Max Deviation alignment and save the data.
1 You may align the deviation level by any modulation frequency (default: 1000 Hz) by
changing the value of the “Freq” box located at the bottom left of the screen, if needed.
