2 Click the “PTT” button on the desired channel. The radio starts to transmit on the selected
channel.

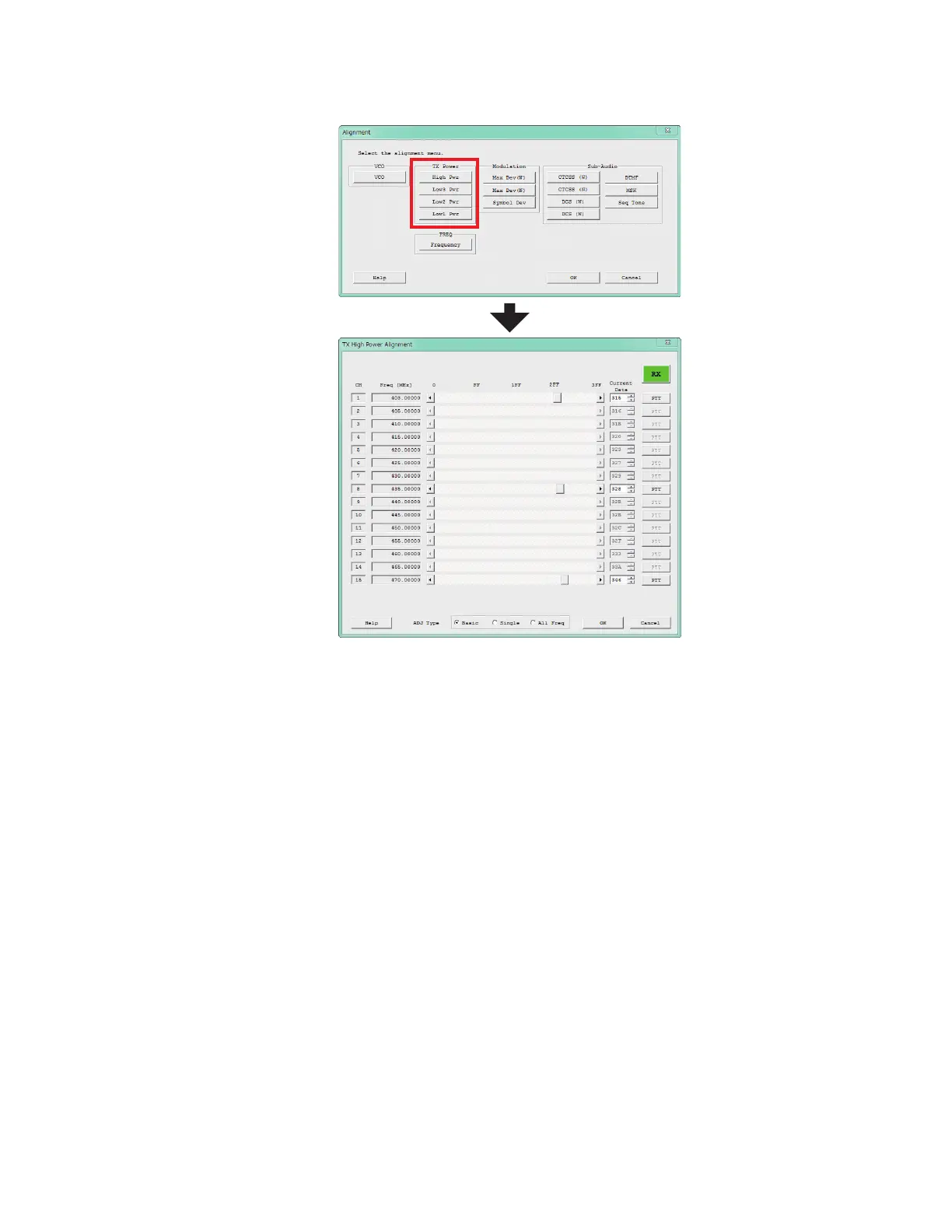

3 Set the value to get desired output power (High Pwr: 3 W, Low3 Pwr: 2 W, Low2 Pwr: 1 W,
Low1 Pwr: 0.5 W) on the Power Meter according to the following ways:
• Dragging the slide bar
• Clicking the arrow (˂ / ˂) buttons
• Pressing the left/right arrow key of the computer’s keyboard
• Entering the value (“000” - “3FF”) in the “Current Data” box from the computer’s keyboard
4 After getting the desired output power, click the “PTT” button or press the “SPACE” bar to stop
transmitting.
5 Click the “OK” button to finish the TX Power alignment and save the data.
You may select the adjusting type from the “Radio” button (ADJ Type) located at the bottom of
the screen, as needed.
Basic
“Low-edge / band center / high-edge” and select the channel for alignment (Default).
Single
Alignment value changes only on the selected channel.
All Freq:
Alignment value changes on all channels.
