Motorola EVX S24

1RQGHVLJQDWHGSDUWVDUHDYDLODEOHRQO\DVSDUWRIDGHVLJQDWHGDVVHPEO\
DISPLAY UNIT ASSY

CB7125000
MAIN UNIT ASSY 
CB7203000
CHASSIS ASSY
CB7121000
THERMAL CONDUCTIVE PAD
(
CHG
)
RA1640600
SHEET
(
6X6
)
RA037690C
(x
2 pcs
)
LID
(
USB
)
RA163420A
BUSH
RA125090A
KNOB
(
VOL
)
RA163460A
RUBBER CAP
(
JACK
)
RA163450B
O RING
(
4.8X1.9
)
RA1037400
LIGHT GUIDE
(
TX/RX
)
RA1632300
c
f
d
g
O RING
(
SCREW
)
RA1639400
(x
2 pcs
)
SHEET
(
MICROTEX C012
)
RA0337300
SHEET
(
VENT
)
RA1639600
O RING
(
BATT
)
RA1633400
e
e
d
d
d
d
d
d
f
g
RING NUT
RA157250A
GASKET
(
JACK
)
RA1632900
WIRE ASSY
FR027890B
SHIELD SHEET
RA164320A
GROUND PLATE
(
133
)
RA1642300
O RING
(
PANEL
)
RA1631000
FRONT CASE ASSY

30+1$
REAR CASE ASSY

CB7119000
BATTERY COVER ASSY

CB7190000
MAIN UNIT ASSY
(
COMPORNENT
)
Printed Circuit Board with Components
GASKET
(
JACK
)
GASKET
(
VCO
)
SHIELD SHEET
(
16X10
)
ELEC. COND TAPE
(
2.5X2.5
)
RING NUT
PAN HEAD SCREW
(
M2X3NI #3
)
PAN HEAD TAPTITE-B
(
2X5 #2
) (
4 pcs
)
DISPLAY UNIT ASSY
(
COMPORNENT
)
Printed Circuit Board with Components
LCD
MICROPHONE ELEMENT
HOLDER
(
LCD
)
LIGHT GUIDE
(
LCD
)
DOUBLE FACE ADHESIVE
(
LCD
)
INTER CONNECTOR
REFLECTOR SHEET
GASKET
GROUND PLATE
(
133
)
SPACER
(
MIC
)
TAP
(
LCD
)
(
YEL Model only
)
PAN HEAD TAPTITE-B
(
1.7X4
(
3
)
#3
)
(
4 pcs
)
PAN HEAD TAPTITE-B
(
2X5 #2
) (
3 pcs
)
CHASSIS ASSY
(
COMPORNENT
)
CHASSIS
CONNECTOR
(
SMAJ-VM2
)
O RING
(
4.8X1.9
)
THERMALCONDUCTIVE PAD
(
CHG
)
SHEET
(
6X6
) (
2 pcs
)
BATTERY COVER ASSY
(
COMPORNENT
)
LID
(
C146
)
O RING
(
BATT
)
LATCH
(
BATT
)
SLIDE KNOB
(
C146
)
PAD
(
BATT
)
(
x2 pcs
)
PAN HEAD TAPTITE-B
(
1.7X4
(
3
)
#2
)
REAR CASE ASSY
(
COMPORNENT
)
HOUSING ASSY
(
REAR
)
– BEZEL
(
PTT
)
– PADDLE
(
PTT
)
– BUTTON
(
PTT
)
– BUTTON
(
EMG
)
LID
(
USB
)
LIGHT GUIDE
(
TX/RX
)
SHEET
(
MICROTEX C012
)
SHEET
(
VENT
)
O RING
(
SCREW
) (
2 pcs
)
Y-RECESS TAPTITE-B
(
2X22SUS B
) (
x 2 pcs
)
Y-RECESS TAPTITE-B
(
2X13NI
) (
x 2 pcs
)
Y-RECESS SCREW
(
M2X16.5NI
) (
x 2 pcs
)
LI-ION BATTERY PACK
VXSTD P/N
FNB-V146LI
(
3.7V, 2300 mAh
)
AAM10X001
AC A
DAPTOR
(
B
ATTERY CHARGER
)
VXSTD P/N
PA-57A
(
for Japan
)
AAL92X001
PA-57B
(
for USA
)
AAL92X002
PA-57C
(
for EU
)
AAL92X003
PA-57U
(
for UK
)
AAL92X004
PA-57F
(
for Argentina
)
AAL92X005
PA-57G
(
for China
)
AAL92X006
PA-57H
(
for Australia
)
AAL92X007
PA-57K
(
for Brazil
)
AAL92X008
Antenna VXSTD P/N
ATU-6A
(
400-430 MHz
)
AAE23X001
ATU-6B
(
420-450 MHz
)
AAE23X006
ATU-6C
(
440-470 MHz
)
AAE23X002
ATU-6D
(
450-485 MHz
)
AAE23X003
ATU-20AS
(
400-430 MHz
)
AAM23X001
ATU-20DS
(
440-470 MHz
)
AAM23X002
ATU-20FS
(
450-480 MHz
)
AAM23X003
FRONT CASE ASSY
(
COMPORNENT
)
PANEL ASSY
(
FRONT
)
– SPEAKER
– SP NET
O RING
(
PANEL
)
KEYPAD
WINDOW
(
C146
)
DOUBLE FASE ADHESIVE
(
WDO
)
MIC MEMBRANE
PAD
(
WINDOW
)
PAD
(
DISP
)
PAD
(
MIC
)
SPONGE
(
PANEL
) (
x 2 pcs
) (
YEL Model only
)
WIRE ASSY
(
WHT 25
)
WIRE ASSY
(
BRN 35
)
REF. VXSTD P/N DESCRIPTION QTY.
c
U07230302 PAN HEAD SCREW M2X3NI #3 1
d
U9900307 PAN HEAD TAPTITE-B 2X5 #2 7
e
U9900309 Y-RECESS TAPTITE-B 2X22 SUS B 2
f
U9900311 Y-RECESS TAPTITE-B 2X13 NI 2
g
U9900313 Y-RECESS SCREW M2X16.5NI 2
CAUTION LABEL (GEN)
RA1648800
MN006437A01-AB

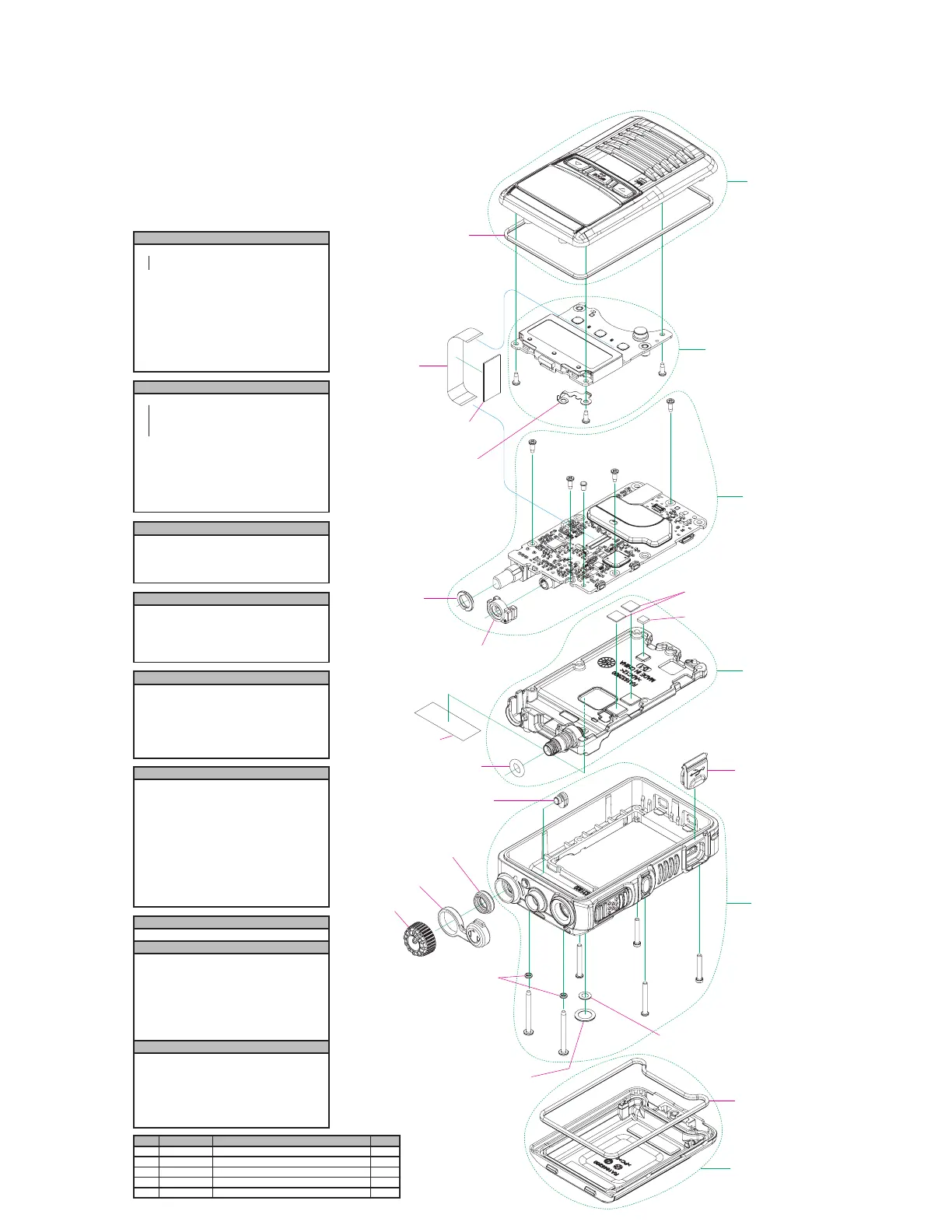

Chapter 3: Exploded View and Miscellaneous Parts
7
