6809495A75-O October 14, 2005 17
Level 1 and 2 Service Manual Disassembly
Disassembly
This section describes how to disassemble a L6 telephone. Tools and equipment
used are listed in Table 1.
Removing and Replacing the Battery Cover
1. Ensure the phone is turned off.
2. Press the battery cover latch on the bottom of the phone, and lift the battery
cover up from the phone and lift it off (see Figure 4).
3. To replace, align the battery cover with the rear housing.
4. Place the battery cover on the rear housing and gently press the battery cover
until it snaps into place.
5. Ensure that the battery cover tap is tucked in below the RF cover.
G
Many of the integrated devices used in this phone are vulnerable to damage from
ESD. Ensure adequate static protection is in place when handling, shipping, and
servicing any internal components.
G
Avoid stressing the plastic in any way to avoid damage to either the plastic or
internal components.
050776o

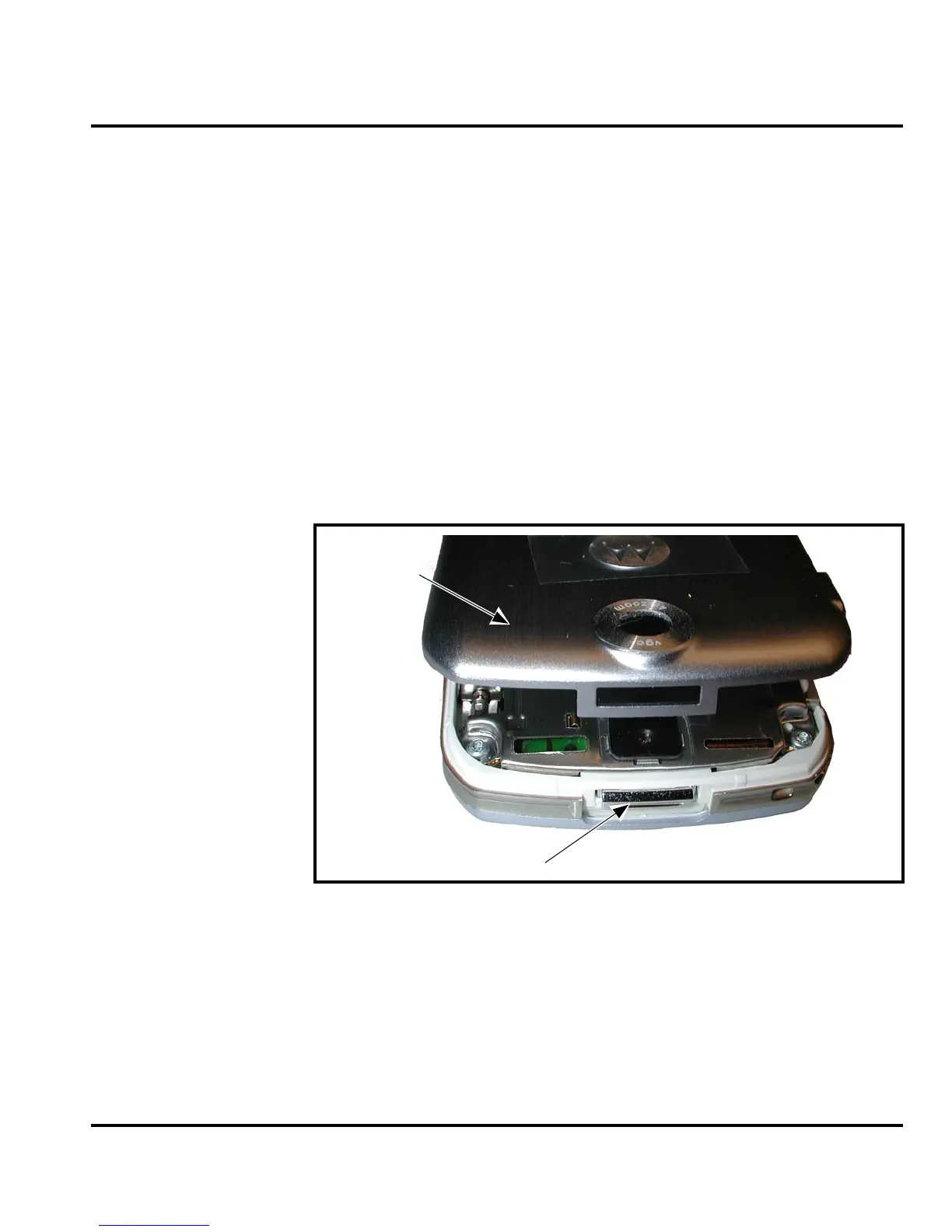

Figure 4. Removing the Battery Cover
Battery latch
Battery cover

Motorola L6 Specifications

General

Display Size	1.8 inches
Resolution	128 x 160 pixels
Internal Storage	10 MB
Main Camera	VGA
Dimensions	113 x 49 x 10.9 mm (4.45 x 1.93 x 0.43 in)
Weight	86 g (3.03 oz)
Network Technology	GSM
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 10
EDGE	Class 10
Announced	2005, Q4
Status	Discontinued
SIM	Mini-SIM
Memory Card slot	No
Phonebook	1000 entries
Video	Yes
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Radio	No
Browser	WAP 2.0/xHTML
Games	Yes + downloadable
Java	Yes, MIDP 2.0
Bluetooth	v1.2
Messaging	SMS, EMS, MMS
Colors	Black, Silver, Pink, Blue
OS	Proprietary
