Motorola L6 User Manual

6809495A75-O October 14, 2005 23
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Motor/Vibrator
1. Remove the battery cover, battery, SIM, antenna, and transceiver PC board
shield as described in the procedures.
2. Turn the PC board shield over to reveal the motor/vibrator assembly.
3. Use the disassembly tool or the plastic tweezers to lift the motor/vibrator
assembly from the PC board shield (see Figure 11).
4. To replace, place the motor/vibrator assembly into it’s slot on the PC board
shield. Ensure that the spring contacts are facing upward, and the motor
flywheel can rotate freely.
5. Reassemble the transceiver PC board shield, antenna, SIM, battery, and
battery cover as described in the procedures.

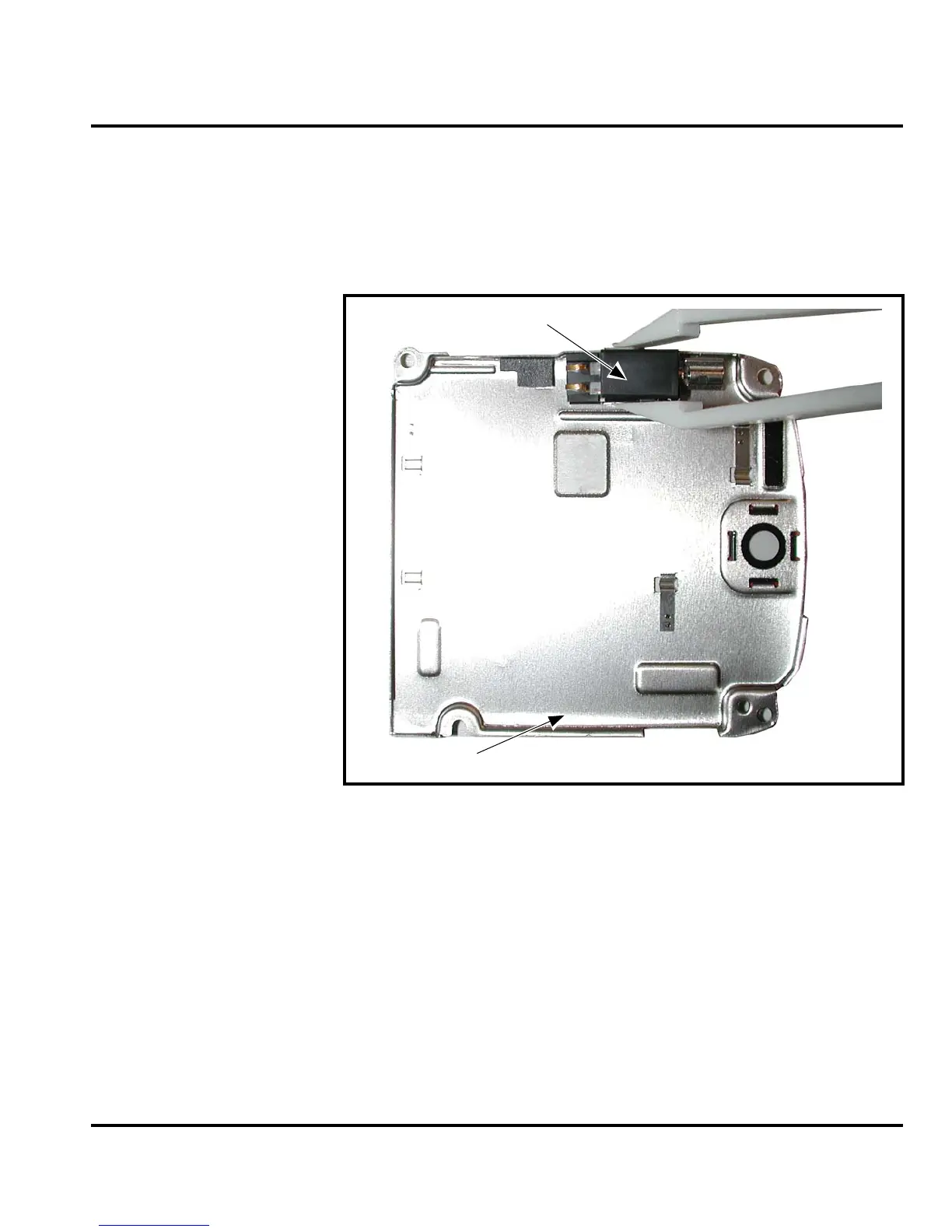

051595o
Figure 11. Removing and Replacing the Motor/Vibrator.
Motor/Vibrator
PC Board
Shield

Motorola L6 Specifications

General

Display Size	1.8 inches
Resolution	128 x 160 pixels
Internal Storage	10 MB
Main Camera	VGA
Dimensions	113 x 49 x 10.9 mm (4.45 x 1.93 x 0.43 in)
Weight	86 g (3.03 oz)
Network Technology	GSM
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 10
EDGE	Class 10
Announced	2005, Q4
Status	Discontinued
SIM	Mini-SIM
Memory Card slot	No
Phonebook	1000 entries
Video	Yes
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Radio	No
Browser	WAP 2.0/xHTML
Games	Yes + downloadable
Java	Yes, MIDP 2.0
Bluetooth	v1.2
Messaging	SMS, EMS, MMS
Colors	Black, Silver, Pink, Blue
OS	Proprietary
