28 October 14, 2005 6809495A75-O
Disassembly L6
Removing and Replacing the Front Housing
1. Remove the battery cover, battery, SIM, antenna, and transceiver PC board as
described in the procedures.

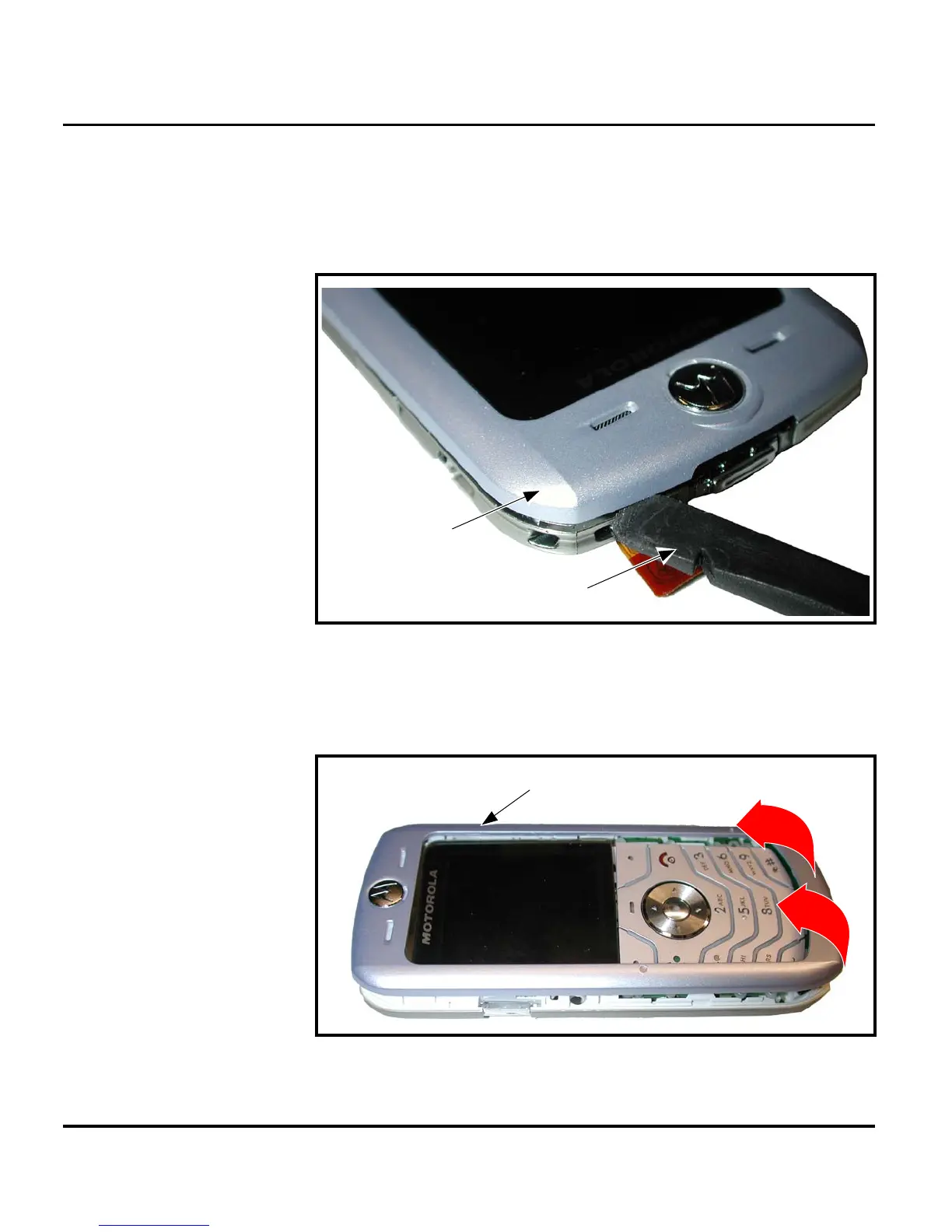

2. Insert the disassembly between the front housing and the chassis assembly
(see Figure 17).
3. Slide the disassembly tool around the phone between the front housing and
the phone to release the housing catches along the sides of the front housing
(see Figure 18).
051593o
Figure 17. Releasing the Front Housing Catches
050789o
Figure 18. Removing the Front Housing
Front housing
Disassembly tool
Front Housing
