6809495A75-O October 14, 2005 29
Level 1 and 2 Service Manual Disassembly
4. Carefully lift the bottom end of the front housing over the phone.
5. Use the disassembly tool to separate the earpiece speaker from the front
housing (see Figure 19).
6. Remove the front housing.
7. To replace, attach the earpiece speaker to the front housing.
8. Rotate the front housing over the chassis to align the front housing to the
chassis.
9. Carefully and gently press the front housing into the chassis until all of the
housing catches are engaged.
10. Reassemble the transceiver PC board, antenna, SIM, battery and battery cover
as described in the procedures.
050807o

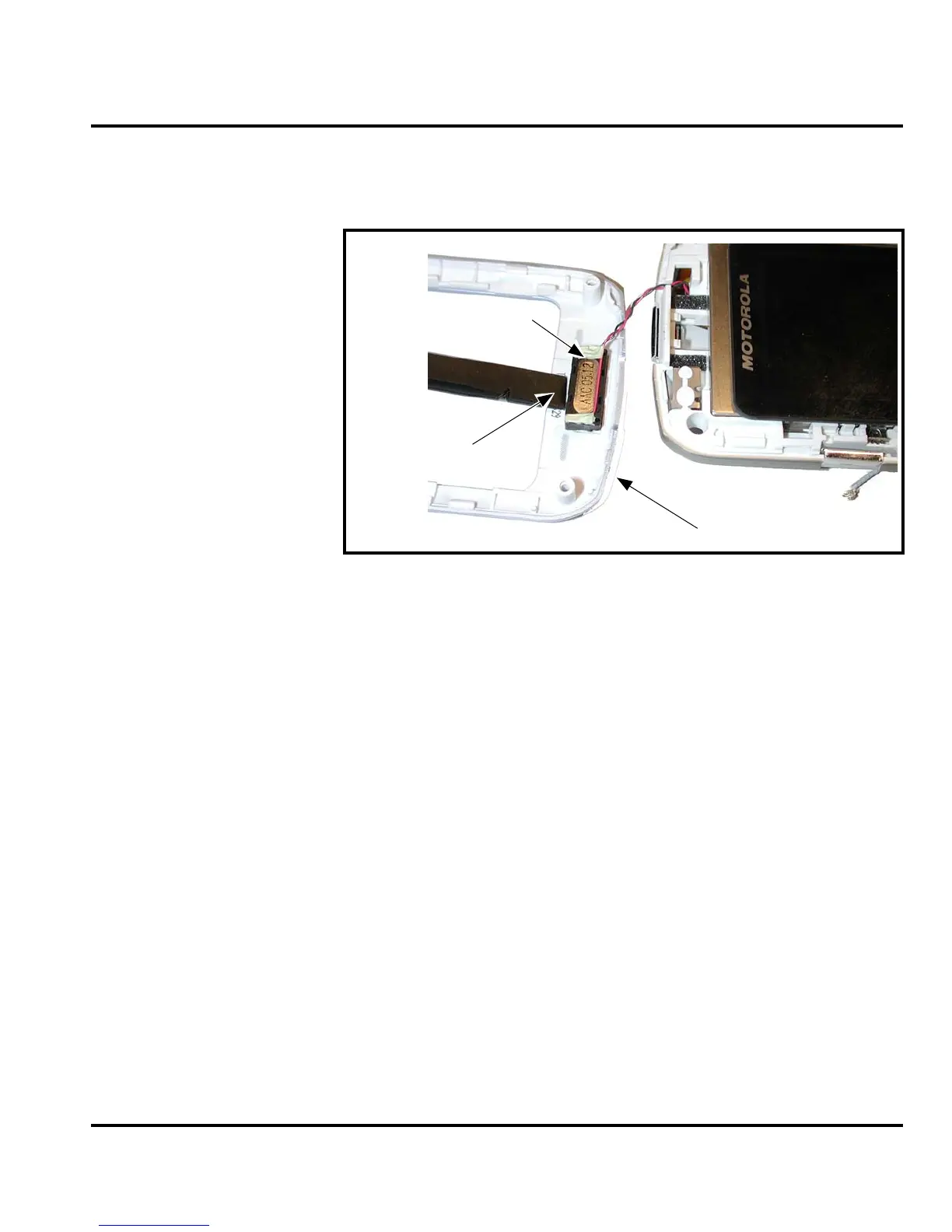

Figure 19. Removing the Earpiece Speaker from the Front Housing
Earpiece speaker
Disassembly tool
Front Housing

Motorola L6 Specifications

General

Display Size	1.8 inches
Resolution	128 x 160 pixels
Internal Storage	10 MB
Main Camera	VGA
Dimensions	113 x 49 x 10.9 mm (4.45 x 1.93 x 0.43 in)
Weight	86 g (3.03 oz)
Network Technology	GSM
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 10
EDGE	Class 10
Announced	2005, Q4
Status	Discontinued
SIM	Mini-SIM
Memory Card slot	No
Phonebook	1000 entries
Video	Yes
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Radio	No
Browser	WAP 2.0/xHTML
Games	Yes + downloadable
Java	Yes, MIDP 2.0
Bluetooth	v1.2
Messaging	SMS, EMS, MMS
Colors	Black, Silver, Pink, Blue
OS	Proprietary
