Motorola L6 User Manual

18 October 14, 2005 6809495A75-O
Disassembly L6
Removing and Replacing the Battery
1. Remove the battery cover as described in the procedures.
2. Lift the top end of the battery as indicated by the arrow in Figure 5.
3. Lift the battery up and out of the battery compartment.
4. To replace, insert the bottom of the battery into the battery compartment with
contacts facing downward.
5. Press the top of the battery into the battery compartment.
6. Replace the battery cover as described in the procedures.
o

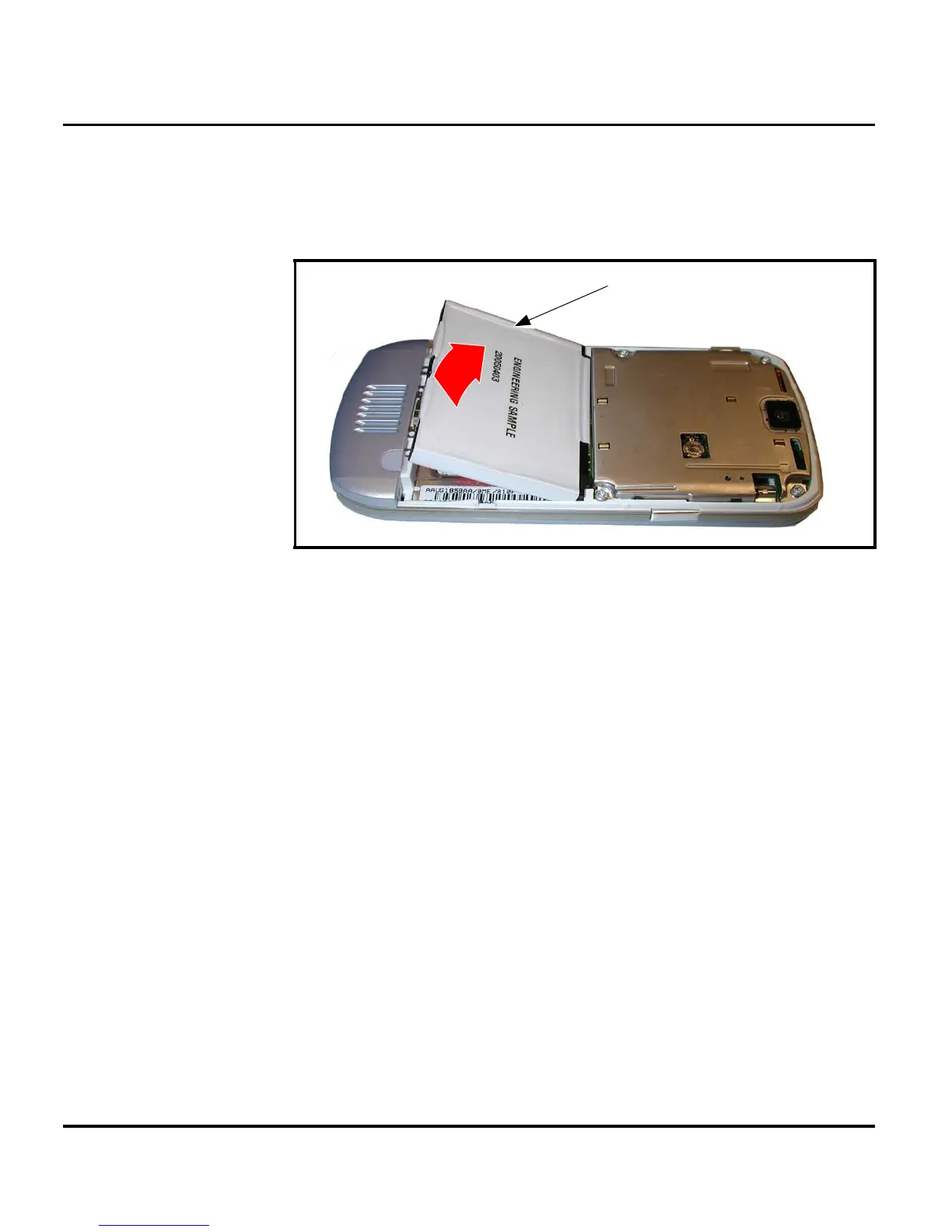

Figure 5. Removing and Replacing the Battery
E
There is a danger of explosion if the Lithium-Ion battery is replaced incorrectly.
Replace only with the same type of battery or equivalent as recommended by the
battery manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
Battery

Motorola L6 Specifications

General

Display Size	1.8 inches
Resolution	128 x 160 pixels
Internal Storage	10 MB
Main Camera	VGA
Dimensions	113 x 49 x 10.9 mm (4.45 x 1.93 x 0.43 in)
Weight	86 g (3.03 oz)
Network Technology	GSM
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 10
EDGE	Class 10
Announced	2005, Q4
Status	Discontinued
SIM	Mini-SIM
Memory Card slot	No
Phonebook	1000 entries
Video	Yes
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Radio	No
Browser	WAP 2.0/xHTML
Games	Yes + downloadable
Java	Yes, MIDP 2.0
Bluetooth	v1.2
Messaging	SMS, EMS, MMS
Colors	Black, Silver, Pink, Blue
OS	Proprietary
