6809495A75-O October 14, 2005 21
Level 1 and 2 Service Manual Disassembly
5. Use the disassembly tool to lift the side of the antenna out of the phone (see
Figure 9).
6. Carefully remove the antenna from the phone.
7. To replace, insert the antenna into the antenna slot on the phone. Ensure the
antenna makes contact with the RF contacts on the PC board.
8. Align the antenna cover over the antenna.
9. Place the curved edge of the antenna cover onto the phone.
10. Carefully press the straight edge of the antenna cover into place until the
latches snap into place.
11. Insert the RF grommet fully into the opening on the antenna cover.
12. Reassemble the SIM, battery, and battery cover as described in the procedures.
o

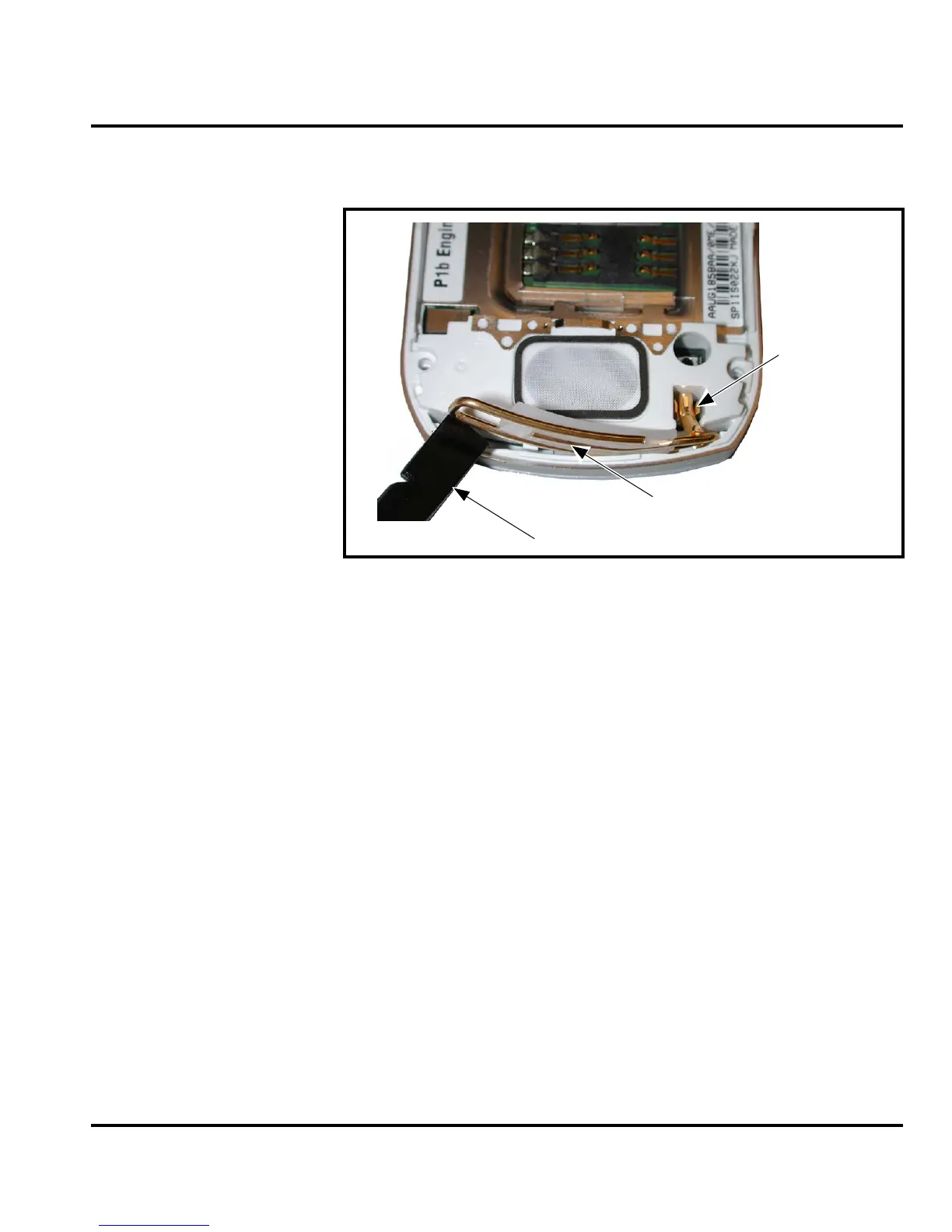

Figure 9. Removing and Replacing the Antenna
Antenna assembly
RF contacts
Disassembly tool

Motorola L6 Specifications

General

Display Size	1.8 inches
Resolution	128 x 160 pixels
Internal Storage	10 MB
Main Camera	VGA
Dimensions	113 x 49 x 10.9 mm (4.45 x 1.93 x 0.43 in)
Weight	86 g (3.03 oz)
Network Technology	GSM
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 10
EDGE	Class 10
Announced	2005, Q4
Status	Discontinued
SIM	Mini-SIM
Memory Card slot	No
Phonebook	1000 entries
Video	Yes
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Radio	No
Browser	WAP 2.0/xHTML
Games	Yes + downloadable
Java	Yes, MIDP 2.0
Bluetooth	v1.2
Messaging	SMS, EMS, MMS
Colors	Black, Silver, Pink, Blue
OS	Proprietary
