6809495A75-O October 14, 2005 25
Level 1 and 2 Service Manual Disassembly
5. Use the coaxial cable extraction tool (see Figure 13) to unseat the coaxial cable
connector from the transceiver PC board (see Figure 14)...
051259o

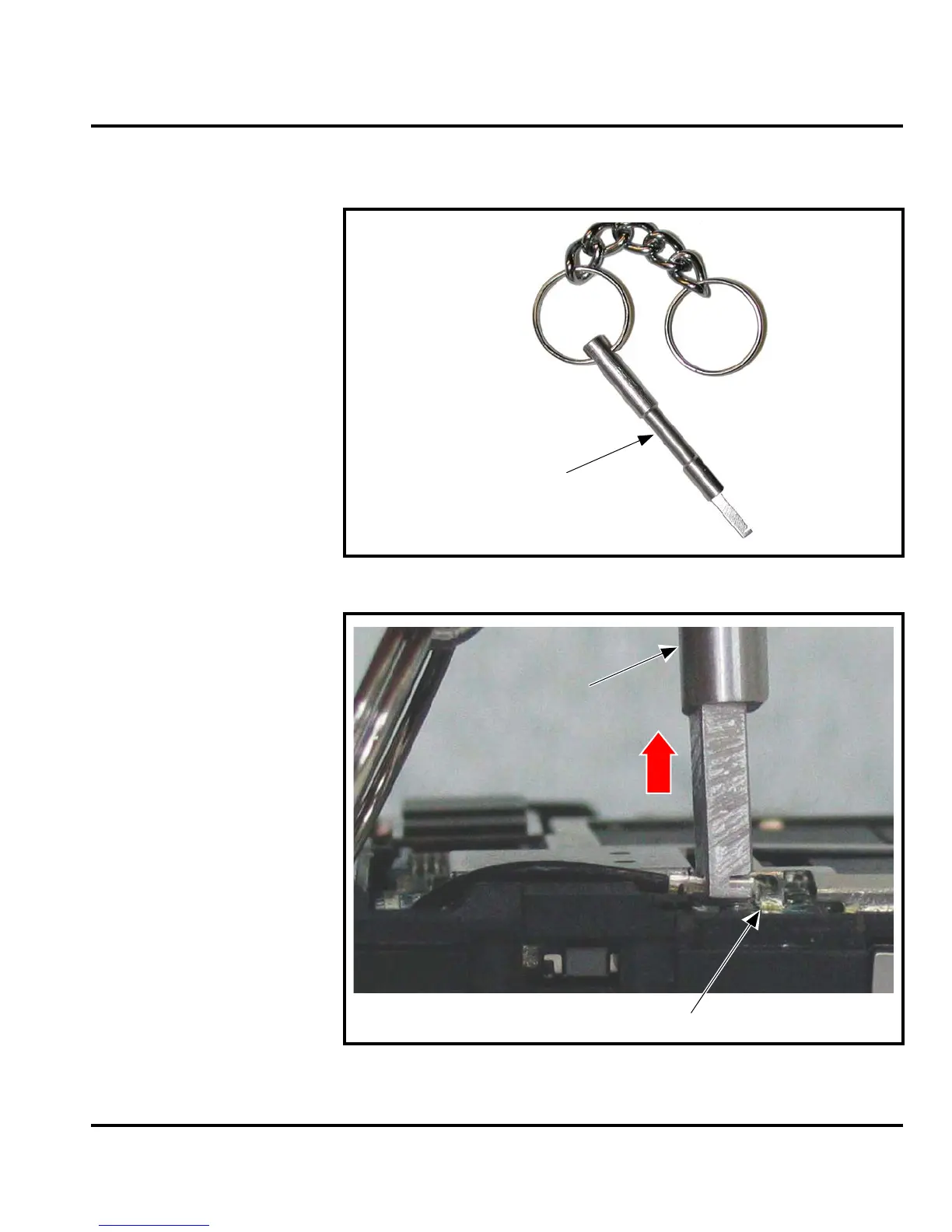

Figure 13. Coaxial Cable Extraction Tool
051260o
Figure 14. Coaxial Cable Extraction
Coaxial cable
extraction tool
Coaxial cable
extraction tool
Attach extraction tool opening to
coax connector and pull upward.
