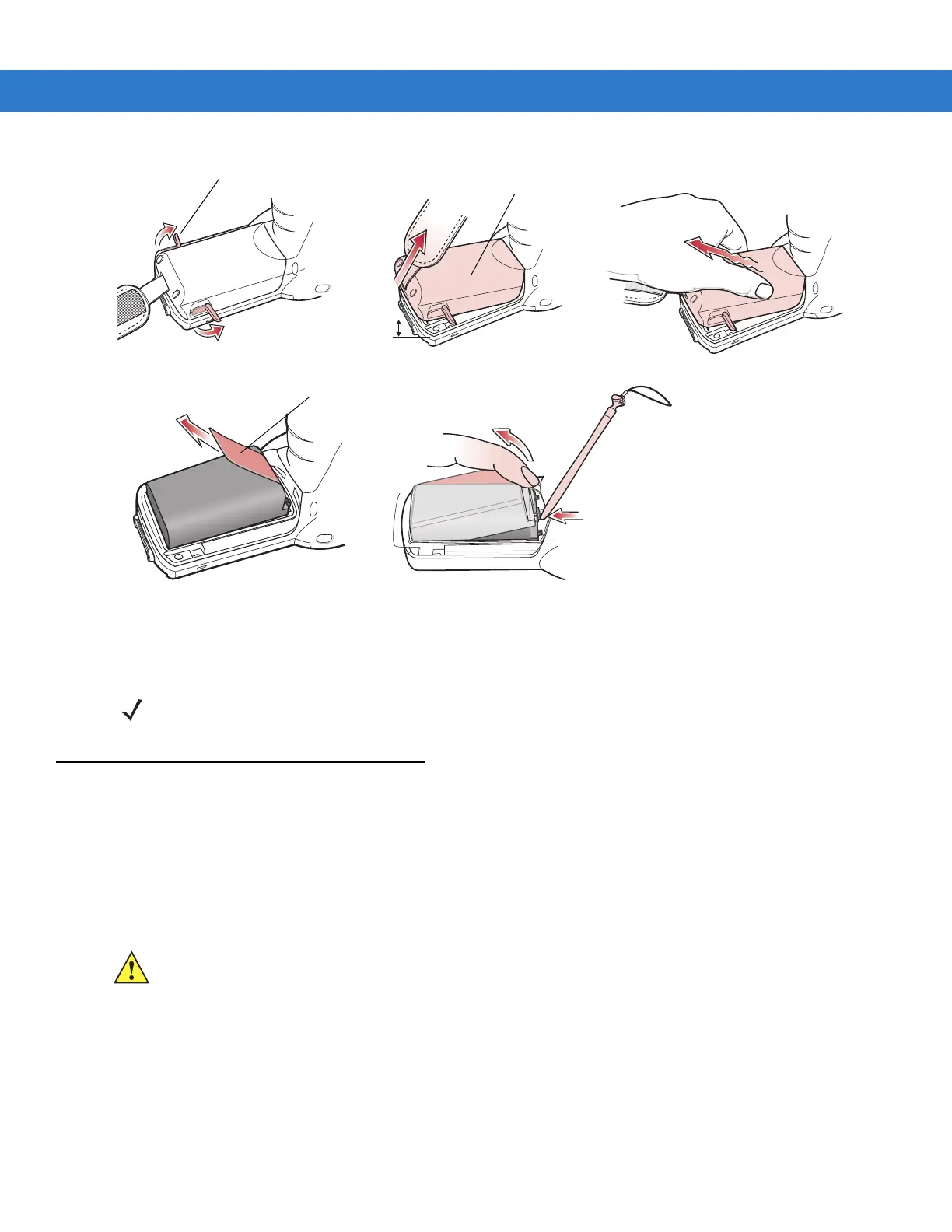

Figure 1-11 Main Battery Removal (MC3090G)
Strap/Door Assembly Removal and Replacement (MC3000S/R)
The Strap/Door Assembly consists of a hand strap and the battery door. There are two versions of this assembly,
one for the Standard Battery and one for the Extended Life Battery. Before removing the Strap/Door Assembly,
press the red Power button to turn off the screen and set the mobile computer to suspend mode.
To remove the Strap/Door Assembly:
1. Rotate the latches to the open position.
2. Lift the Hand Strap to lift the Strap/Door Assembly off, bottom first.
3. Use a #00 Phillips screwdriver to remove the screws.
4. Lift the mounting clip.
5. Slide the mounting clip out of the strap loop.
Reverse the procedure to replace the Strap/Door Assembly.
2
0.5 in.
(12.7 mm)
3
1
4
4
Strap/Door
Assembly
Latches
Battery Pull Tab
Battery with Pull Tab Battery without Pull Tab
NOTE The SD card holder is located under the battery. To install the SD card, see Secure Device Card (Windows CE
5.0 Only) on page 4-12.
CAUTION Do not lift up on the latches when removing the Strap/Door Assembly. Lift up on the Hand Strap only.
