Getting Started 1 - 13

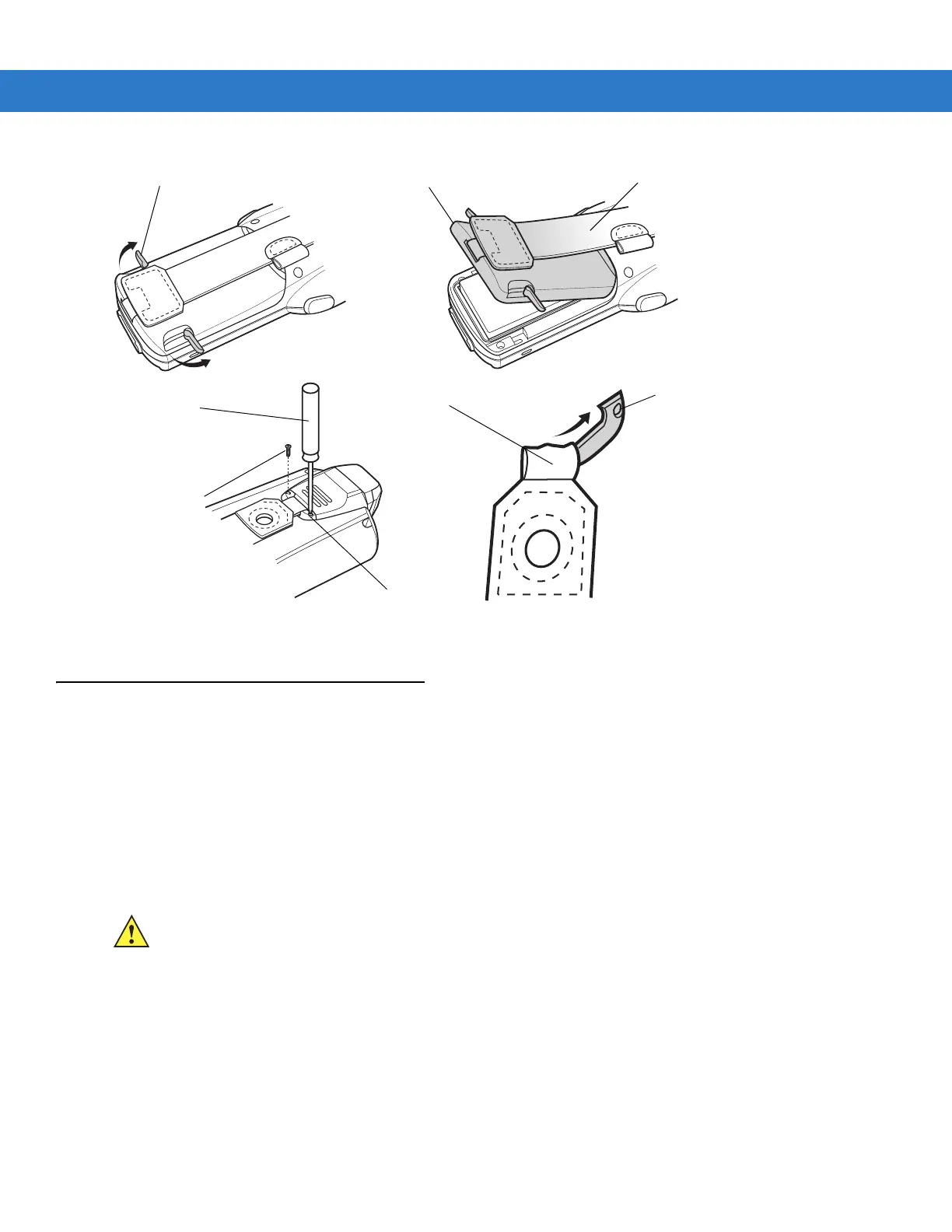

Figure 1-12
Strap/Door Removal and Replacement (MC3000S/R)
Strap/Door Assembly Removal and Replacement (MC3090G)
The Strap/Door Assembly consists of a hand strap and the battery door. Before removing the Strap/Door Assembly,
press the red Power button to turn off the screen and set the mobile computer to suspend mode.
To remove the Strap/Door Assembly:
1. Slip the button through the loop.
2. Remove loop section from handle.
3. Rotate the latches to the open position.
4. Lift the Hand Strap to lift the Strap/Door Assembly off, bottom first.
Reverse the procedure to replace the Strap/Door Assembly.
Strap/Door
Assembly
Latches
Screws
#00 Phillips
Screwdriver
Mounting
Clip
Strap Loop
Mounting
Clip
Hand Strap
CAUTION Do not lift up on the latches when removing the Strap/Door Assembly. Lift up on the Hand Strap only.
