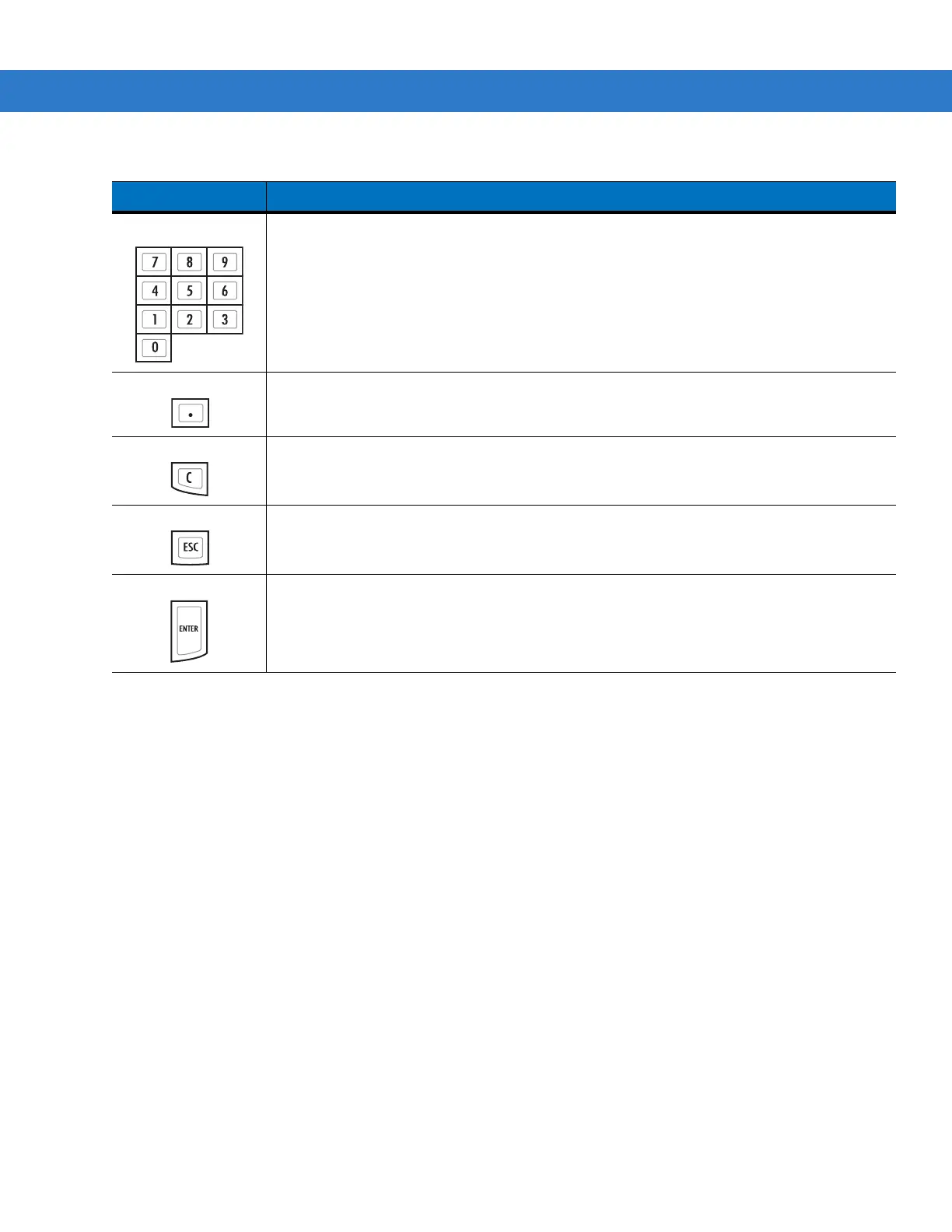

2 - 4
MC3000 User Guide
Numeric keys
Produces 0 - 9 numeri
c characters.
period
Produces a (.) per
iod.
C
Produces a backsp
ace.
ESC
Exits
the current operation.
ENTER
Executes a selected ite
m or function.
Produces a T
AB character when pressed af
ter the
Fn
key
.
T
able 2-2
20-Key Mechanical Keyp
ad Descriptions (Continued)
Key
Description
37
39
Table of Contents
Default Chapter
4
Patents
4
Revision History
5
Table of Contents
7
About this Guide
13
Introduction
13
Documentation Set
13
Configurations
14
Software Versions
14
Chapter Descriptions
17
Notational Conventions
17
Related Documents and Software
18
Service Information
18
Chapter 1 Getting Started
19
Introduction
19
Unpacking the Mobile Computer
19
Accessories
20
Parts
21
Rotating Scan Turret
22
Mobile Computer Startup
23
Install Main Battery
23
Battery Charging
25
Spare Battery Charging
27
Stylus
27
Starting the Mobile Computer
27
Calibration Screen
28
Waking the Mobile Computer
29
Main Battery Removal
29
Strap/Door Assembly Removal and Replacement (MC3000S/R)
30
Strap/Door Assembly Removal and Replacement (MC3090G)
31
Turning off the Radios
32
On Device with Windows CE 5.0 (OEM Version 01.15 or Lower)
32
WLAN Radio
32
Bluetooth Radio
33
On Device with Windows CE 5.0 (OEM Version 01.16 or Higher)
33
WLAN Radio
33
On Devices with Windows Mobile 6.1
33
Chapter 2 Operating the MC3000
35
Introduction
35
Power Button
35
Keypads
35
Keypad Special Functions
36
20-Key Mechanical Keypad
37
28-Key Keypad
39
38-Key Keypad
42
48-Key Keypad
45
Windows CE Demo Window
47
Windows CE Desktop
47
Windows CE Status Icons
48
Battery Unknown Icon
49
Start Button
49
Programs Menu
50
Keyboard Input Panel Button
50
Desktop Display Button
50
Task Manager and Properties
51
Task Manager
51
Properties
52
Windows Mobile 6.1 Today Screen
53
Windows Mobile 6.1 Status Icons
53
Status Bar
53
Command Bar
54
Speaker Icon
55
Battery Icons
55
Connectivity Icon
56
Time Icon
56
E-Mail Icon
57
Multiple Notification Icon
57
Locking the Mobile Computer (Windows Mobile 6.1 Only)
58
Entering Information
59
Entering Information Using Keypad
59
Entering Information Using the Keyboard Input Panel
59
Entering Data Via the Bar Code Scanner
59
Using a Bluetooth Headset
60
Data Capture
60
Laser Scanning
60
Scan LED Indicators
61
Scanning Considerations
61
Laser Decode Ranges
61
Imaging
63
Imager
63
Operational Modes
63
Aiming the Mobile Computer
64
Imager Decode Ranges
65
Direct Part Marking
67
Resetting the Mobile Computer
68
Windows CE Devices
68
Performing a Warm Boot
68
Performing a Cold Boot
68
Windows Mobile 6.1 Devices
69
Performing a Warm Boot
69
Performing a Cold Boot
69
Waking the Mobile Computer
69
File System Directory Structure
70
Connecting to the Internet on a Wireless LAN Network
70
Chapter 3 Using Bluetooth
73
Introduction
73
Security
74
Turning the Bluetooth Radio Mode on and off
74
Disabling Bluetooth
74
Enabling Bluetooth
75
Bluetooth Power States
75
Cold Boot
75
Warm Boot
75
Suspend
76
Resume
76
Bluetooth Profiles
76
Modes
77
Wizard Mode
77
Explorer Mode
79
Discovering Bluetooth Device(S)
80
Bonding with Discovered Device(S)
81
Renaming a Bonded Device
83
Deleting a Bonded Device
83
Accepting a Bond
84
File Transfer Services
86
Create New File or Folder
86
Delete File
87
Get File
87
Put File
87
Connect to Internet Using Access Point
87
Dial-Up Networking Services
87
Add a Dial-Up Entry
89
OBEX Object Push Services
90
Send a Picture
90
Headset Services
91
Serial Port Services
92
Personal Area Network Services
93
Bluetooth Settings
93
Device Info Tab
93
Services Tab
94
Dial-Up Networking Service
94
File Transfer Service
95
OBEX Object Push Service
96
Personal Area Networking Service
96
Serial Port Service
97
Headset Service
97
Security Tab
98
Discovery Tab
98
Virtual COM Port Tab
99
Miscellaneous Tab
100
Chapter 4 Accessories
101
Introduction
101
Cradles
101
Spare Battery Chargers
101
Cables
101
SD Card
102
Plastic Holster
102
Fabric Holster
102
Single Slot Serial/Usb Cradle
102
Battery Charging
102
LED Charge Indications
103
Four Slot Cradles
105
Battery Charging
105
LED Charge Indications
106
Power LED
106
Speed LED
106
Link LED
106
Four Slot Spare Battery Charger
107
Spare Battery Charging
107
LED Charge Indications
108
Cables
108
Battery Charging and Operating Power
109
LED Charge Indications
109
Universal Battery Charger (UBC) Adapter
110
Spare Battery Charging
110
UBC Adapter LED Charge Indications
110
Secure Device Card (Windows CE 5.0 Only)
112
Plastic Holster
113
Fabric Holster
115
Belt Clip
115
Shoulder Strap
116
Chapter 5 Maintenance and Troubleshooting
117
Introduction
117
Maintaining the Mobile Computer
117
Battery Safety Guidelines
117
Troubleshooting
118
Mobile Computer
118
Single Slot Serial/Usb Cradle
120
Four Slot Charge Only Cradle
121
Four Slot Ethernet Cradle
122
Four Slot Spare Battery Charger
122
UBC Adapter
123
Cables
124
Appendix A Technical Specifications
125
Mobile Computer and Accessory Technical Specifications
125
Appendix B Keypad Functions/Special Characters
129
Introduction
129
Keypads
129
Appendix C Regulatory
133
Introduction
133
Accessory Power Supply Regulatory Compliance
133
Glossary
135
Other manuals for Motorola MC3000
Operating And Installation Manual
88 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Motorola MC3000 and is the answer not in the manual?
Ask a question
Motorola MC3000 Specifications
General
Brand
Motorola
Model
MC3000
Category
Telephone
Language
English
Related product manuals
Motorola M802C
48 pages
Motorola M803C
48 pages
Motorola M804C
48 pages
Motorola ML25260
35 pages
Motorola ML25254
36 pages
Motorola moto e7 PLUS
208 pages
Motorola MOTOROKR T505
16 pages
Motorola moto g 5G PLUS
332 pages
Motorola Micro TAC Ultra Lite
44 pages
Motorola T325
110 pages
Motorola Roadster
108 pages
Motorola AX Series
59 pages
