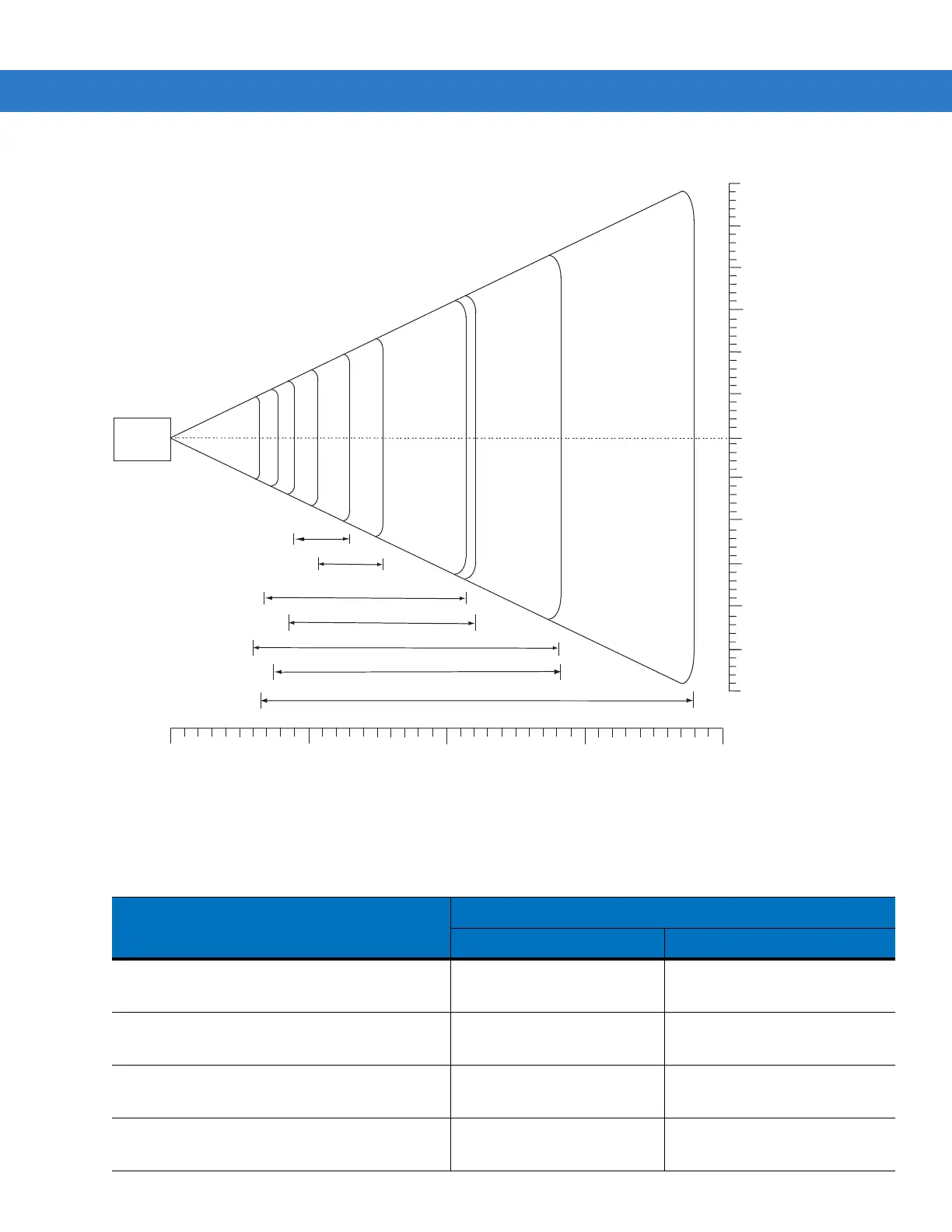

Figure 2-33 MC3000 Imager Decode Ranges
Table 2-11 MC3000 Imager Decode Ranges
Bar Code Density
Ranges
Near Far
5.0 mil 4.5 in
11.43 cm
6.5 in
16.51cm
7.5 mil 3.3 in
8.38 cm
10.7 in
27.18 cm
UPC A 2.5 in
6.35 cm
14.2 in
36.07cm
20 mil 2.8 in
7.11 cm
18.9 in
48.01 cm
in.
cm
MC3000
5 mil
6.5
PDF417 6.67 mil
7.5 mil
7.7
10.7
11.1
14.2
14.4
UPC A
PDF417 15 mil
18.9
20 mil
W
i
d
t
h
o
f
F
i
e
l
d
Depth of Field
Note: Typical performance at 73˚ F (23˚ C)
on high quality symbols.
