A - 6 MC55 Integrator Guide

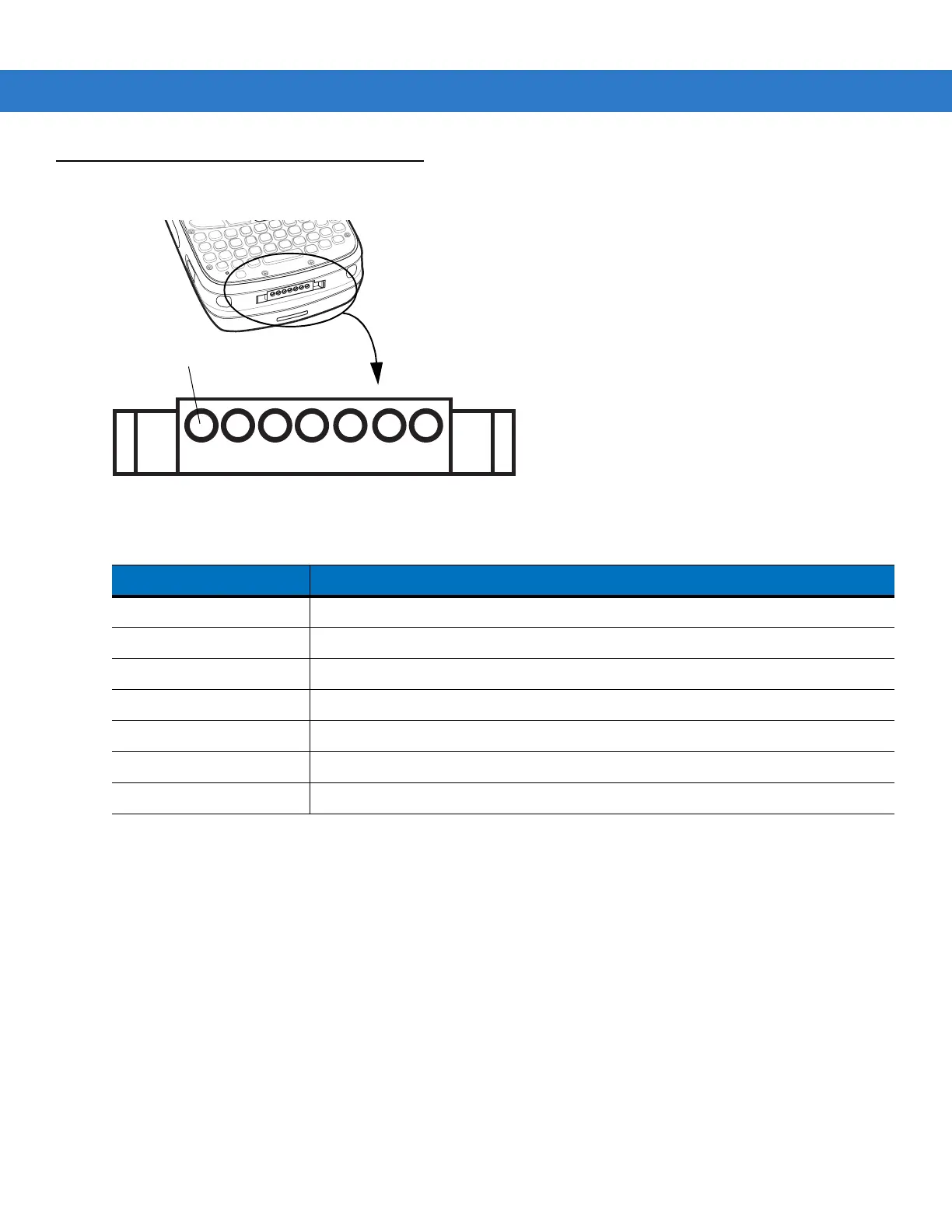

MC55 External Connector Pin-Outs
Figure A-1
External Connector
Table A-2
External Connector Pin-Outs
Pin Description
1 External Trigger/Cradle Detect
2 USB_ID
3 5.4 VDC
4 USB_VCC
5 USB_D-
6 USB_D+
7 Ground
Pin 1
