Motorola MC55 Integrator Guide

2 - 8 MC55 Integrator Guide

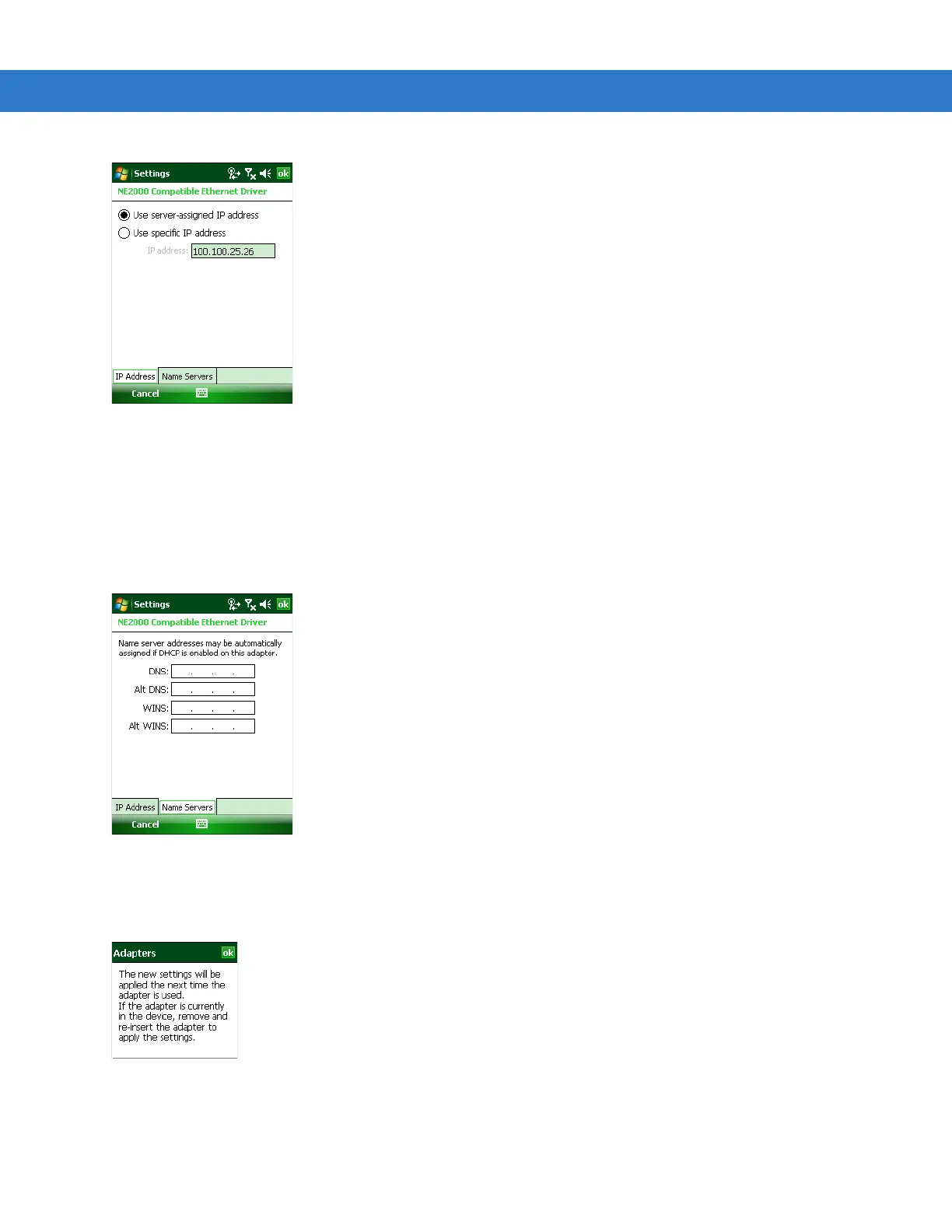

Figure 2-7 IP Address Tab
4. In the IP address window, select the appropriate radio button:
• Use server-assigned IP address
or
• Use specific IP address. Enter the IP address, Subnet mask, and Default gateway, as needed.
5. Tap the Name Servers tab.
Figure 2-8 Name Servers Tab
6. Enter the appropriate DNS, Alt DNS, WINS, and Alt WINS server addresses.
7. Tap ok.
Figure 2-9 Adapters Dialog Box
8. Tap ok to confirm the setup.
9. Tap ok to exit.

Motorola MC55 Specifications

General

Barcode Scanner	1D laser scanner or 2D imager
Operating System	Windows Mobile 6.1
Display	3.5 in. QVGA color display
Wireless Connectivity	Wi-Fi 802.11 a/b/g, Bluetooth 2.0
GPS	Optional
Expansion Slots	SD slot
Camera	Optional
Keyboard	QWERTY
