Motorola MC55 Integrator Guide

Accessories 2 - 27
5. Make sure that the suction bond is strong enough before proceeding to the next step.
6. Slide the MC55 into the cradle.

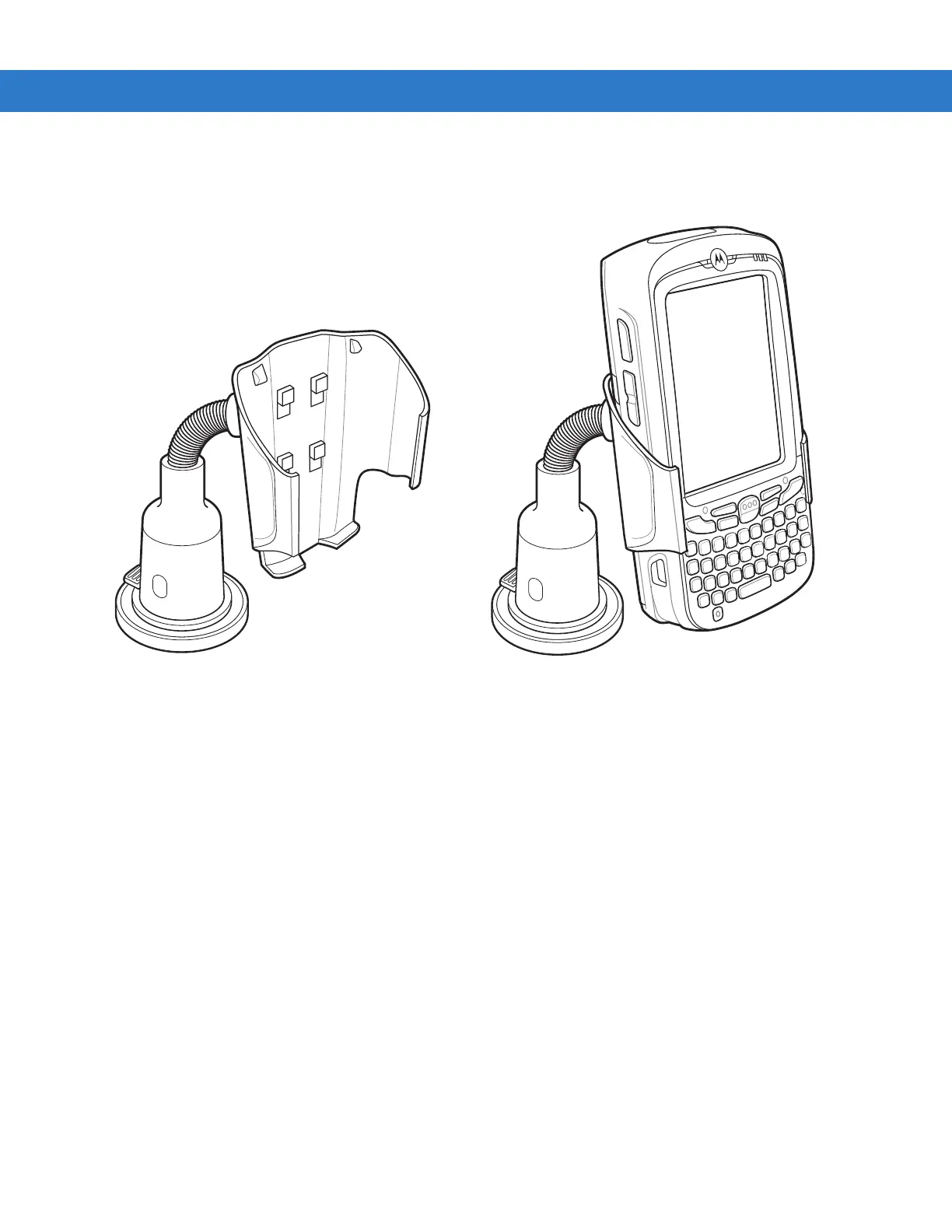

Figure 2-28 Vehicle Holder Mounted on Flat Surface
7. Connect the auto charger cable to the MC55 and slide the two locking tabs up to secure the cable cup to the
MC55.
8. Connect the other end to the cigarette lighter socket.
The LED indicator on the right side of the touch screen lights up orange during charging.

Motorola MC55 Specifications

General

Barcode Scanner	1D laser scanner or 2D imager
Operating System	Windows Mobile 6.1
Display	3.5 in. QVGA color display
Wireless Connectivity	Wi-Fi 802.11 a/b/g, Bluetooth 2.0
GPS	Optional
Expansion Slots	SD slot
Camera	Optional
Keyboard	QWERTY
