Section 2: Taking a Look at the MW800
This chapter identifies the external components of each part of the MW800 and
provides a brief functional description.
CPU Box
The front side of the CPU box allows user interface with Power button, PC and radio
SIM cards..

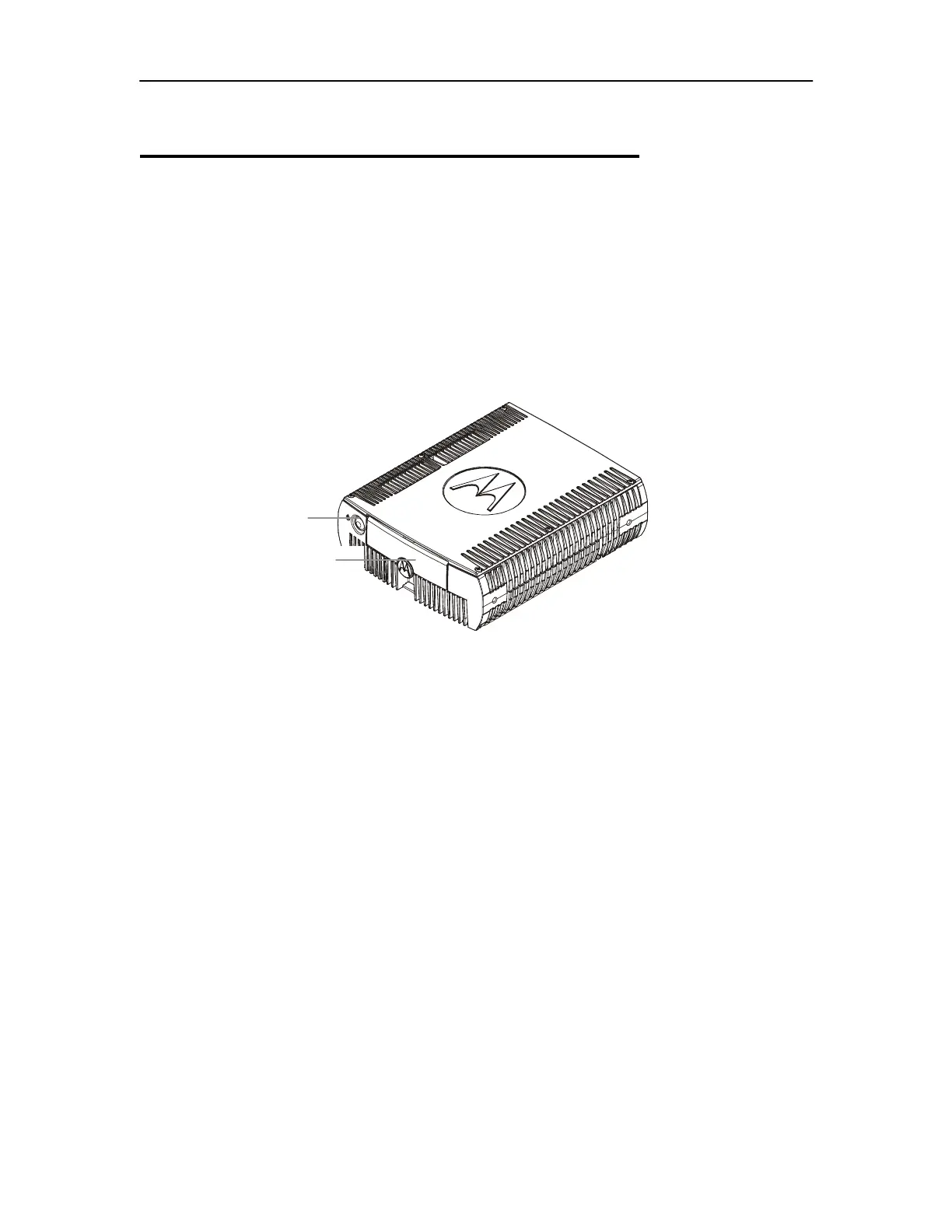

Front View
Figure 1. Front View
Power Button Turns the MW800 power ON and OFF. Note that the main
power switch on the rear CPU panel must be switched on
before using the Power button.
Personal Card slot A Personal Card (PC) slot enhances the CPU box
performances by enabling the connection of a variety of
personal cards that can be used as storage devices,
modems, etc. The card slot is completely sealed when the
cover is closed.
SIM Card slot Accepts the SIM card of the internal WWAN radio. The
slot is fully sealed when the cover is closed.
Power
PC & SIM
Card slots
