MW800 User’s Guide 15
Speakers The speakers (two in 12.1”, one in 8.4” display) are used
for audio and alert signaling.
NOTE: Adjust speaker volume with the Volume Up/Down
buttons or with the Volume Control program. The Volume
Control program can be found on the Windows task bar
(speaker icon).
Function Buttons The 8 Function buttons (6 for 8.4”) facilitate specific
operations. The function of each button is set via a pre-
installed software application
Emergency Button Use this button to signal an emergency event to software
emergency application, installed in the workstation. The
Emergency button becomes functional as soon as the
operating system is running.
Touch Panel The MW800 display is sealed against moisture and has a
dirt resistant touch panel, which can be activated with
either a gloved finger or a stylus pen.
CAUTION: Re-calibration is required when you see a
discrepancy between the touched and displayed positions.
Refer to your system administrator for help.
Bottom-side Components
Display Power
Cable
CPU-Display
Sig
al Cable
USB Port 2
USB Port 1

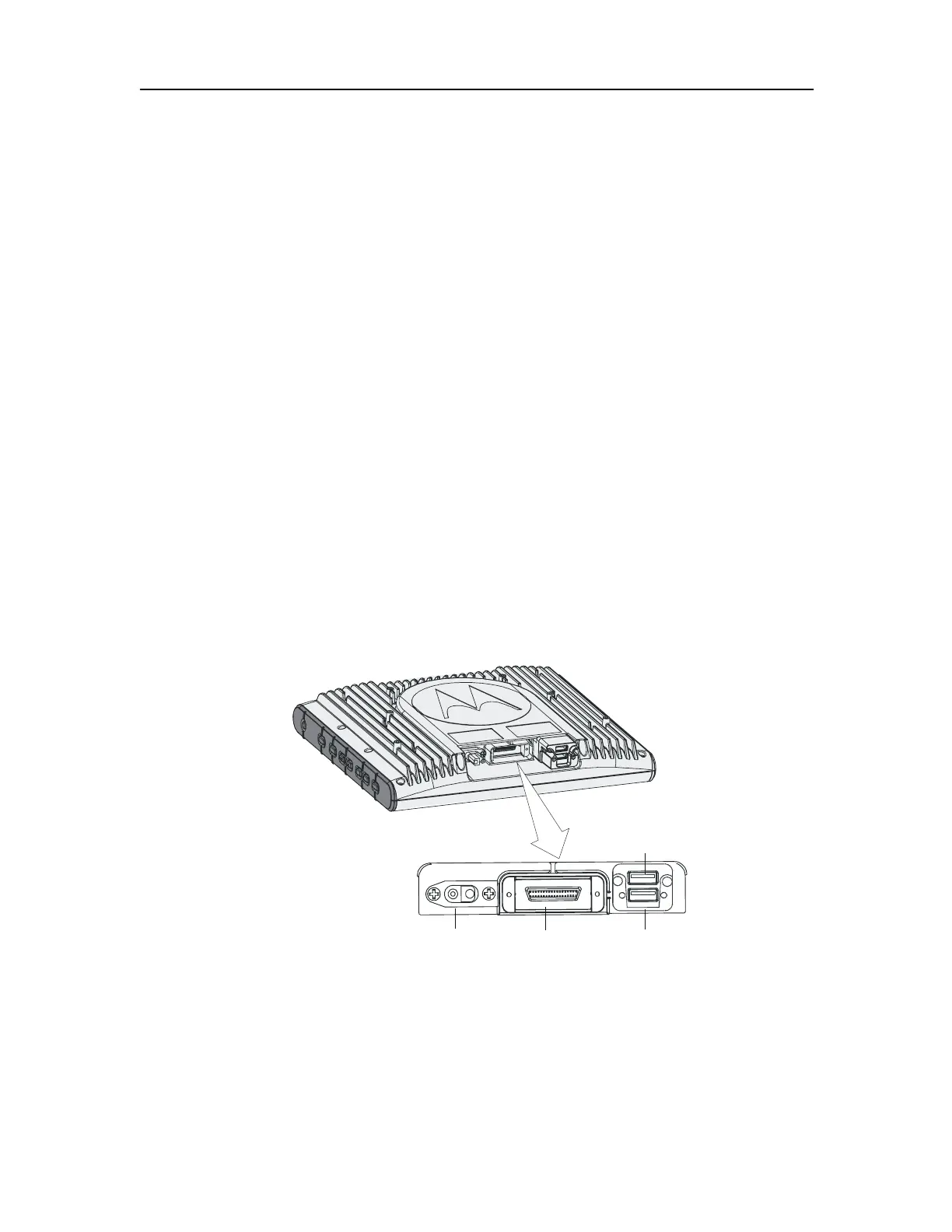

Figure 8. 12.1” Display Bottom View
