Disassembly And Reassembly Procedures: Radio Disassembly – Detailed 5-9
5. Once the battery door is removed, remove the battery from its battery compartment as shown
in Figure 5-7. To remove the battery, grasp the battery grove as the bottom of the battery and
lift it up.
NOTE: Only battery PMNN4468 can be used for this radio.

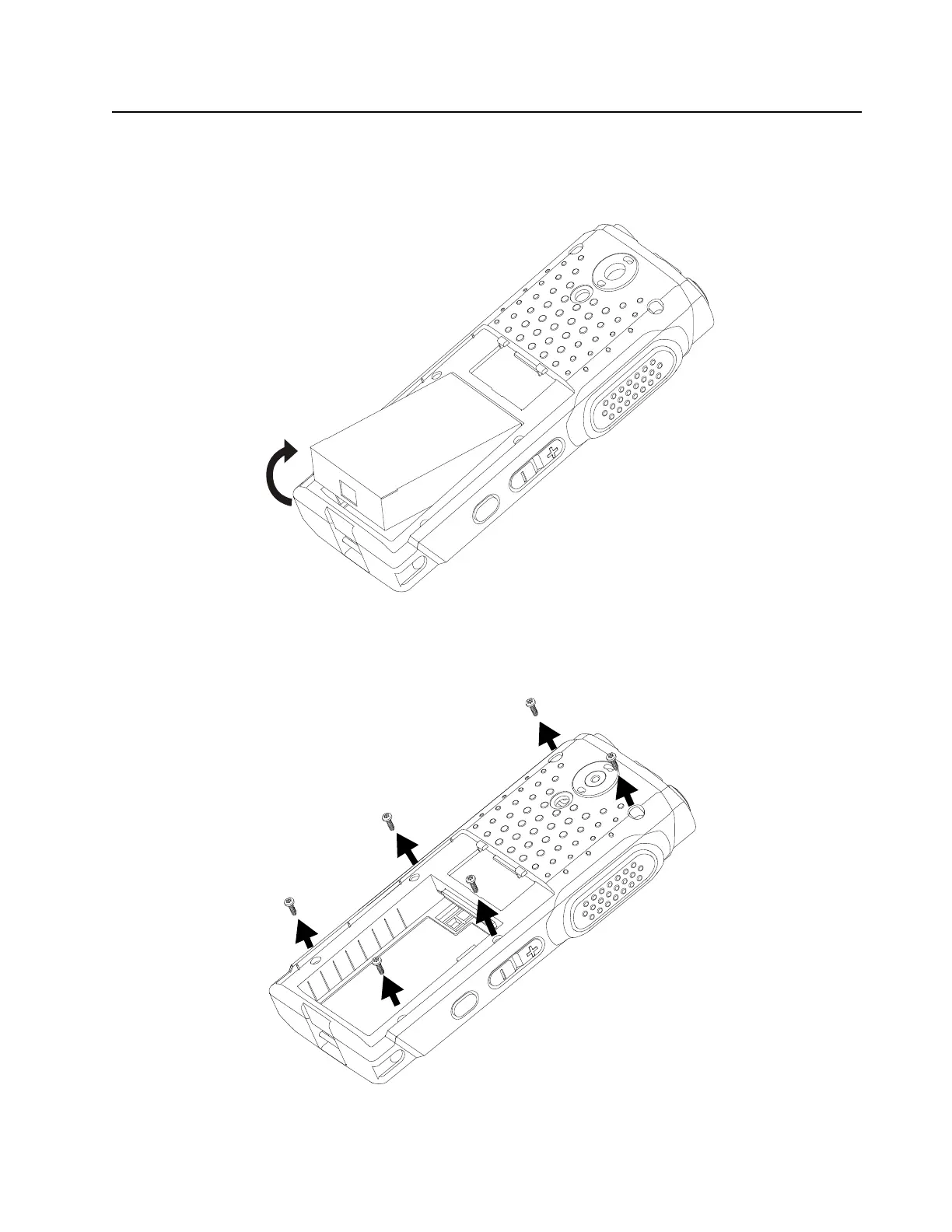

Figure 5-7. Battery Removal
6. Remove the screws by using T06 Torx Plus screwdriver as shown in Figure 5-8.
Figure 5-8. Screw Removal
