5-12 Disassembly And Reassembly Procedures: Radio Disassembly – Detailed
3. Detach the Audio Jack, Speaker, Micro USB, Microphone Flex and Display Flex from the
main PCB, using plastic tweezers in the direction indicated in Figure 5-13.

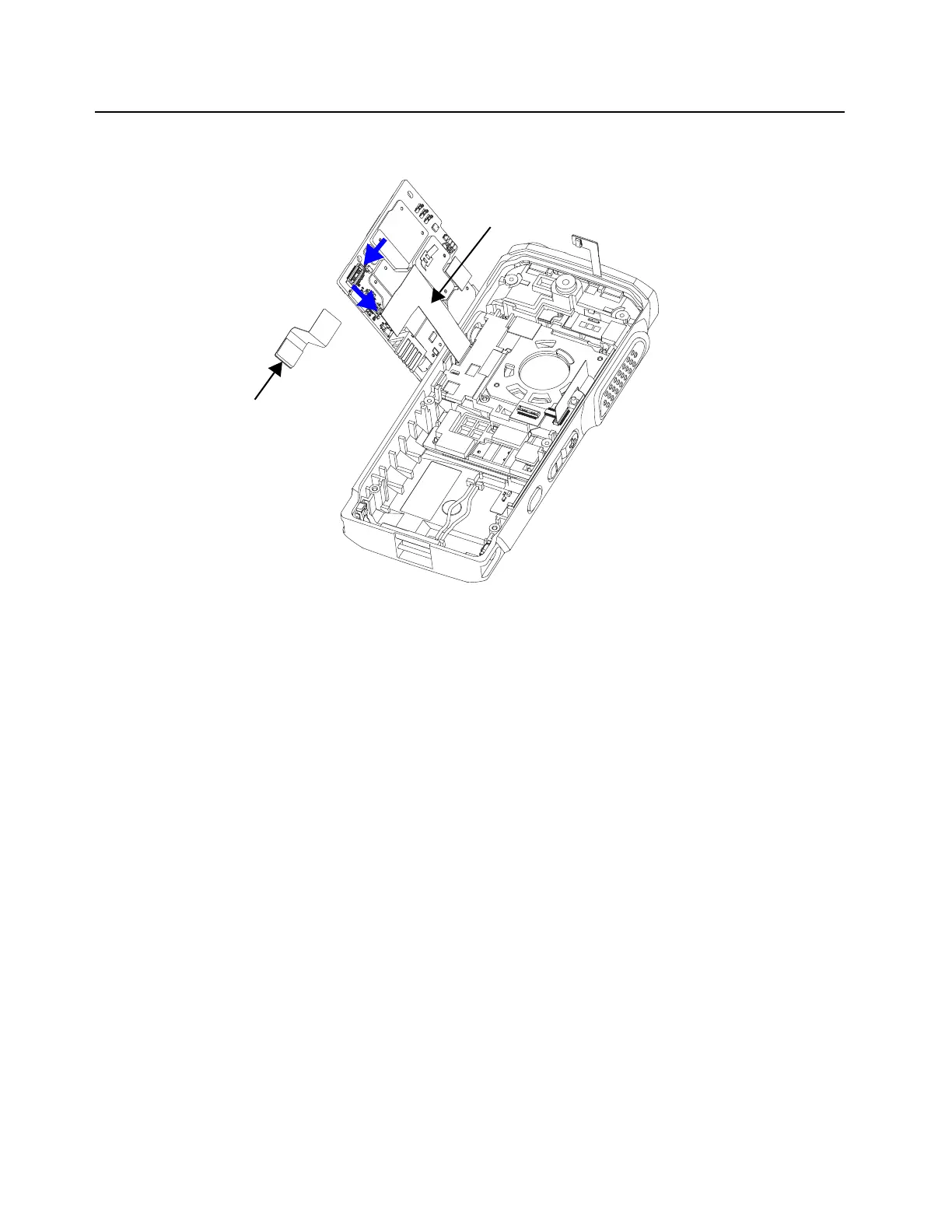

Figure 5-13. Audio Jack, Speaker, Micro USB, Microphone Flex, and Display Flex Disassembly
Display Flex Disassembly
Audio Jack, Speaker,
Micro USB and Microphone
Flex
Final Draft
