5-22 Disassembly And Reassembly Procedures: Radio Reassembly – Detailed
2. Screw in all 6 screws to the back housing using T06 Torx Plus screwdriver as shown in Figure
5-31.

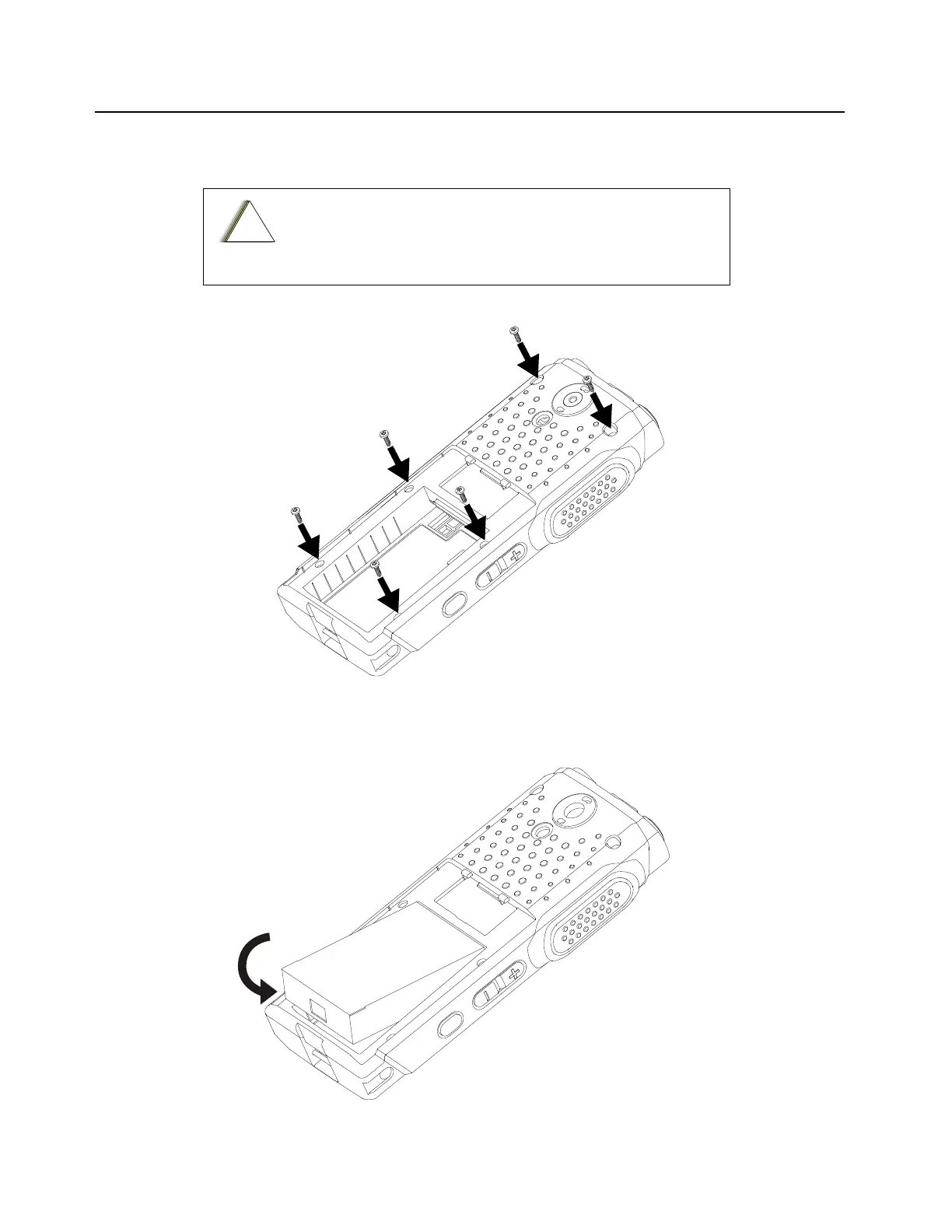

Figure 5-31. Screw Reassembly
3. Insert the battery as shown in Figure 5-32.
NOTE: Only battery PMNN4468 can be used for this radio.
Figure 5-32. Battery Reassembly
Do not over torque the screws. Please refer to Table 5-4 for
screws torque specifications.
