6881039B25 January 08, 2002 21
Level III Service Manual Disassembly
Removing and Replacing the Rear Transceiver Housing
1. Remove the battery cover, battery, SIM, and rear housing cover as described
in the procedures.
2. Using the Torx driver and a T-6 bit, remove the two screws that secure the rear
housing to the rear housing as shown in Figure 8.
3. Using the disassembly tool, disengage the six latches that secure the rear
transceiver housing to the front transceiver housing as shown in Figure 8.
4. Carefully separate the rear transceiver housing from the front transceiver
housing observing the volume button set into the side of the rear transceiver
housing.
5. To replace, align the rear transceiver housing with the front transceiver
housing.
6. Carefully press the rear transceiver housing into the front transceiver housing
until the six latches are engaged.
7. Operate the volume key to insure proper function.
8. Insert and tighten the 2 screws. Do not overtighten.
9. Replace the rear housing cover, the SIM, battery, and battery cover as de-
scribed in the procedures.
011101-o

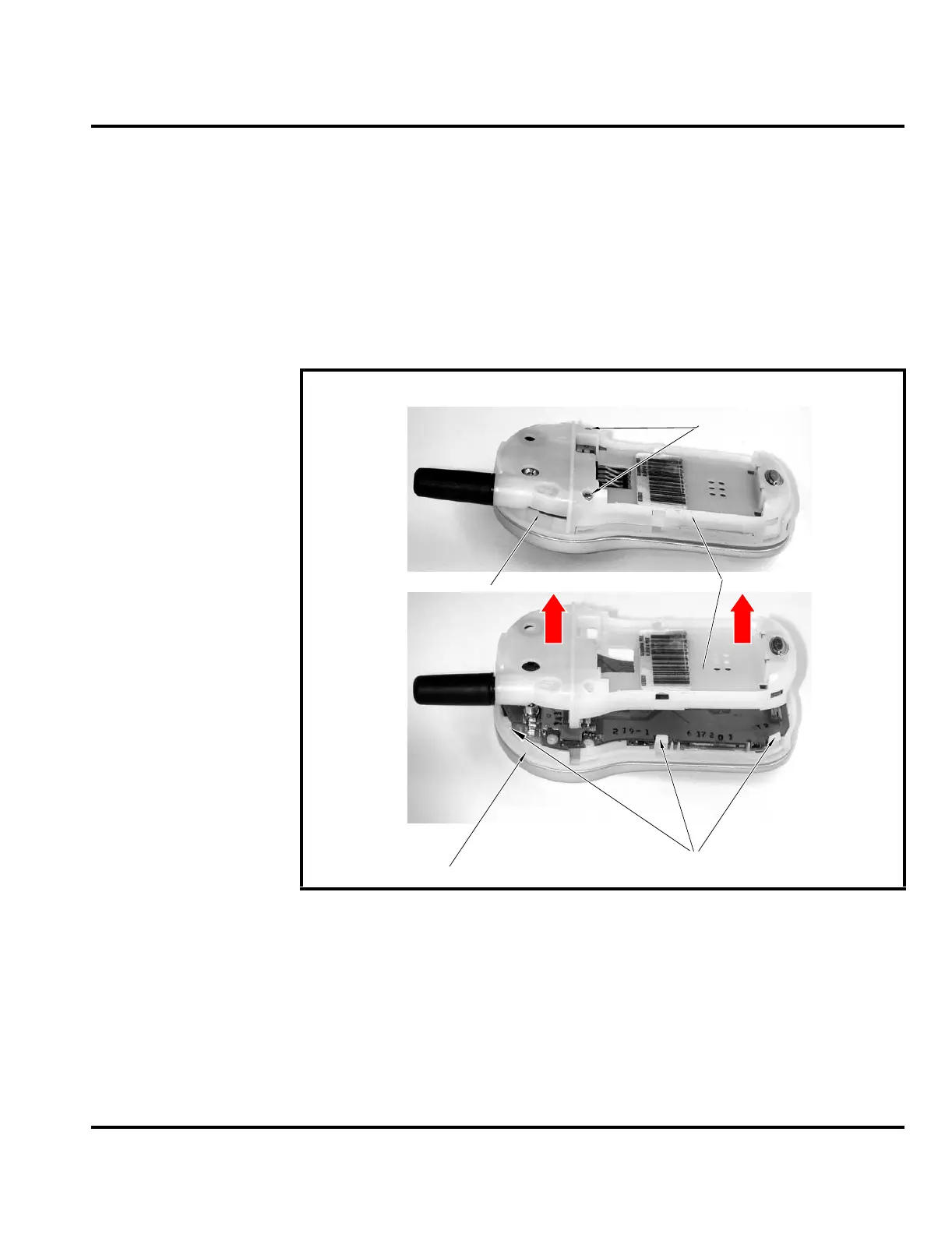

Figure 8. Rear Transceiver Housing Removal
3 LATCHES
EACH SIDE
FRONT HOUSING
REAR HOUSING
FRONT HOUSING
SCREWS
