Disassembly
Removing and Replacing the Antenna
1. Remove the battery cover, and battery as described in the procedures.
2. Holding the rear housing in one hand, unscrew the antenna bushing from the
rear housing by turning the antenna bushing in a counter-clockwise direction
until the antenna and bushing are clear of the housing as shown in Figure 9.
3. To replace, align the antenna and bushing with the rear housing.
4. Screw the antenna and bushing into place until the antenna bushing is flush
with the rear housing.
5. Replace the battery, and battery cover as described in the procedures.
011566-o

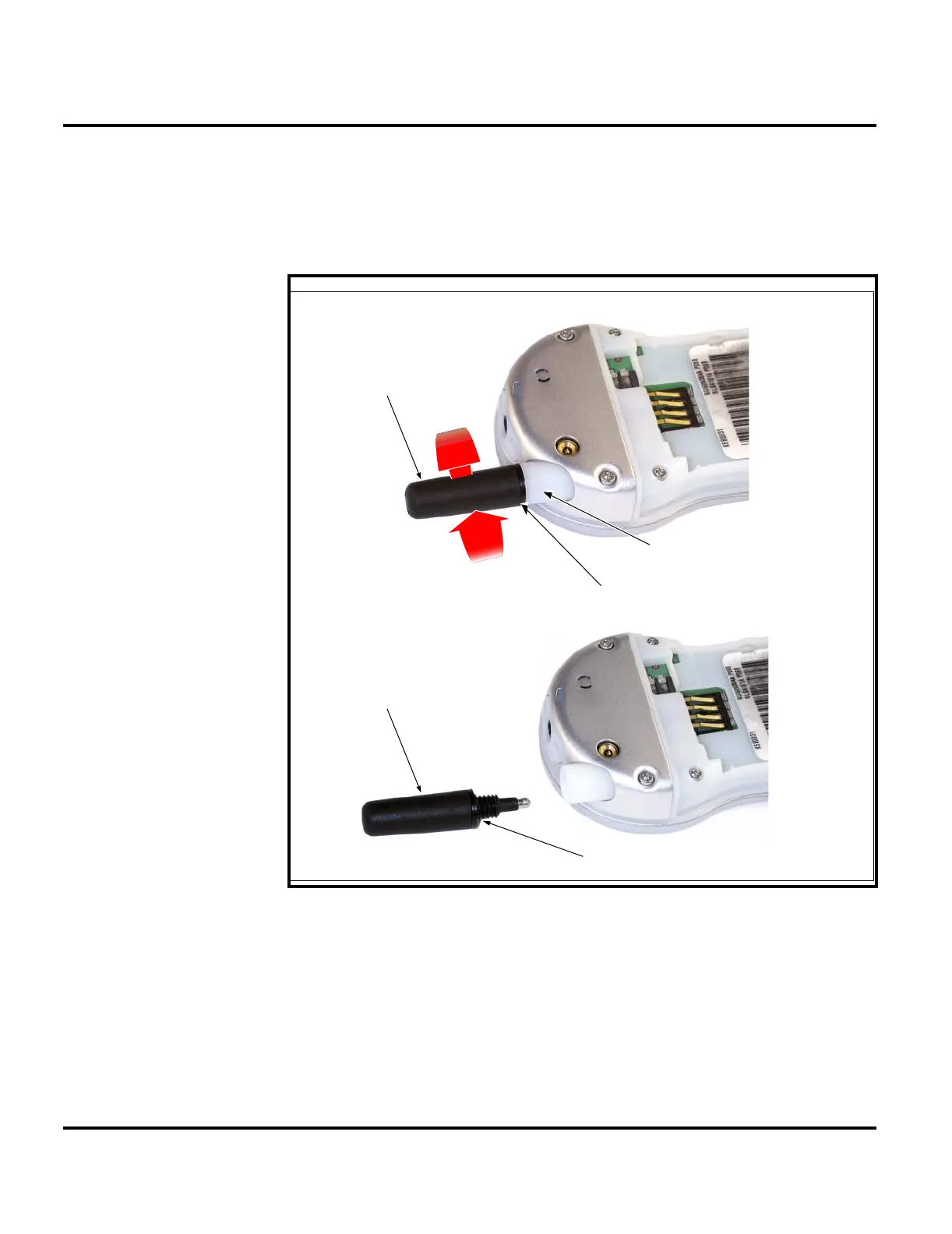

Figure 9. Removing the Antenna
REAR HOUSING
ANTENNA BUSHING
ANTENNA BUSHING
ANTENNA
ANTENNA
