6816985H01-F February 14, 2012
VHF Troubleshooting Waveforms: PP23 Preselector 1 Output 7.1-25
7.1.24PP23 Preselector 1 Output
Probe point: C1.

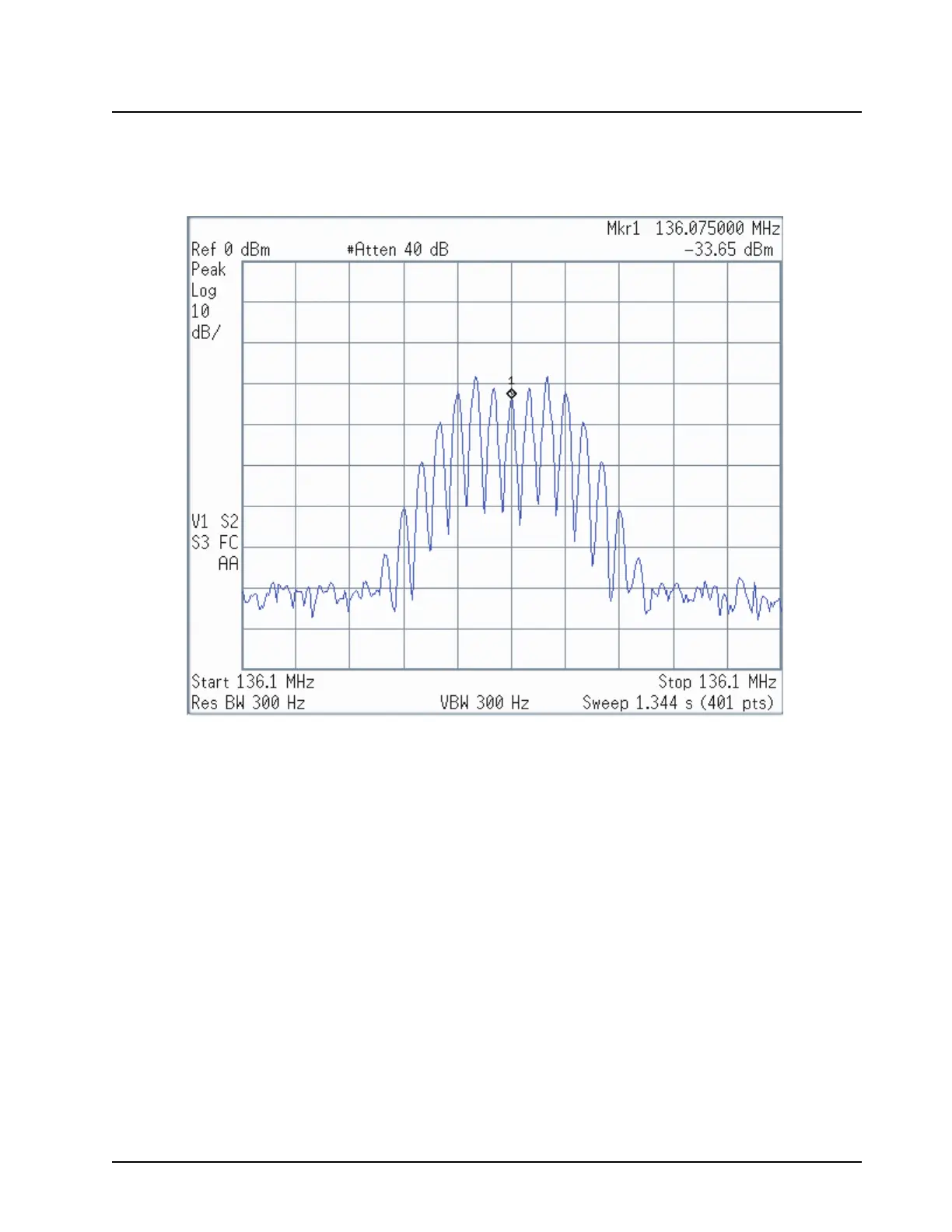

Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
