Troubleshooting Waveforms: PP35 Universal Chip Select 7.5-45
7.5.44PP35 Universal Chip Select

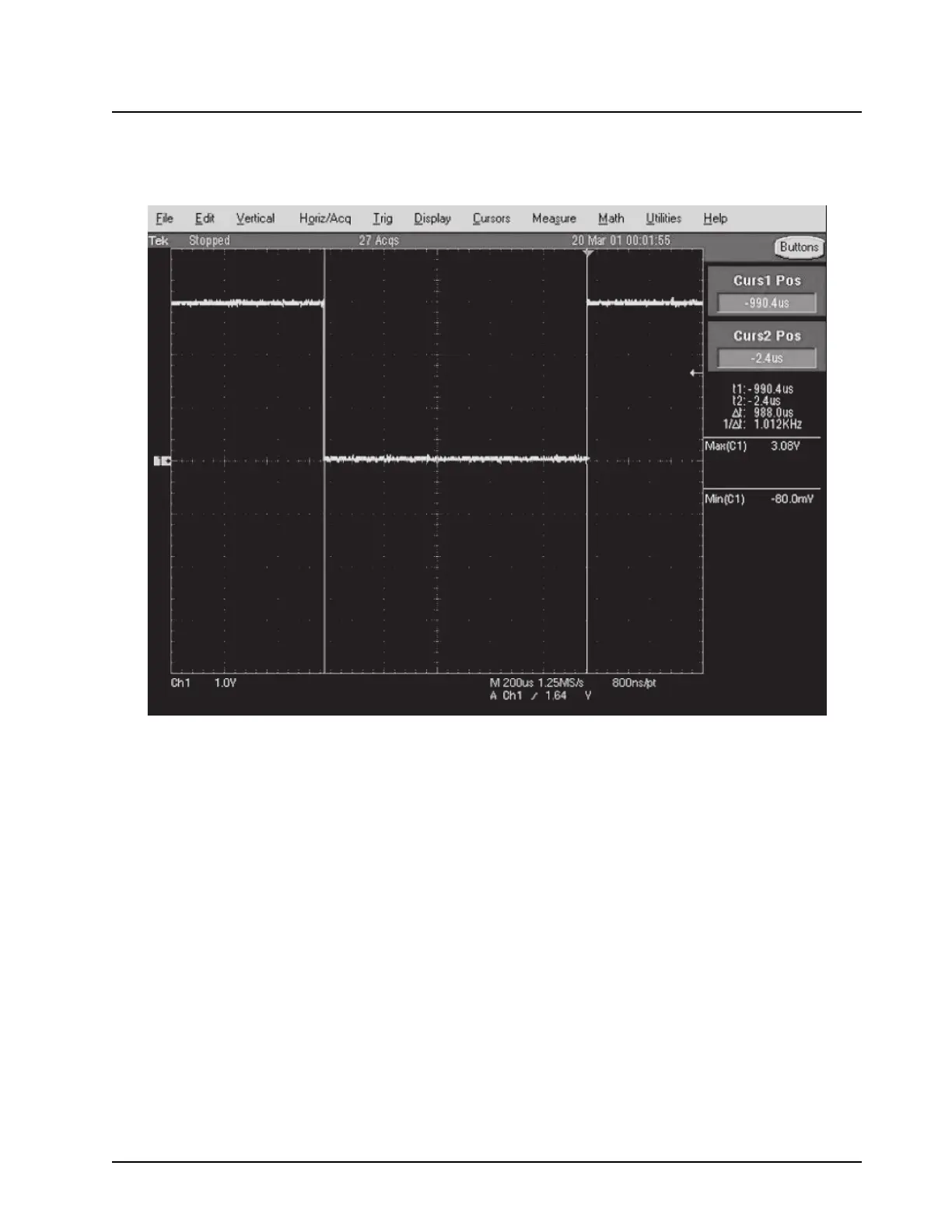

Probe Point: U102, pin 29 (located under shield).
