Motorola XTS 2000 - Page 399

6816985H01-F February 14, 2012

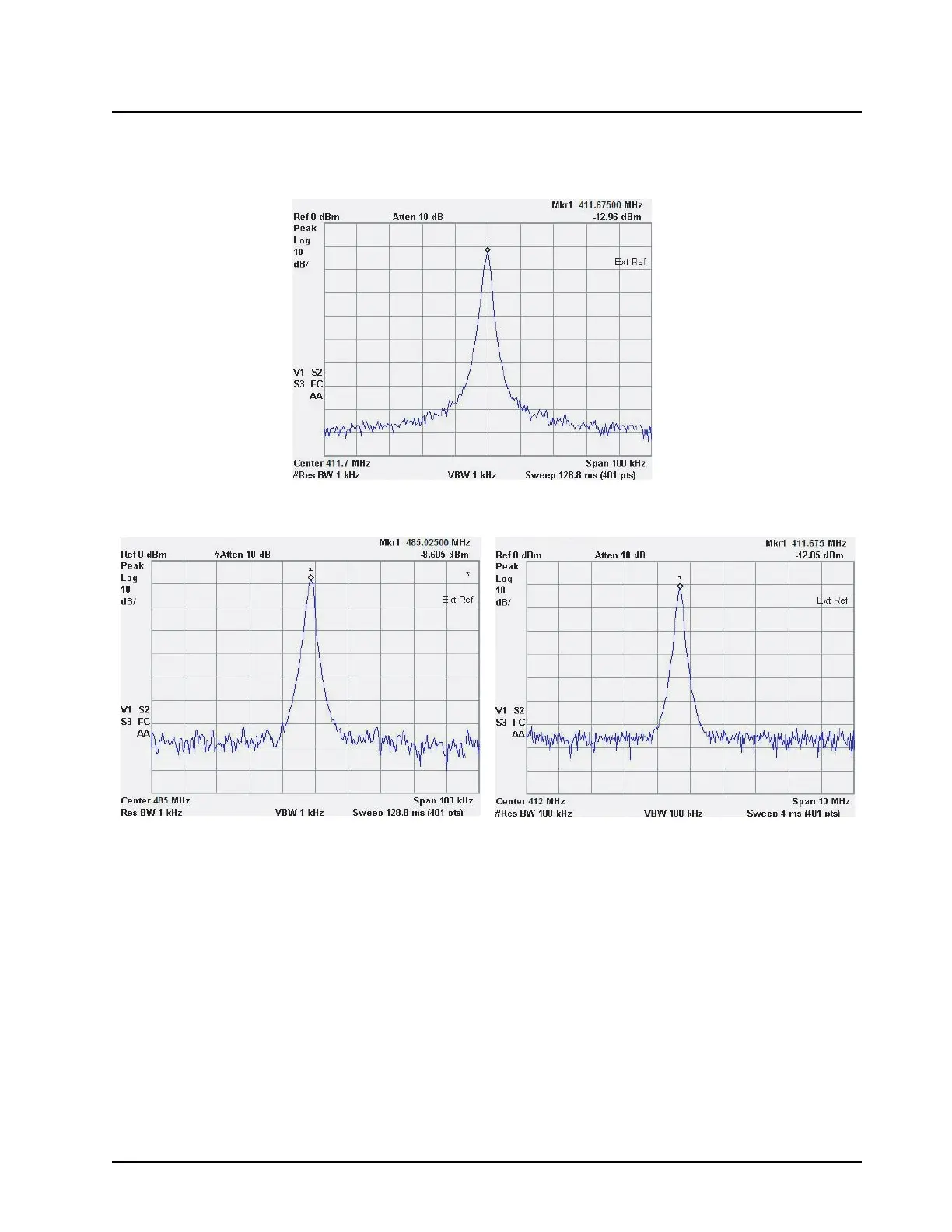

UHF2 Troubleshooting Waveforms: PP15 VCO Output 7.3-19
7.3.18PP15 VCO Output
Probe point:TP298 for LO Output
TP299 for TX Output
TP23 for Preselector Output (located under shield).
Probe point: C261 (located under shield).
