6 Wiring of the Device
Rev. 08/2018 33
Unused inputs and outputs
Please note that the terminals for the analog inputs and outputs not
selected in the MICT must remain unoccupied.

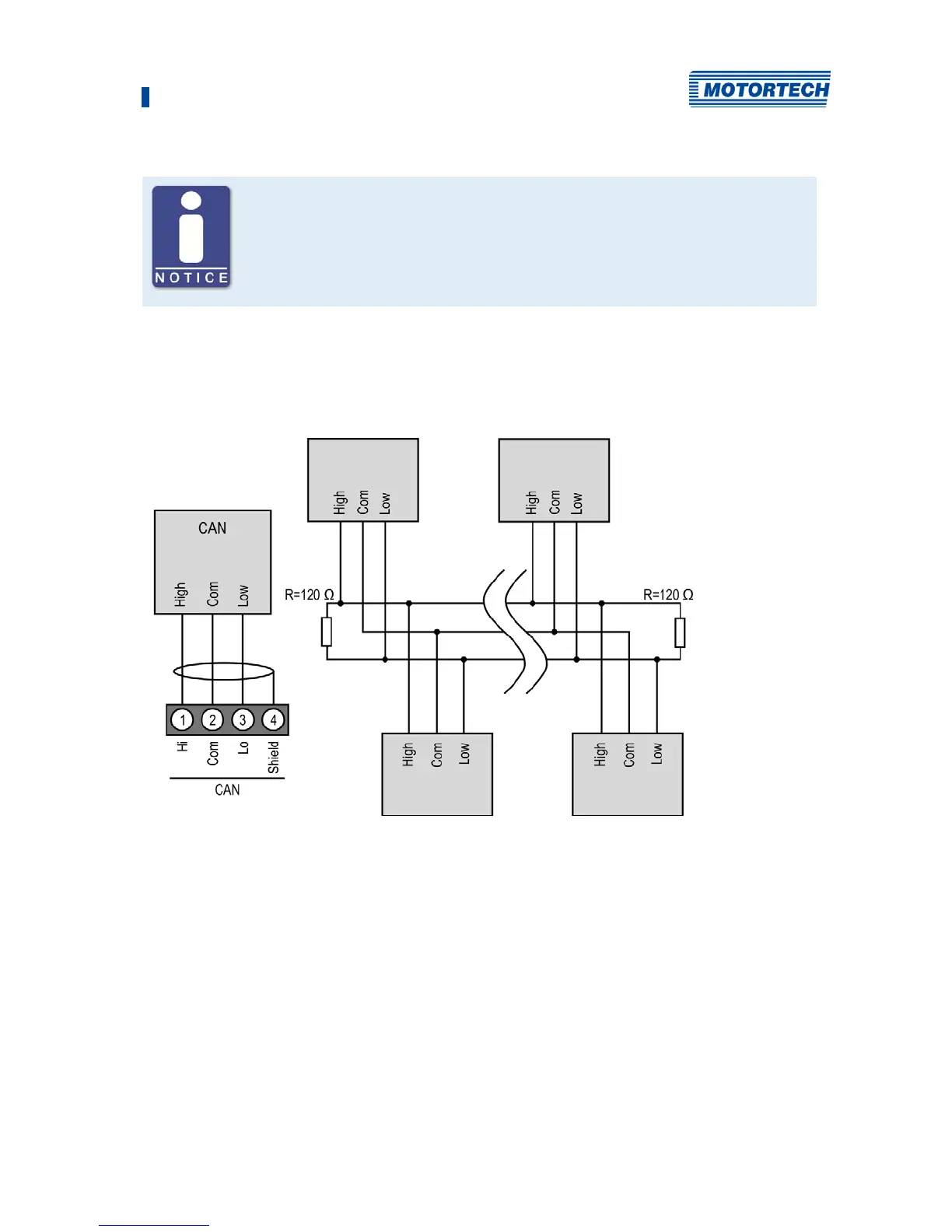

6.6 Wiring CAN Bus
The CAN bus interface is wired using the 4-pole plug.
First device Second-to-last device
Second device Last device
