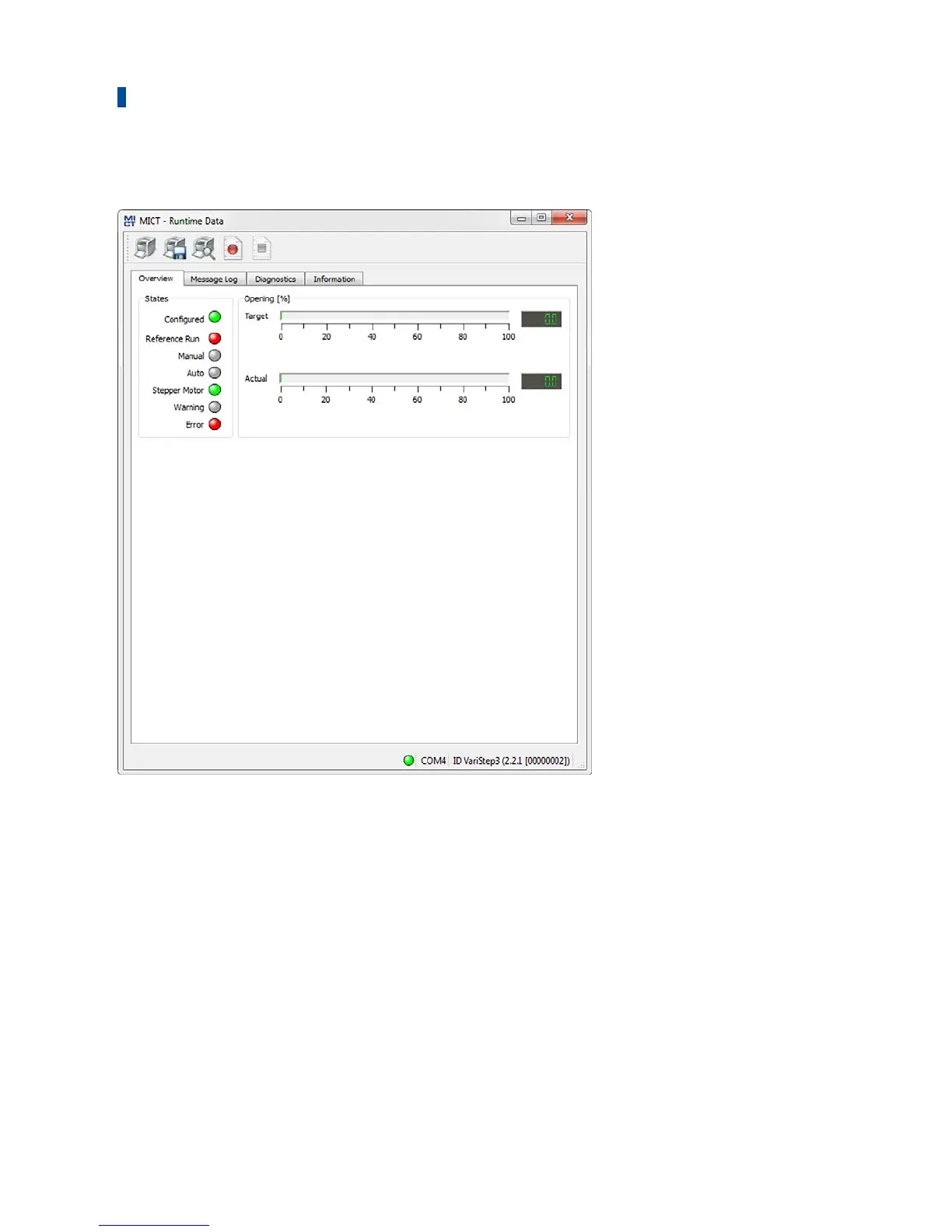

8.10.1 Runtime Data – Overview
In this screen, you can find the following information:
Configured
The status display indicates if the stepper motor driver has a valid configuration:
– green: The stepper motor driver has a valid configuration.
– red: The stepper motor driver has no or an invalid configuration. An existing configuration
can for example become invalid during a firmware update. A valid configuration must be
downloaded to the stepper motor driver in order to make the device operational.
Reference Run
The status display provides information on the reference run:
– green: The reference run was completed successfully.
– yellow: The reference run is being carried out.
– red: Errors occurred during the reference run. The reference point was not found.
