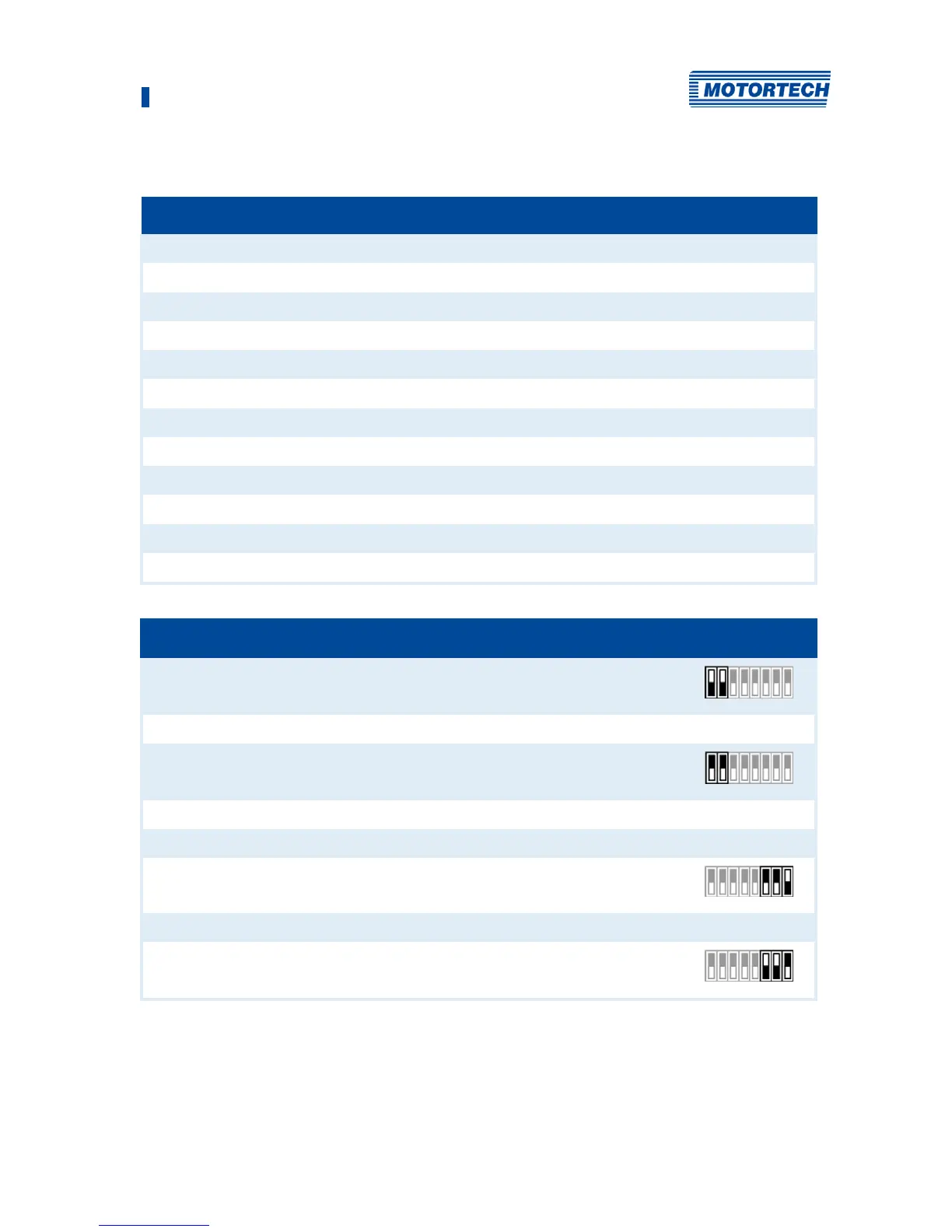

Connector Binary Outputs
Pin VariStep3 VariFuel2 stepper motor driver
Error + 11 Connector 4, Pin 32
Error - 12 Connector 4, Pin 31
Close + 13 –
Close - 14 –
Open + 15 –
Open - 16 –
Pos. 1 + 17 Connector 3, Pin 26
Pos. 1 - 18 Connector 3, Pin 25
Pos. 2 + 19 Connector 3, Pin 28
Pos. 2 - 20 Connector 3, Pin 27
Offline + 21 Connector 3, Pin 30
Offline - 22 Connector 3, Pin 29
Connector Analog Inputs/Outputs
Pin VariStep3 VariFuel2 stepper motor driver DIL1 *
Position U in + 23 Connector 2, Pin 17
Position GND 24 Connector 2, Pin 18
Position I in + 25 Connector 2, Pin 17
Position I in - 26 Connector 2, Pin 18
Shield 27 –
Position U out + 28 Connector 2, Pin 19
Position GND 29 Connector 2, Pin 20
Position I out + 30 Connector 2, Pin 19
