Rev 7 19 (EN)
The 1-meter extra wire serves for later corrections and has got to
be cut off when the installation is successful and all positions are
final.
At the end of the scheduled working time or when your lawnmower battery voltage is
low
, the
robotic mower
will automatically return to the charging station by following
the boundary wire anti-clockwise. After a full recharge, your robot will start again with its
next cutting sequence (if within your set worktime window).
Pay attention to protect the extension cable!

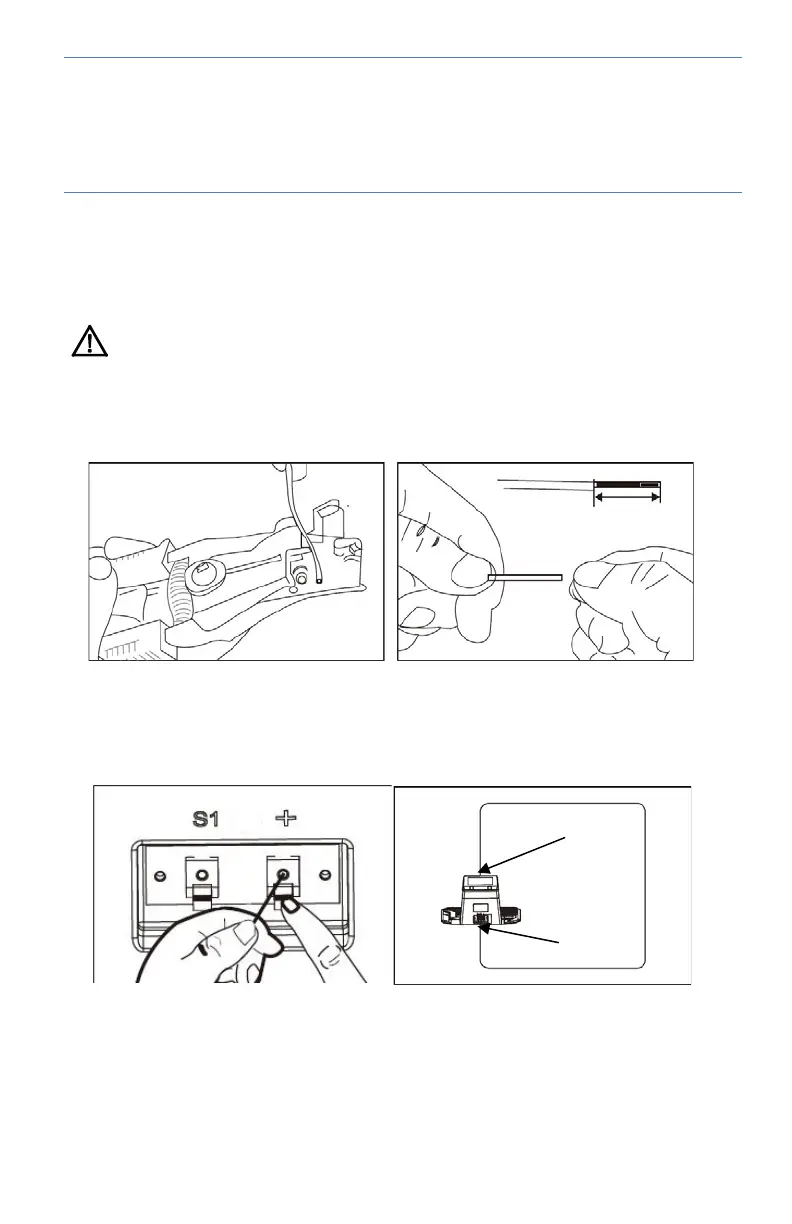

Preparing boundary wire for charging station
After laying the boundary wire you need a wire stripper to skin the wire. Expose 10 –
15 mm of the metal threads for connection to the charging station.
Connect the charging station to the boundary wire
The wire leading you to the front of the charging station must be put underneath that,
using the cable holders shaped on the station’s underside. Connect it to the connector
marked "+", and connect the rear boundary wire to the connector marked S1.
Connect the charging station to the charger
1. Before connecting the charger station to the electric power supply, make sure that the
mains supply voltage is 100 - 240V ~ 50Hz.
2. Plug charger directly into an electrical outlet. Do not abuse the cord. Never carry
anything by or pull on the power cord.
3. Do not operate a damaged charger. Replace damaged cords or charger immediately at
This wire end connects to “+”
This wire end connects to “S1”
