- 12 -

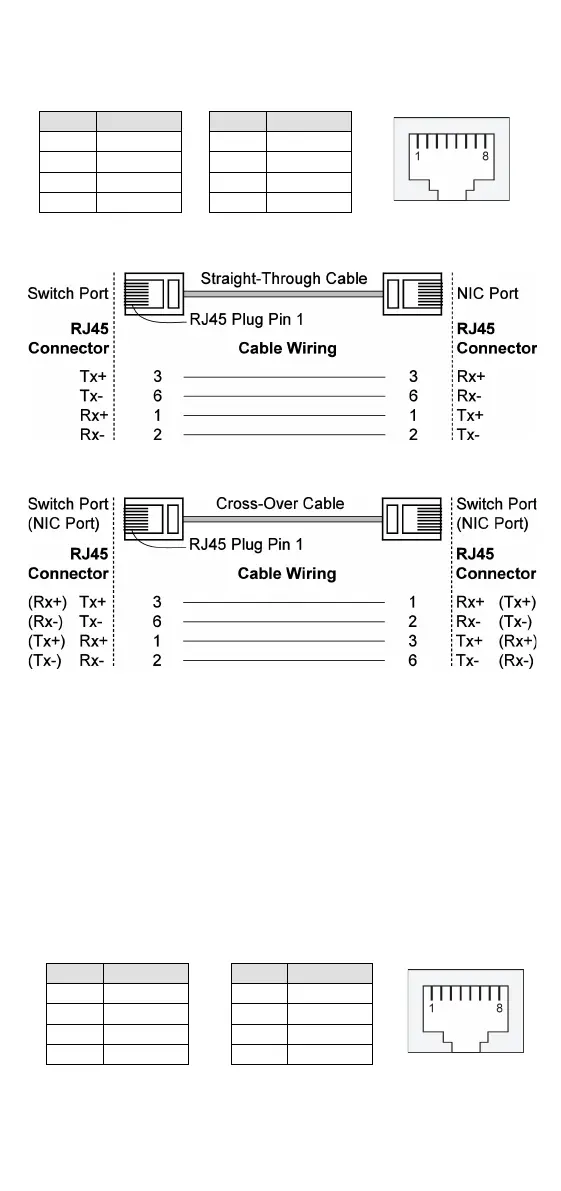

10/100Base T(x) RJ45 Pinouts
RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable Wiring
RJ45 (8-pin) to RJ45 (8-pin) Cross-over Cable Wiring
10/100/1000BaseT(X) Ethernet Port Connection
The 10/100/1000BaseT(X) ports located on Moxa EtherDevice Switch’s
front panel are used to connect to Ethernet-enabled devices. Most users
will choose to configure these ports for Auto MDI/MDI-X mode, in which
case the port’s pinouts are adjusted automatically depending on the
type of Ethernet cable used (straight-through or cross-over), and the
type of device (NIC-type or HUB/Switch-type) connected to the port.
In the following section, we give pinouts for both MDI (NIC-type) ports
and MDI-X (HUB/Switch-type) ports. We also give cable wiring
diagrams for straight-through and cross-over Ethernet cables.
10/100Base T(x) RJ45 Pinouts
