Moxa Technologies EDS-2010-ML Series User Manual

- 15 -
connected. If neither of these two conditions occurs, the Fault circuit
will be closed.
NOTE
The DIP settings will be activated when the device is powered
on the next time.

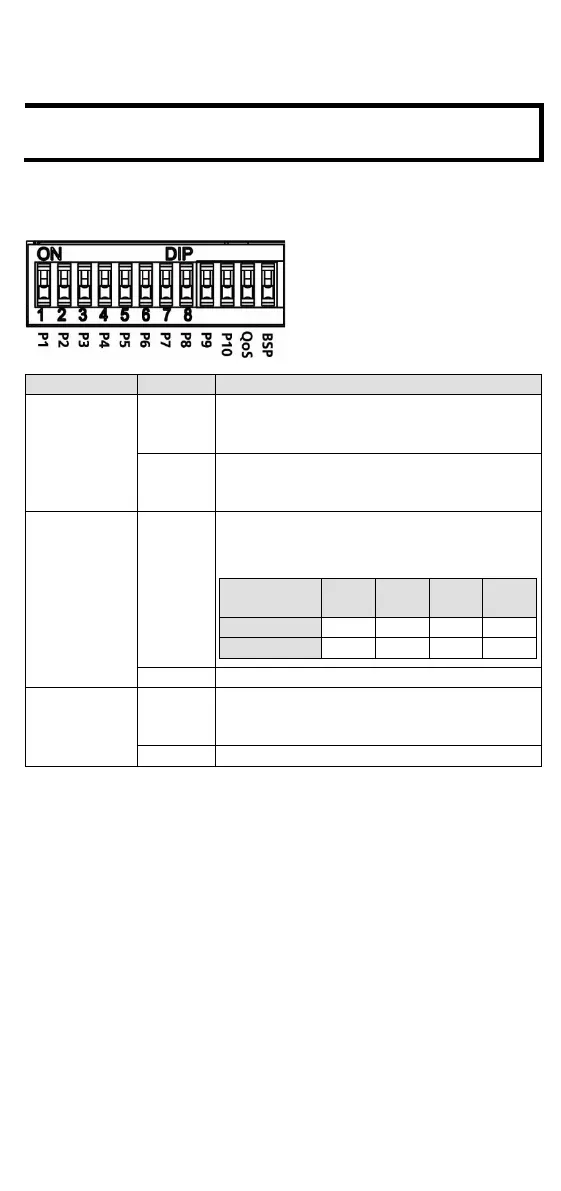

DIP Switch Settings
EDS-2010-ML Series DIP Switches
DIP Switch
Setting
Description
Port Alarm
Function
P1 to P8
P9 is G1
P10 is G2
ON
Enables the corresponding PORT Alarm. If
the port’s link fails, the relay will form an
open circuit and the fault LED will light up.
OFF
Disables the corresponding PORT Alarm. The
relay will form a closed circuit and the Fault
LED will never light up.
Quality of
Service (QoS)
ON Enable the Quality of Service to handle
packet priorities in four WRR queues.
QoS priority mapping matrix in each queue
QoS 3bit
priority
7, 6 5, 4 3, 2 1, 0
Queues
3
2
1
0
WRR
8
4
2
1
OFF
Disable the Quality of Service.
Broadcast
Storm
Protection
(BSP)
ON
Enables broadcast storm protection (at a
maximum of 2000 broadcast packets per
second) in the EDS switch for all ports.
OFF
Disables the broadcast storm protection.
