Moxa Technologies EDS-2010-ML Series - Din Rail Mounting

- 6 -

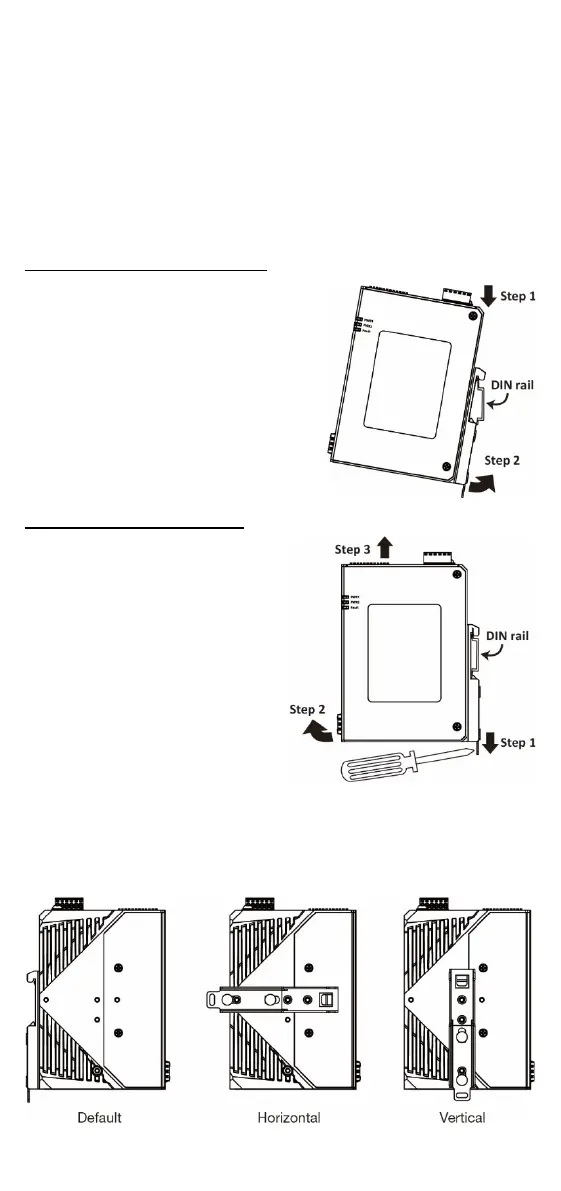

DIN-rail Mounting
There are two options for DIN-rail mounting that can be used on an
EDS. Option 1 is the default type when the product is shipped.
Option 1 (Default):
When shipped, the metal DIN-rail mounting kit is fixed to the back
panel of the EDS. Mount the EDS on the corrosion-free mounting rail
that adheres to the EN 60715 standard.
Suggested Installation Method
STEP 1:
Insert the upper lip of the DIN
-
rail kit into the mounting rail.
S
TEP 2:
Press the device towards the
mounting rail until it snaps into
place.
Suggested Removal Method
STEP 1:
Pull down the latch on the DIN
-
rail kit with a screwdriver.
STEP 2:
Slightly pull the device forward
and lift up to remove it from the
mounting rail.
Option 2 (when side cabling is needed):
The metal DIN-rail mounting kit can be fixed to the side panel (mold
side) of the EDS (horizontal or vertical). Mount the EDS on the
corrosion-free mounting rail that adheres to the EN 60715 standard.
